USC LPH800 - Treater Control Panel

Page 73
LPH800 TREATER

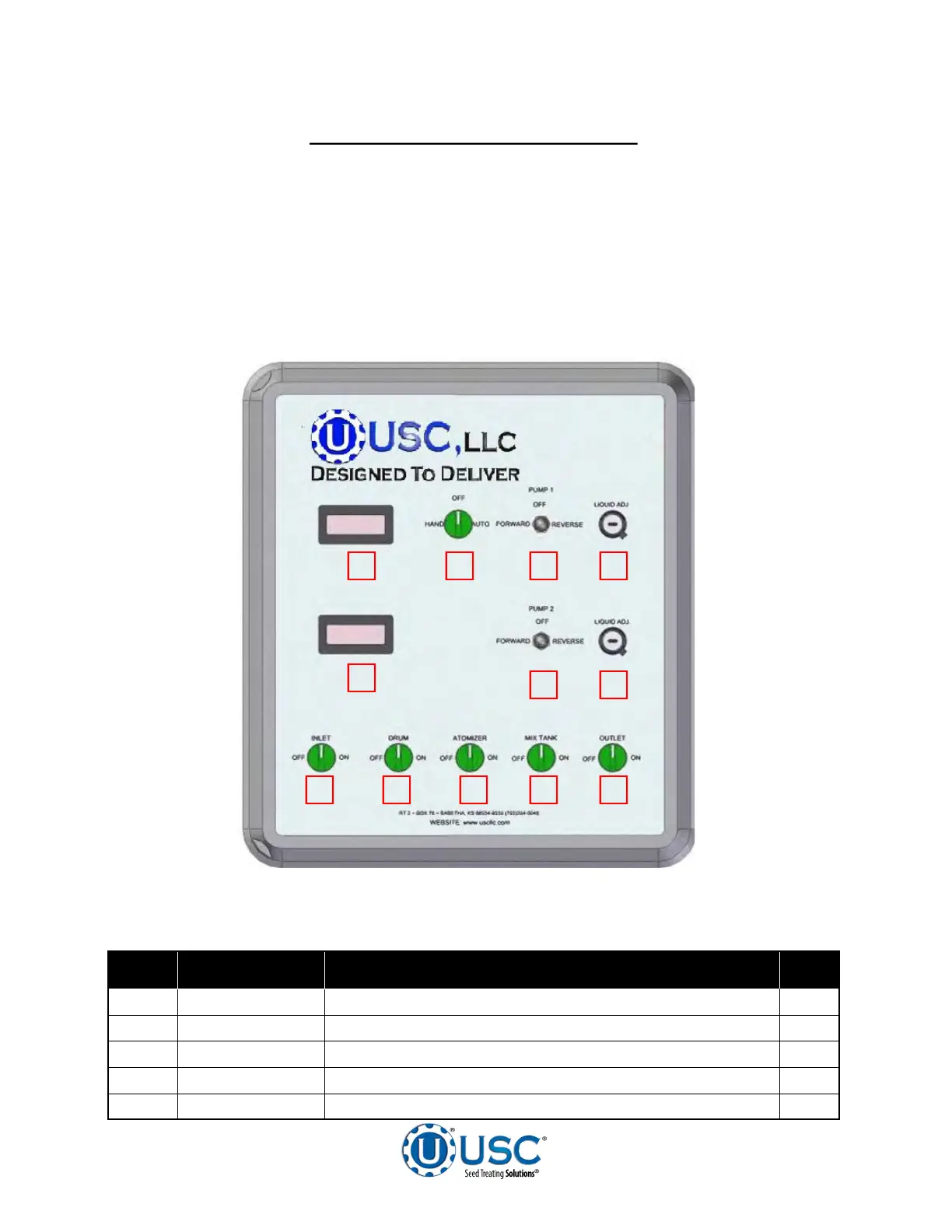

LPH800 TREATER CONTROL PANEL
An electrical wiring diagram is located in the control panel of the seed treater at
the time of shipment. The diagram located in the panel shows the exact electrical
schematic for that model of seed treater. If you have any questions about the
diagram, contact USC at (785) 431-7900.
1
1 2 3 4
4
1
3
5 5 5 5 5
Item # Part #
Descripon Qty
1
03-01-0008
DC VOLTMETER 2
2
03-10-0008 3-POSITION PANEL SWITCH, MAINTAIN 1
3
03-10-0001 FORWARD-BRAKE-REVERSE SWITCH 2
4
07-01-0001 COUNTING DIAL 2
5
03-10-0055 3-POSITION PANEL SWITCH, SPRING RETURN TO CENTER 5
