DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
05/15/2015
TITLE
SIZE
D
DWG NO
File Name:13-05-0039B = Source Valve-Filter.dft
SHEET 1 OF 1
REVISION HISTORY
REV DESCRIPTION DATE APPROVED
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
± 1/32
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DO NOT SCALE DRAWING
U S C,L L C.
Sabetha, Kansas 66534 USA
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
13-05-0039

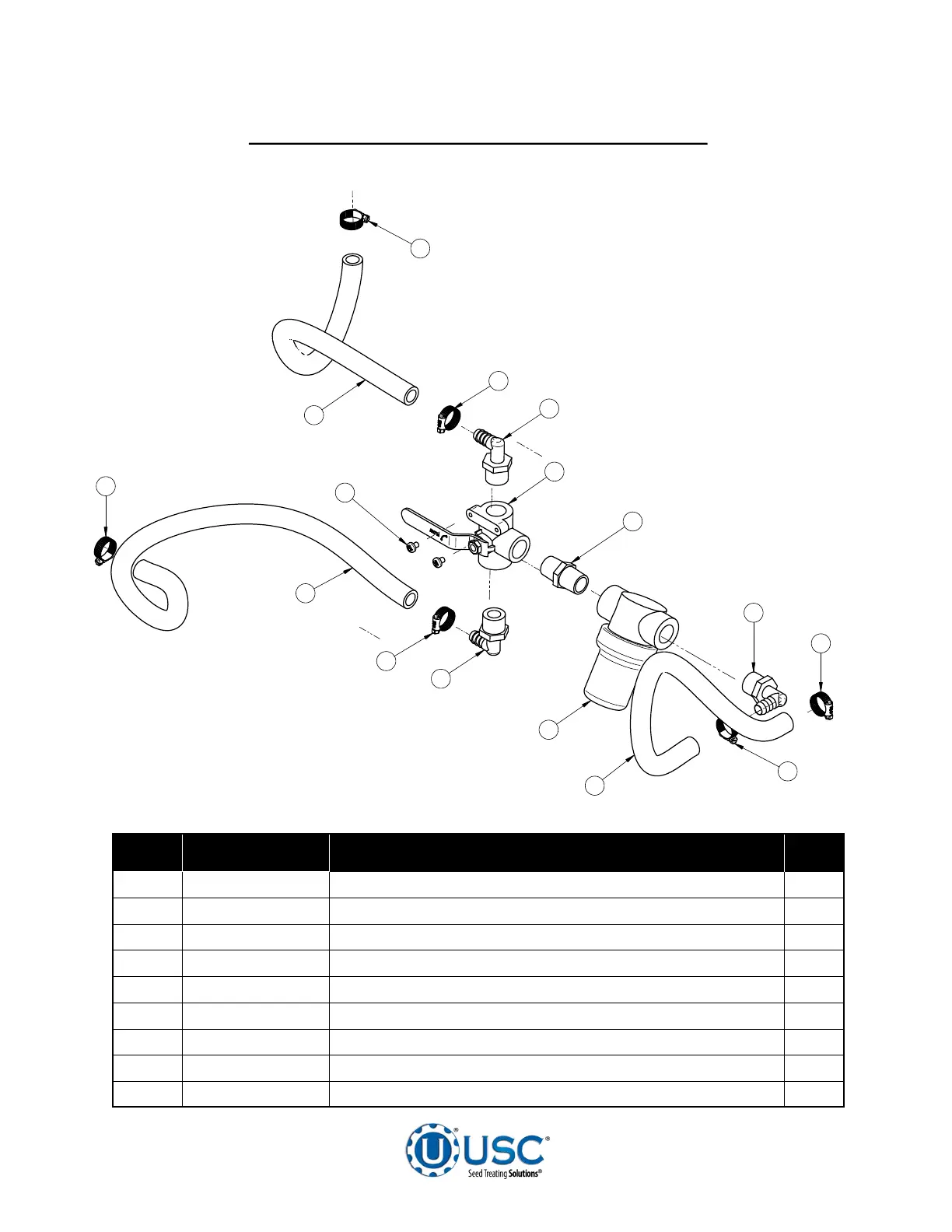

KIT VLV ST SOURCE
Printed 10/23/15 at 6:30
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
05/15/2015
TITLE
SIZE
D
DWG NO
File Name:13-05-0039B = Source Valve-Filter.dft
SHEET 1 OF 1
REVISION HISTORY
REV DESCRIPTION DATE APPROVED
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
± 1/32
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DO NOT SCALE DRAWING
U S C,L L C.
Sabetha, Kansas 66534 USA
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
13-05-0039
KIT VLV ST SOURCE
Printed 10/23/15 at 6:30
B
Rev
B
Rev
8
6
9
6
6
2
3
4
2
6
7
6
2
6
1
5
Item # Part # Rev Title Qty
1 02-02-0007 A .500-14 NPT 3-WAY VALVE 1
2 02-06-0010 A FTTG 90 DEG .500HB X .500NPT ML NYL 3
3 02-07-0009 A FTTG NIP .500 NPT X 1.75 TBE BP 1
4 02-12-0002 A FLTR TEE PPE .500 NPT 16 MESH LRG 1
5 06-06-0008 A SCRW MACH 10-24 X .250 PHLP PHD ZP 2
6 06-07-0006 A CLMP HOSE .500 TO .906 X .313W ZP 6
7 13-05-0024 A HOSE .500 RNT 12IN 1
8 13-05-0025 A HOSE .500 RNT 20IN 1
9 13-05-0026 A HOSE .500 RNT 22IN 1
