LPH800 TREATER

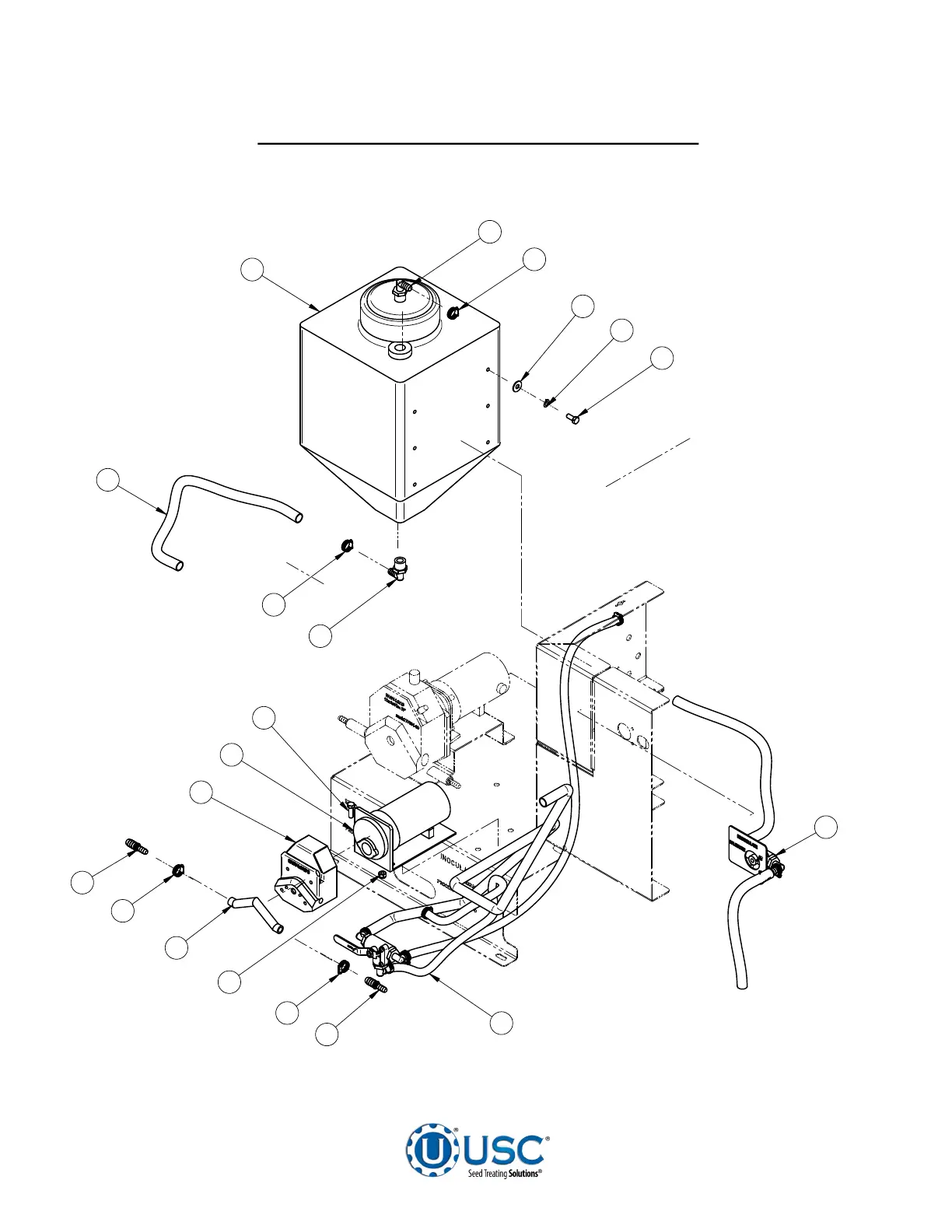

LPH800 INOCULANT KIT ASSEMBLY (18-01-0279)
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
05/08/2014
TITLE
SIZE
D
DWG NO
File Name:13-04-0088 = Inoculant Kit.dft
SHEET 1 OF 2
REVISION HISTORY
REV DESCRIPTION DATE APPROVED
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
± 1/32
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
13-04-0088
KIT INOC LP800 2010-2011
Printed 05/08/14 at 15:29
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
05/08/2014
TITLE
SIZE
D
DWG NO
File Name:13-04-0088 = Inoculant Kit.dft
SHEET 1 OF 2
REVISION HISTORY
REV DESCRIPTION DATE APPROVED
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
± 1/32
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
13-04-0088
KIT INOC LP800 2010-2011
Printed 05/08/14 at 15:29
A
Rev
A
Rev
13
12
9
2
5
4
3
11
5
11
1
7
8
Item # Part # Rev Title Qty
1 01-01-0010 A MTR .1HP 6-600RPM 90VDC 1
2 02-01-0005 A PUMP HEAD PRST MF LS 115V 600RPM 1
3 02-03-0005 A. .5 RNT TUBING 20" LG 1
4 02-05-0027 A FTTG CPLG .500 HB X .375 HB NYL 2
5 02-06-0010 A FTTG 90 DEG .500HB X .500NPT ML NYL 2
6 06-01-0010 A BOLT .313-18 X .750 ZP GR5 6
7 06-01-0012 A BOLT .313-18 X 1.00 ZP GR5 2
8 06-03-0002 A NUT NYL LOCK .313-18 ZP GR5 2
9 06-04-0002 A WSHR LOCK SPLT .313 ZP 6
10 06-05-0003 A WSHR FLAT .313 ZP 6
11 06-07-0006 A CLMP HOSE .500 TO .906 X .313W ZP 4
12 07-02-0016 A TNK 5GAL 5.00 LID X .500 PLAS RECT 1
13 13-05-0018 A HOSE .375 BLK MF 20IN 4
14 13-05-0041 B KIT VLV INOC 1
15 13-05-0160 A KIT VLV CALB TO INOC 1
14
10
6
15
11
11
4
