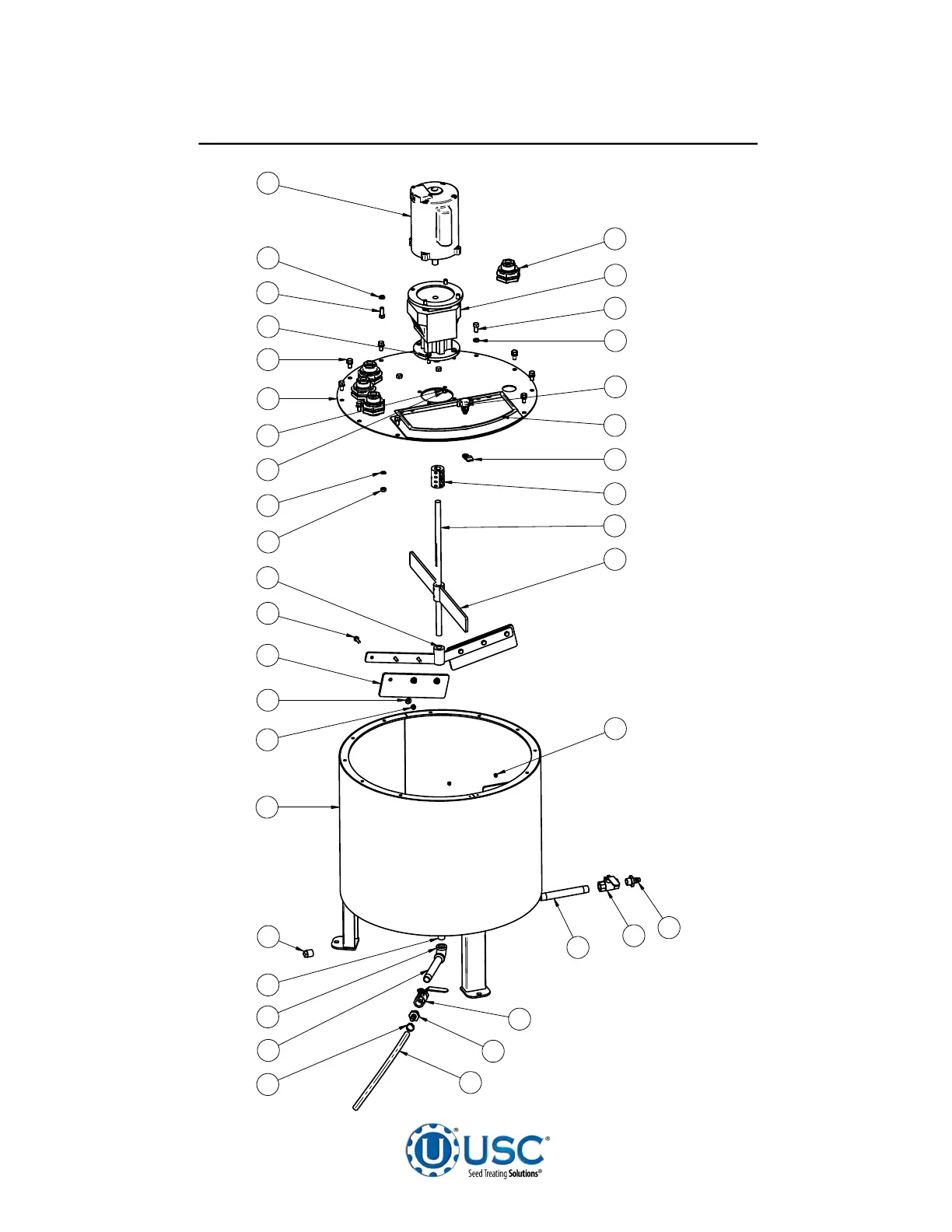

LPH800 TREATER
30 GALLON STAINLESS STEEL TANK ASSEMBLY (04-03-0204)
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
± 1/16
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
06/30/2014
TITLE
SIZE
D
DWG NO
File Name:04-03-0204 = 30 GAL SS LPH800 (A) .dft
SHEET 1 OF 2
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
04-03-0204
ASSY SS 30GAL TANK PUMPSTD
Printed 07/01/14 at 7:55
A
REV
± 1/16
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
06/30/2014
TITLE
SIZE
D
DWG NO
File Name:04-03-0204 = 30 GAL SS LPH800 (A) .dft
SHEET 1 OF 2
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
04-03-0204
ASSY SS 30GAL TANK PUMPSTD
Printed 07/01/14 at 7:55
A
REV
REVISION HISTORY
REV DESCRIPTION DATE BY
A INITIAL DRAWING 6-27-14 MLH
Item # Part # Rev Title Qty
1 01-01-0039 A GBOX IL 61.8:1 56C OTP 56C INP 1
2 01-01-0104 A MTR .33HP 1725RPM 56C 1PH TENV 1
3 01-07-0015 A CPLG CLPN .625 X .750 X 1.50OD SS 1
4 02-02-0006 A .500-14 NPT X 2-WAY VALVE 2
5 02-03-0005 A DRAIN HOSE PUMP STAND 1
6 02-05-0028 A FTTG .500 NPT DBL THD PPE BULKHEAD 4
7 02-06-0012 A ELBOW, .500-14 NPT, 90 DEG. SS 1
8 02-07-0007 A FTTG NIP .500 NPT X 1.125 TBE SS 1
9 02-07-0015 A FTTG NIP .500 NPT X 6.00 TBE SS 2
10 02-08-0007 A FTTG STGHT .500HB X .500NPT ML NYL 2
11 02-14-0001 A FTTG PLUG SQHD .500 NPT SS 1
12 05-03-0069 A WDMT 50GAL MIDDLE STIR ARM 1
13 05-03-0070 A WDMT 50GAL LOWER STIR ARM 1
14 05-03-1079 B ASSY SS TANK LID 30-60 GAL 1
15 05-03-1384 A WDMT BASE 30GAL TANK 1
16 05-10-0878 A PDL 50GAL WIPER 2
17 06-01-0016 A BOLT .375-16 X 1.00 ZP GR5 4
18 06-01-0042 A BOLT .375-16 X .750 SS 18-8 10
19 06-01-0051 A BOLT, .250-20 X 1.00 UNC 316 SS 6
20 06-01-0083 A BOLT .313-18 X 1.00 SS 18-8 4
21 06-02-0017 A NUT FULL .313-18 SS 18-8 4
22 06-03-0007 A NUT NYL LOCK .250-20 SS 18-8 6
23 06-04-0003 A WSHR LOCK SPLT .375 ZP 4
24 06-04-0008 A WASHER, .375 LOCK 316 SS 10
25 06-04-0010 A WSHR LOCK SPLT .313 SS 18-8 4
26 06-05-0002 A WSHR FLAT .250 X .625OD SS 18-8 6
27 06-07-0029 A HOSE CLAMP ONE EAR, .716-.827 1
28 06-09-0075 A KNOB WING LATCH 1
29 06-09-0076 A KNOB WING CAM 1
30 06-10-0001 A SEAL RBBR BULBS CHAR .500 X .250 1
31 06-12-0011 A RIVET POP .188 X .750 GRIP SS 2
32 102EAC A ROD 30GAL DRV 1
2
3
29
32
19
13
16
26
22
15
4
9
11
1
14
30
28
6
23
18
24
5
27
10
9
7
10
4
13
18
25
22
19
8
ALSO IN BOM, NOT SHOWN:
- 1 x 09-01-0003 ATWK LBL MADE IN USA YEL 2.50X2.50
- 1 x 09-01-0043 ATWK LBL USC 22.00 X 5.75 PRO-CUT
- 1 x 09-02-0001 ATWK LBL DANGER FINGERS
18
21
25
31
