USC LPH800 - Page 68

Page 68
LPH800 TREATER

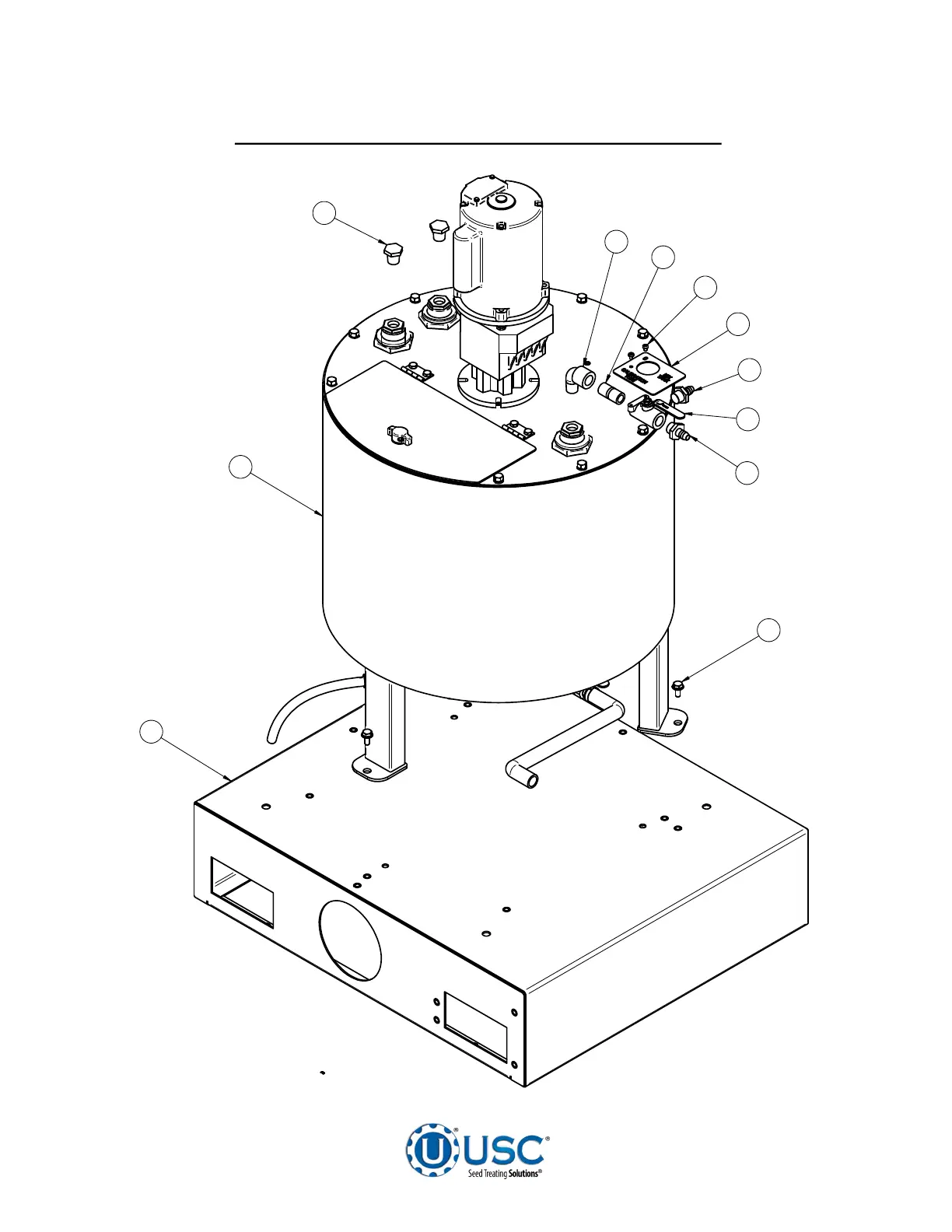

30 GALLON TANK AND BASE ASSEMBLY (04-03-0199)
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
± 1/16
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
04/30/2014
TITLE
SIZE
D
DWG NO
File Name:04-03-0199 = 30 Gal Tank Assy.dft
SHEET 1 OF 2
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
04-03-0199
TANK STAND 30GAL SS LPH
Printed 06/24/14 at 13:11
A
REV
± 1/16
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
04/30/2014
TITLE
SIZE
D
DWG NO
File Name:04-03-0199 = 30 Gal Tank Assy.dft
SHEET 1 OF 2
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
04-03-0199
TANK STAND 30GAL SS LPH
Printed 06/24/14 at 13:11
A
REV
REVISION HISTORY
REV ECN DESCRIPTION DATE BY
A INITIAL DRAWING 2/27/2014 austinw
Item # Part # Rev Title Qty
1 02-02-0007 A VLV BALL .500 NPT 3WAY BRSS 1
2 02-06-0017 A 1/2-14 NPT,SL 90 DEG. BP 1
3 02-07-0009 A FTTG NIP .500 NPT X 1.75 TBE BLK 1
4 02-08-0007 A FTTG STGHT .500HB X .500NPT ML NYL 2
5 02-14-0002 A 1/2-14 NPT,PLUG BP 3
6 04-03-0180 A ASSY SS 30GAL TANK PUMPSTD 1
7 05-03-1053 B WDMT SMALL PUMPSTAND BASE BOX 1
8 05-10-2080 A LBL TRTR MIX TANK 1
9 06-01-0124 A BOLT, FLG .375-16 UNC ZP GRADE 5; 3/4" LG 3
10 06-06-0008 A SCRW MACH 10-24 X .250 PHLP PHD ZP 2
7
6
5
2
3
8
10
4
1
4
9
