LPH800 TREATER

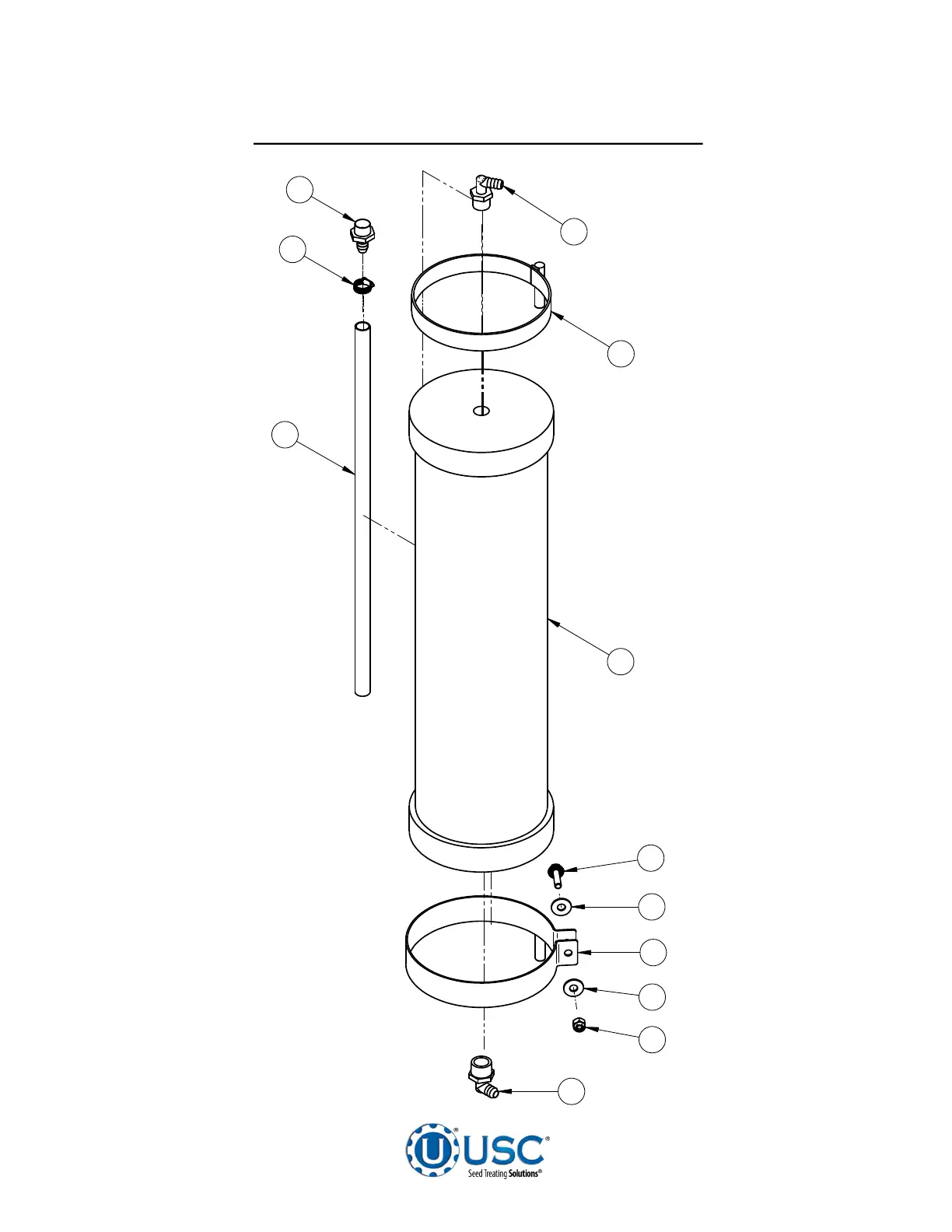

LPH CALIBRATION TUBE ASSEMBLY (13-04-0208)
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
05/15/2015
TITLE
SIZE
D
DWG NO
File Name:13-04-0208 = LPH800 Cal Tube.dft
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
± 1/32
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
13-04-0208
ASSY CALB TUBE LPH
Printed 07/29/15 at 11:23
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
05/15/2015
TITLE
SIZE
D
DWG NO
File Name:13-04-0208 = LPH800 Cal Tube.dft
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
± 1/32
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
13-04-0208
ASSY CALB TUBE LPH
Printed 07/29/15 at 11:23
4
10
1
3
8
6
7
11
5
2
9
9
Item # Part # Rev Title Qty
1 02-03-0005 A TUBE,CALIBRATION TUBE INSIDE 1
2 02-06-0010 A FTTG 90 DEG .500HB X .500NPT ML NYL 1
3 02-06-0011 A FTTG 90 DEG .500HB X .750NPT ML NYL 1
4 02-08-0007 A FTTG STGHT .500HB X .500NPT ML NYL 1
5 05-08-0006 A WDMT,INOC.BRK,SM 1
6 05-08-0007 A WDMT,BRK,INOC LG 1
7 06-01-0189 A BOLT FLG .375-16 X 1.250 ZP GR5 1
8 06-03-0003 A NUT NYL LOCK .375-16 ZP GR5 1
9 06-05-0004 A WSHR FLAT .375 ZP 2
10 06-07-0006 A CLMP HOSE .500 TO .906 X .313W ZP 1
11 07-02-0006 A CALIBRATION TUBE,10K ML - 2005 1
REVISION HISTORY
REV ECN DESCRIPTION DATE BY
A INITIAL DRAWING 4/27/2015 martyh
