DANGER
Burn, scald hazard. Pressuretrol must be installed
by a qualifi ed service agency in accordance with
manufacturer’s instructions, all applicable codes and
requirements of authority having jurisdiction. Failure to
follow the information in these instructions exactly will
result in death or serious injury. Qualifi ed service agency
is responsible for proper installation.
!
LOCATING THE BOILER
Pressuretrol Assembly
Installation Instructions: See Figure 4.
1.
Attach pressuretrol assembly (A) to site glass
assembly, using proper pipe sealant.
2.
Remove pressuretrol cover.
3.
Route wire harness through black plastic bushing (B).
4.
Attach two wires. Wires are not polarity sensitive, can
place on either terminal.
5.
Replace pressuretrol cover.

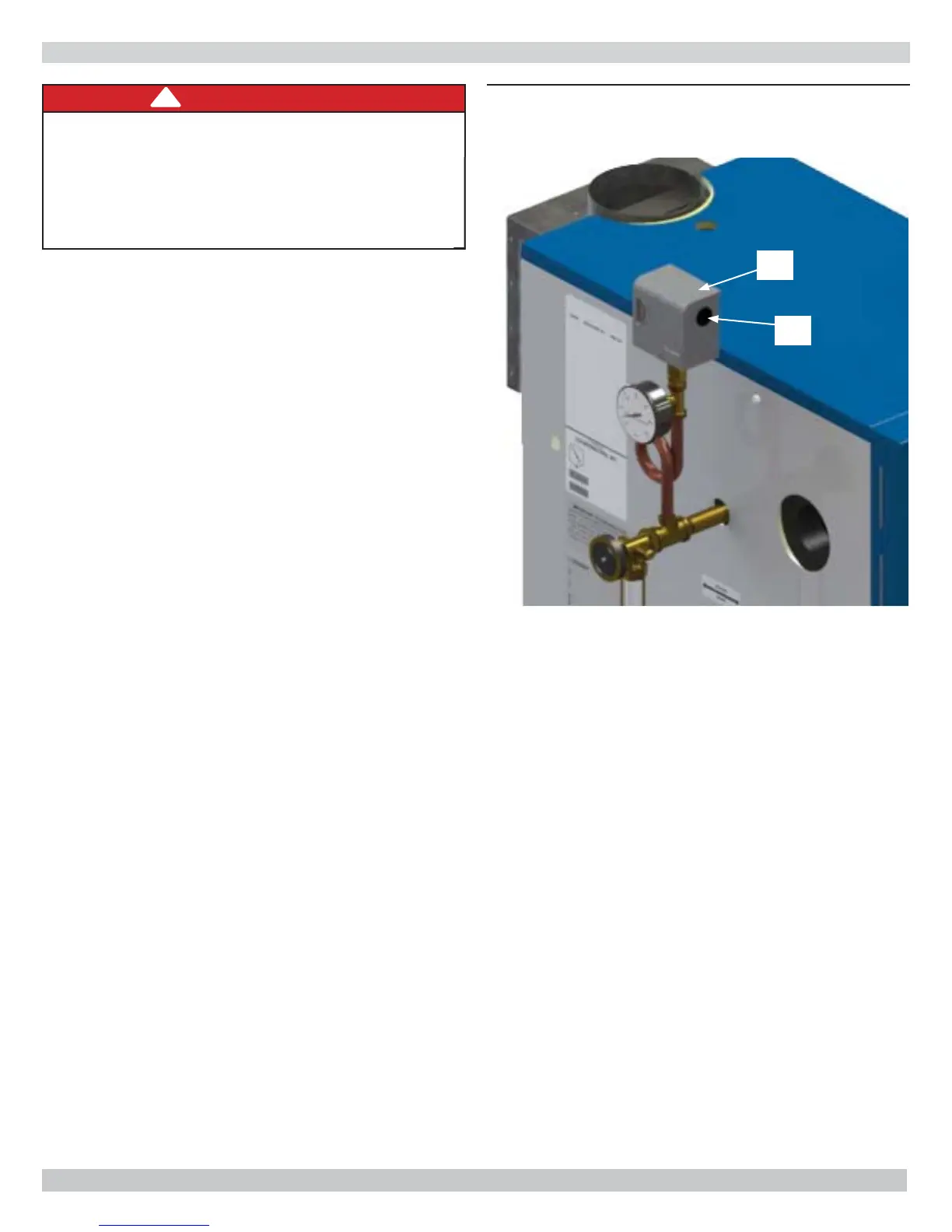

Figure 4 - Pressuretrol Assemly
A
B
