UTICA BOILERS USC - Replacement Parts: Base Components; Base and Burner Assembly Parts

USC SERIES REPLAUSC SERIES REPLA
USC SERIES REPLAUSC SERIES REPLA
USC SERIES REPLA
CEMENT PCEMENT P
CEMENT PCEMENT P
CEMENT P
ARAR
ARAR
AR
TS - BTS - B
TS - BTS - B
TS - B
ASEASE
ASEASE
ASE
PAGE 20

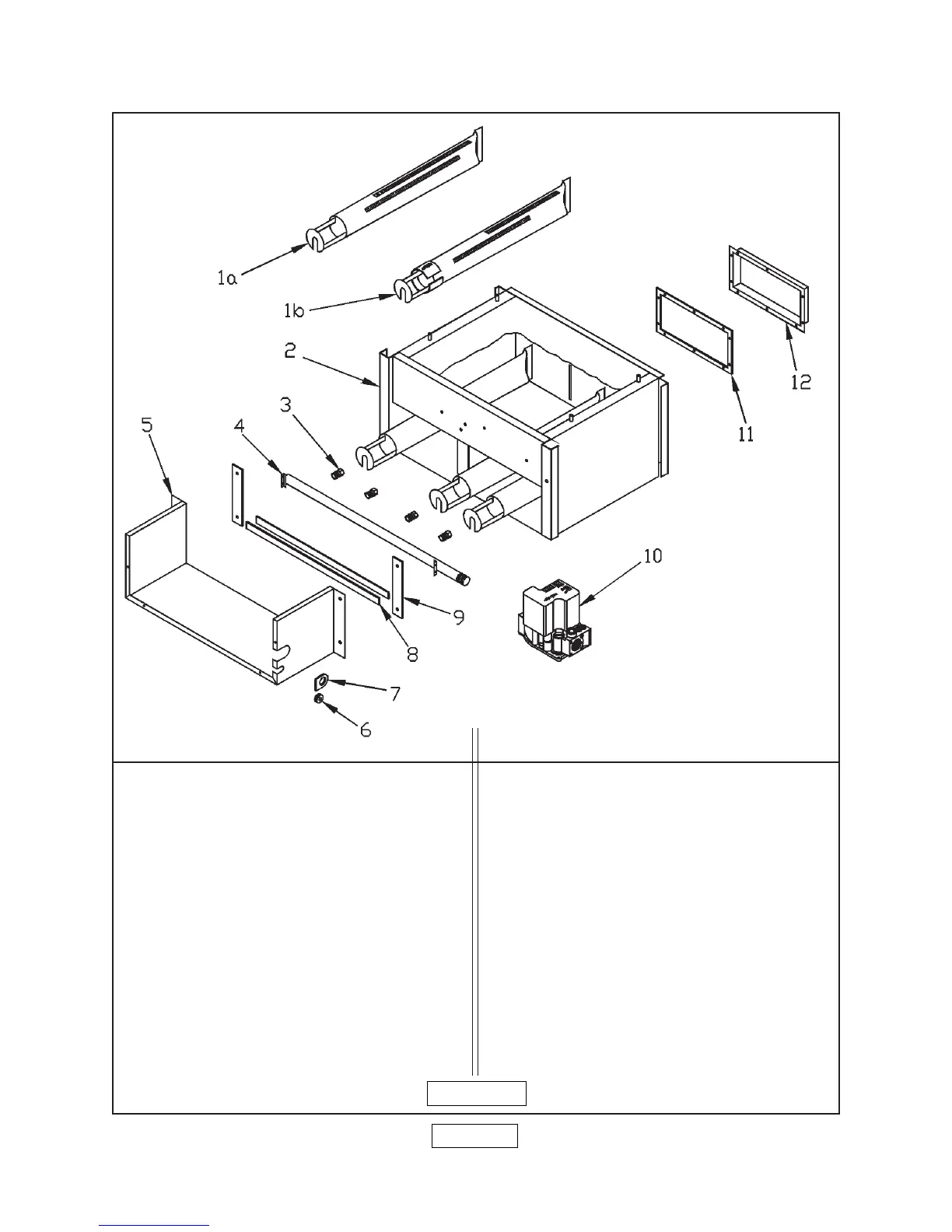

FIGURE 22
1a 3352401 BURNER TUBES 1.3/4" NAT
(FOR NATURAL GAS ONLY)
1b 3352801 BURNER TUBES 1.3/4" LP
(FOR PROPANE GAS ONLY)
USC3 (2) USC4 (3) USC 5 (4)
2 5611602 KIT - BASE WITH INSUL USC3 1
5611603 KIT - BASE WITH INSUL USC4
5611604 KIT - BASE WITH INSUL USC5
3 355-1-5.09 ORIFICE #36 USC5 4
355-1-5.10 ORIFICE #37 USC4 3
355-1-5.11 ORIFICE #43 USC3 2
355-1-5.12 ORIFICE #52 USC4LP 3
355-1-5.12 ORIFICE #52 USC5LP 4
355-1-5.13 ORIFICE #54 USC3LP 2
4 3572201 MANIFOLD USC3 1
3572202 MANIFOLD USC4
3572203 MANIFOLD USC5
5 3272101 AIR BOX WRAPPER USC3 1
3272102 AIR BOX WRAPPER USC4
3272103 AIR BOX WRAPPER USC5
6 HW10101 PILOT GROMMET 1
7 HW10201 MANIFOLD GROMMET 1
8 3271901 AIR BOX WRAPPER GSKT-BOT USC3 2
3271902 AIR BOX WRAPPER GSKT-BOT USC4
3271903 AIR BOX WRAPPER GSKT-BOT USC5
9 3271801 AIR BOX WRAPPER GASKET 2
10 VG01701 GAS VALVE USC (SV9501H2417)1
(FOR NATURAL GAS ONLY)
VG01702 GAS VALVE USC (SV9501H2425)
(FOR PROPANE GAS ONLY)
11 3271501 BRN TUBE COVER INS. USC3 1
3271502 BRN TUBE COVER INS. USC4
3271503 BRN TUBE COVER INS. USC5
12 32721001 BRN TUBE COVER USC3 1
32721002 BRN TUBE COVER USC4
32721003 BRN TUBE COVER USC5
ITEM# PART # DESCRIPTIONS QTY. ITEM# PART # DESCRIPTION QTY.
