PIPING & CONTROLSPIPING & CONTROLS
PIPING & CONTROLSPIPING & CONTROLS
PIPING & CONTROLS
PAGE 22

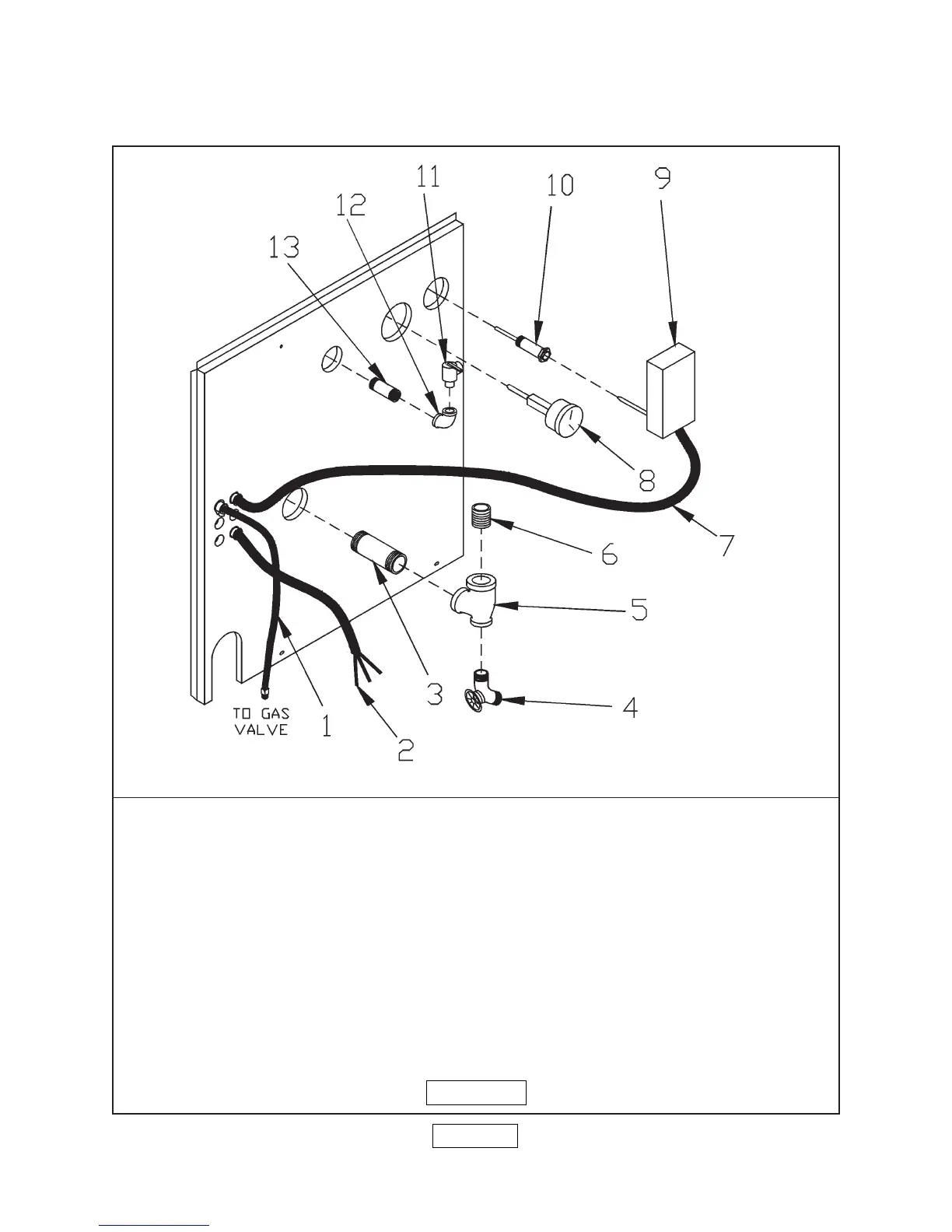

FIGURE 24
ITEM NO P/N DESCRIPTION QTY.
1 3772301 WIRE HARNESS - GAS VALVE USC 28" 1
2 37519501 HARNESS CIRCULATOR 72" 1
3 PF-006.07 PIPE - NIPPLE 1.1/4 X 4.1/2 NPT 1
4 HW-016.03 DRAIN SHORT 1
5 PF-008.03 PIPE FIT TEE - 1.1/4X3/4X1.1/4 1
6 PF-006.01 PIPE FIT NIPPLE 1.1/4 CLOSE 1
7 37518901 HARNESS - CONTROL TO LIMIT 1
8 GA-001.00 GAUGE-THERALTIMETER 1
9 AQ02201 CONTROL - LIMIT L4080B-1212 HW 1
10 AQ-020.01 WELL 3/4 X 3 HW 1
11 VR-001.01 RELIEF VALVE 30# 3/4" 1
12 PF-002.04 PIPE FIT ELBOW 3/4 NPT 90° 1
13 PF-005.11 PIPE - NIPPLE 3/4 X 4 NPT 1
