UTICA BOILERS USC - Replacement Parts: Termination Kit; Termination Kit Components

USC SERIES REPLAUSC SERIES REPLA
USC SERIES REPLAUSC SERIES REPLA
USC SERIES REPLA
CEMENT PCEMENT P
CEMENT PCEMENT P
CEMENT P
ARAR
ARAR
AR
TSTS
TSTS
TS
TERMINTERMIN
TERMINTERMIN
TERMIN
AA
AA
A
TION KITTION KIT
TION KITTION KIT
TION KIT

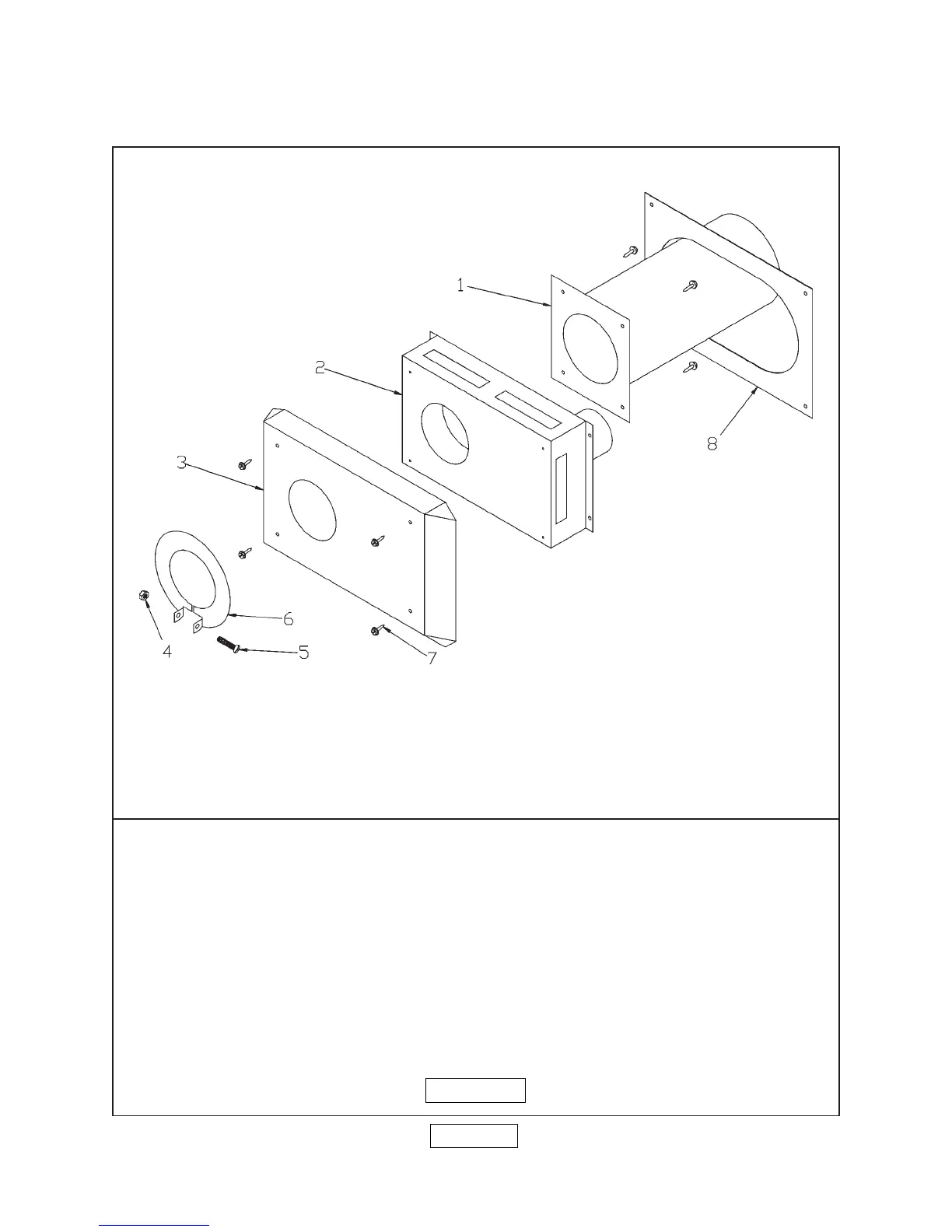

ITEM # PART # DESCRIPTION QTY.
1 34721501 VENT TERMINATION THIMBLE PLATE ASSY 1
2 34721002 TERMINATION ASSEMBLY 1
3 34721401 VENT TERMINATION DEFLECTOR 1
4 HW-003.06 NUT #10-24 HEX 1
5 30A004312 SCREW #10-24 X 1.1/2" ROUND HEAD 1
6 3471701 DRAW COLLAR - USC 1
7 HW-009.01 SCR #8-18X1/2" SLT HX WASH 8
8 3471901 VENT TEMPLATE 1
5612601 TERMINATION KIT (INCLUDES ALL OF THE ABOVE)
FIGURE 27
PAGE 25
