58

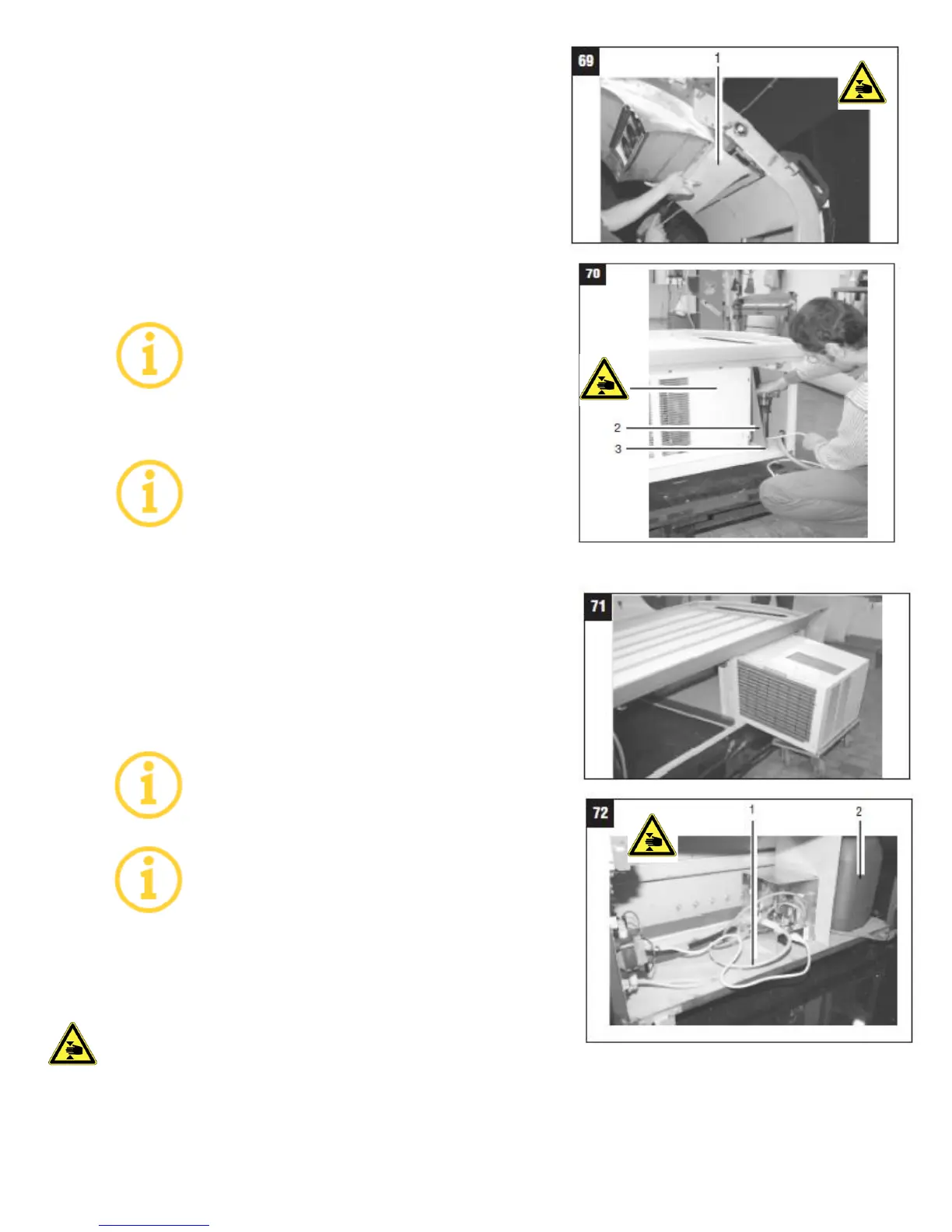

• Take out the filter mat
• Disconnect the control lead X10 to the air conditioning
unit
see photo (16/3)
• Unscrew the air guide plate (66/2) from the bottom of
the base housing
The air guide plate remains connected to the
air conditioning unit
• Remove the air conditioning unit
Disconnection of the supply lines and hose lines for BREEZE
• Disconnect the feed pump and pressure pump hose
couplings
• Detach the BREEZE hose couplings on the rear side of the
base frame
see photo 59
View of BREEZE
Removal of the screws between the Base frame and the stand (4 pieces)
