4.2 Mounting
All V-Count devices use the same/similar mounting methods as described in this topic.
1. Select the suitable mounting bracket according to the site. If a catwalk floor is
available to place the cables, use V-Count backside cover. If cable conduit will be
used, apply V-Count bracket.
Screw the mounting apparatuses into the ceiling as the cameras must face the floor.

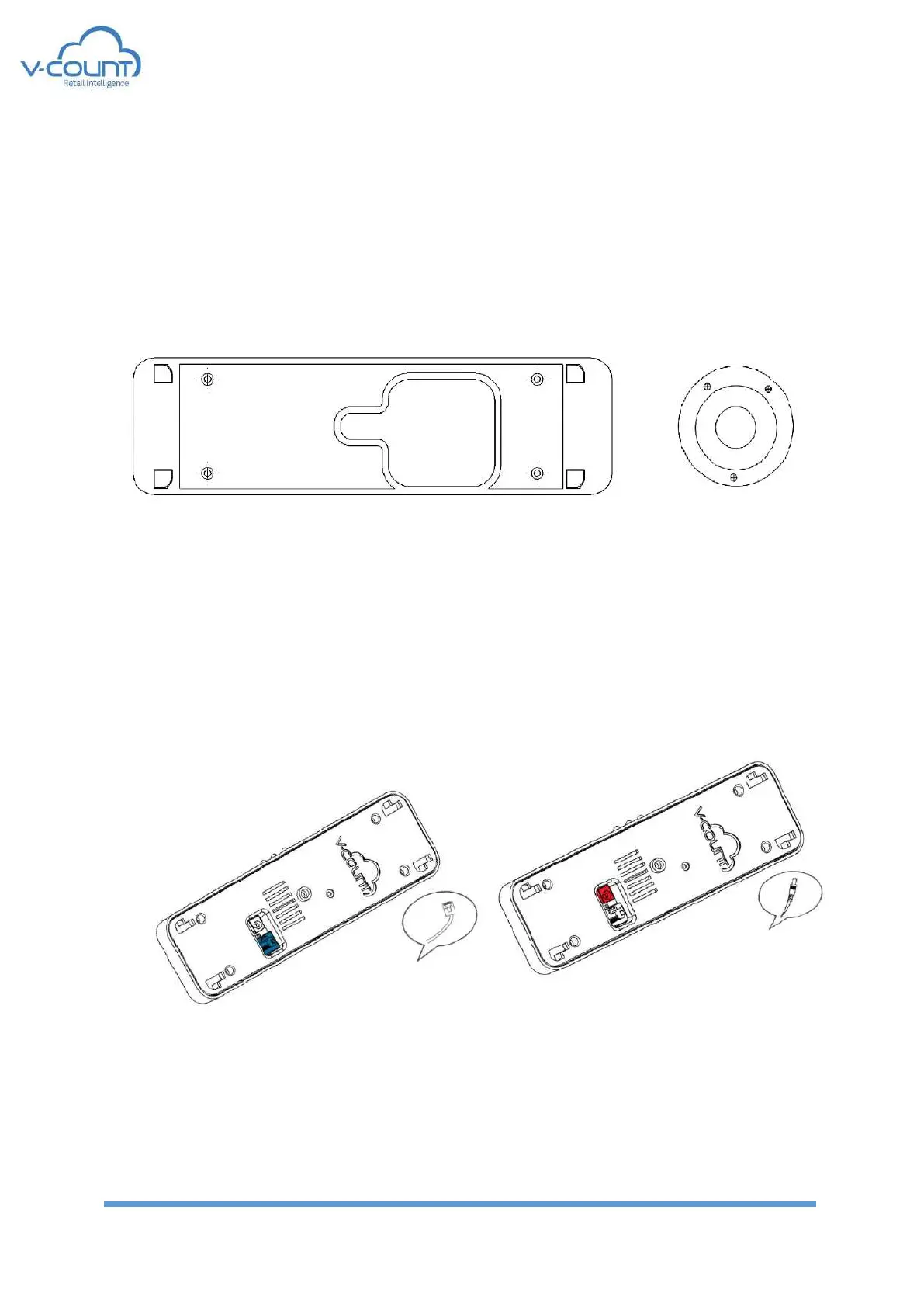

Figure 8 Mounting Apparatuses
2. Plug in the cables for the installation
Figure 9 Cable Connections
