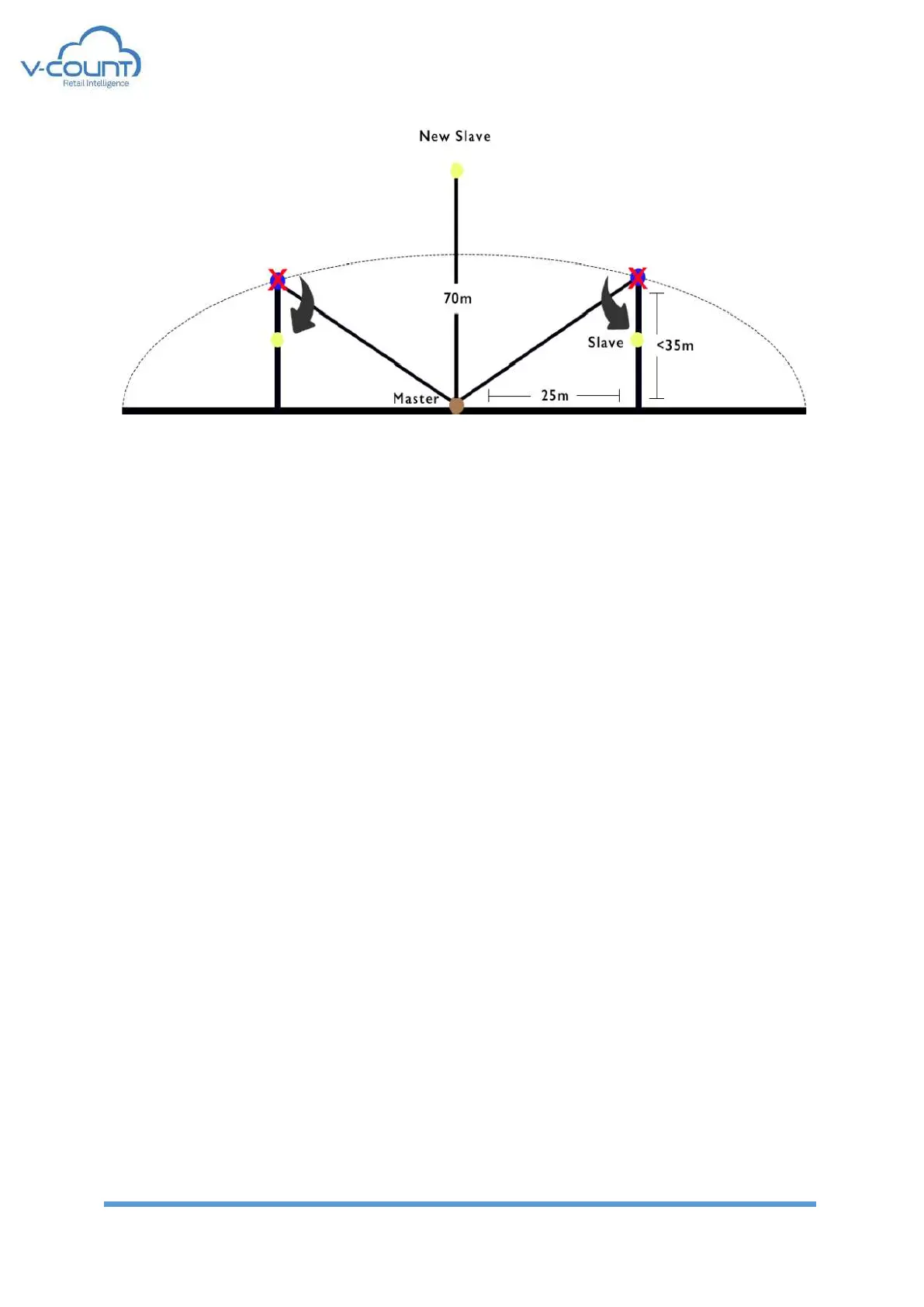

Figure 12 Crescent installation with 1 master and 3 slaves
Master and Slave devices shall be configured from the Setup Wizard pages. In stores having
more than one entrance, one crescent model shall be installed to each entrance and only one
master device shall be set. (The tracker devices that are placed at the other entrances also be
set as slave)
Crescent method and its master & slave devices set shall be set up for each of the doors. If a
store has 2 doors, then each set must be set up to each door. In this setup again only 1 master
device shall be set, and all the other devices shall be set up as slave devices. The device that
is at the center of the crescent which is at the second door also be set as slave. But it will be
marked in the master device. Please refer to 6.1.2.6.
