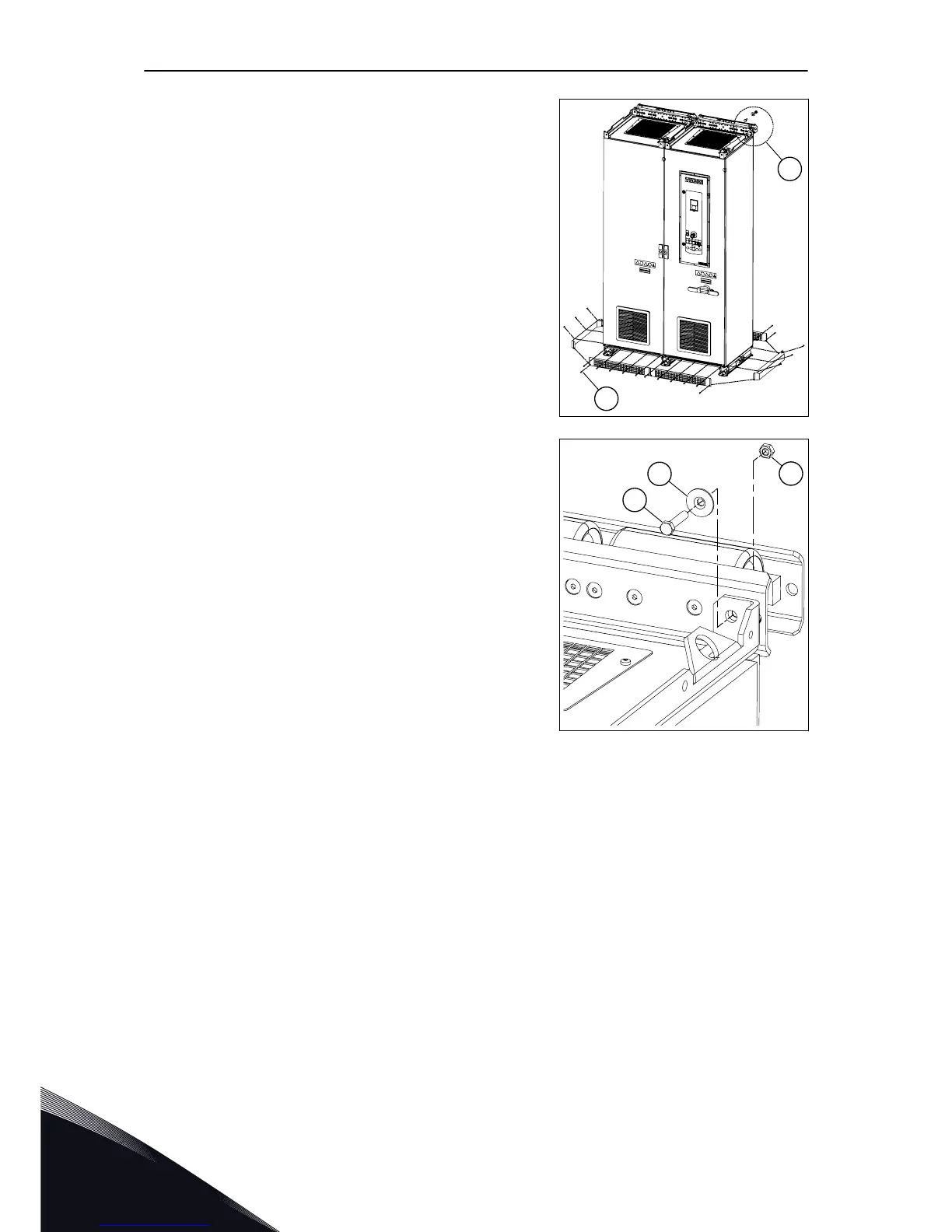

1 MR8-MR12: Attach the upper damper to the wall.
You can use screws or welding. Attach the
protection grilles of the cabinet with M5 x 12 mm
screws.
Attach the handle that you can find in the
accessories bag to the holes in the cabinet door
with M8 x 40 mm bolts and M8 nuts.
A)
The upper damper
B)
M5 x 12 mm screws
The picture shows an MR12 drive.
2 MR8: To attach the upper damper, use:
A)
An M8 x 40 mm bolt tightened to a 20-25 Nm
torque
B)
An 8 mm washer with a formed hole
C)
An M8 nut tightened to a 20-25 Nm torque
