➨ Remove the cover of the housing cover from the housing.

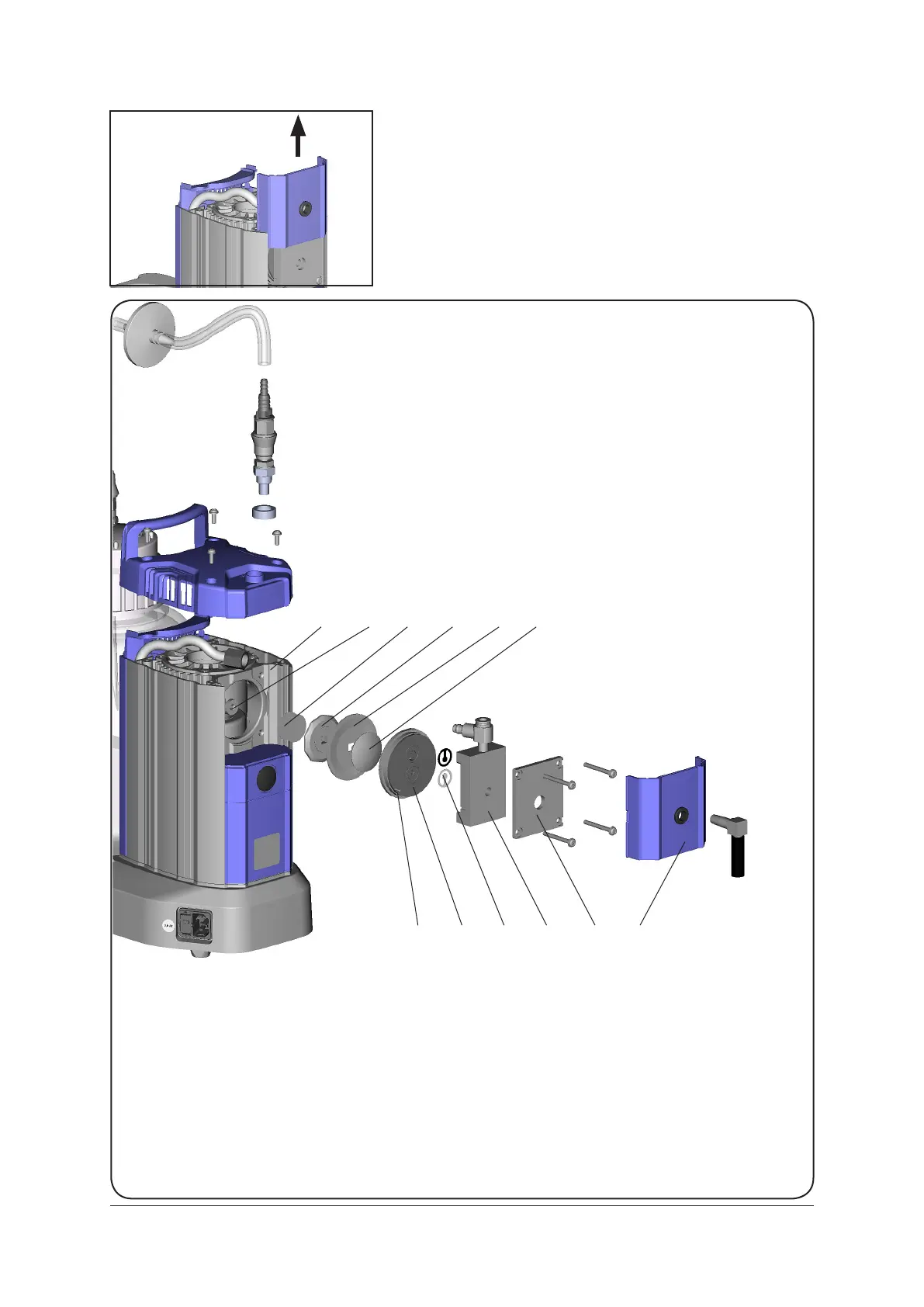

View of the disassembled pump head parts ME 1C
1:Coverofhousingcover
2: Housing cover
3: Housing cover insert
4: Valves
5: Head cover
6: Guiding pin
7: Diaphragmclampingdiscwithsquarehead
screw
8: Diaphragm
9: Diaphragm support disc
10: Washers
11: Rod
12: Housing
1
7
345
11 10 8
2
9
6
12
