AV Bridge MATRIX PRO
AV Bridge Matrix Pro Manual - Document Number 342-0915 Rev C Page 27 of 68

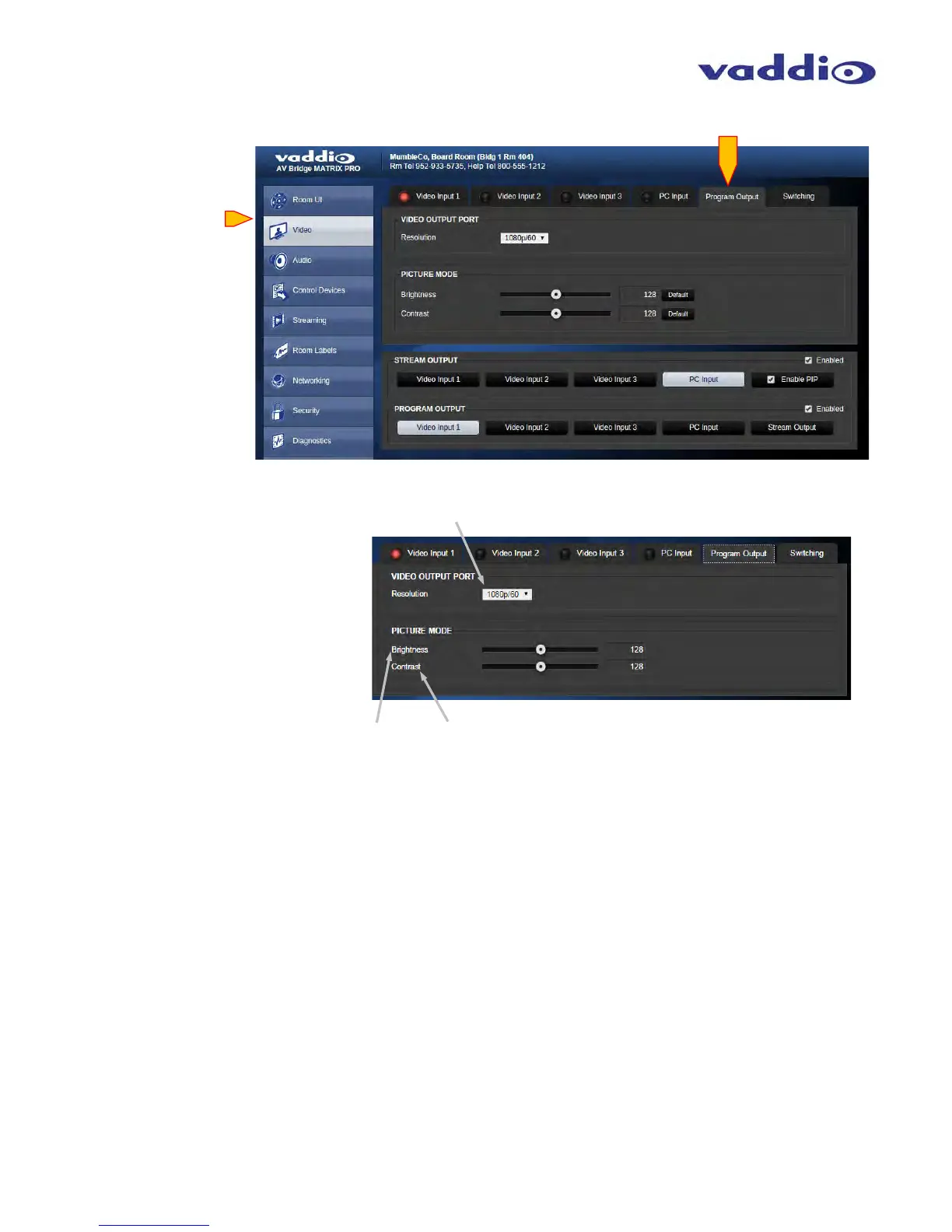

• Video Program Output:
Video Output Port: Resolution
pull-down allows for setting the
program output resolution. This
affects both the Program HDMI
output and the HSDS output.
Available Program output
resolutions options
are 1080p/60, 1080p/50,
720p/60 and 720p/50.
Picture Mode: Brightness control affects the Program outputs, and allows for brightness adjustment to
compensate for downstream monitor displays or other destinations which lack adjustment abilities.
Available adjustment range is 0-255, the numeric value is shown to the right of the slider. Once
highlighted or clicked, small adjustments can be made with the arrow keys on your computer.
Picture Mode: Contrast control affects the Program Outputs, and allows for contrast adjustment to
compensate for downstream monitor displays or other destinations which lack adjustment abilities.
Available adjustment range is 0-255, the numeric value is shown to the right of the adjustment slider.
Once highlighted or clicked on, small adjustments can be made with the arrow keys on your computer.
