• Audio Outputs:

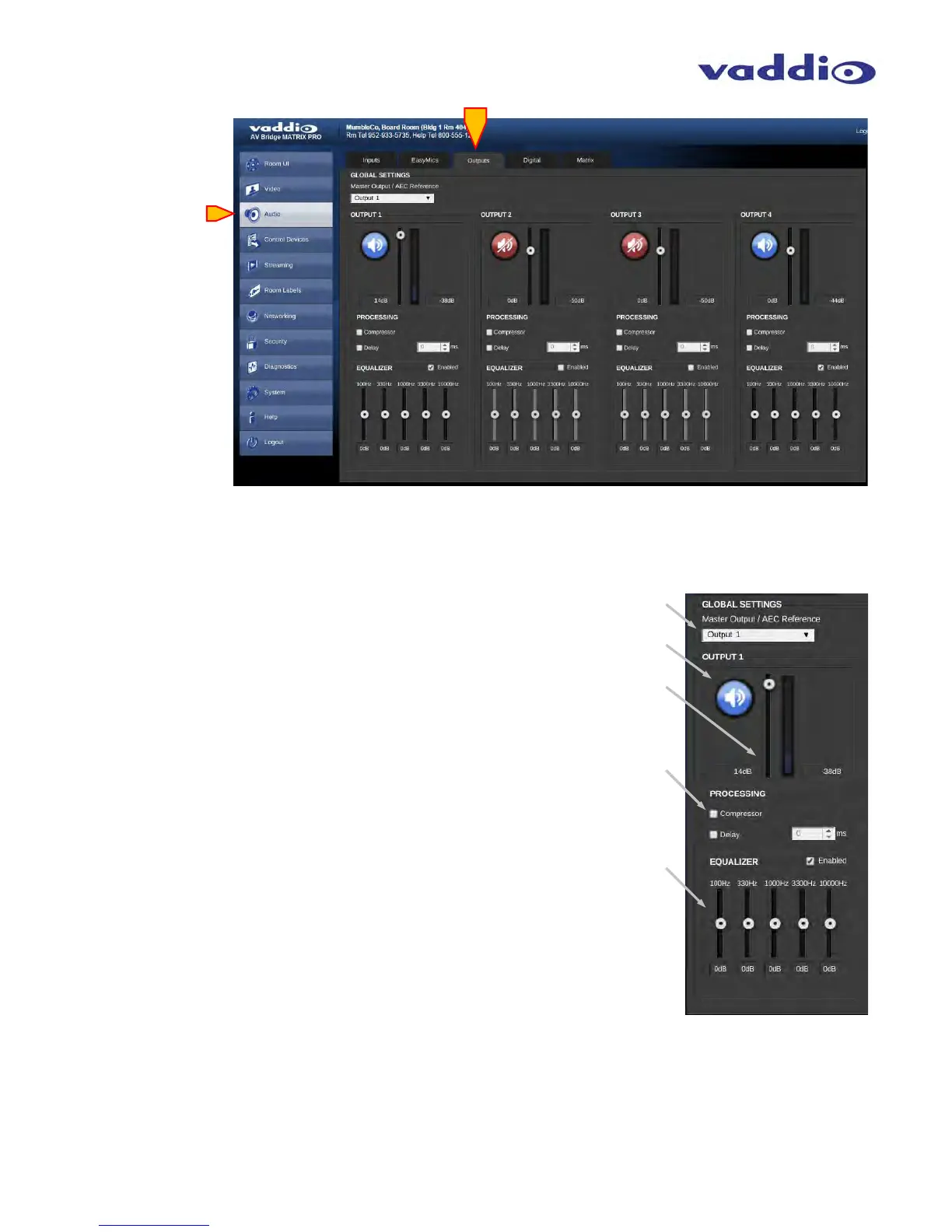

Global Settings: Master Output: selects which Output will be the Speaker
output. Speaker Output is the AEC reference for Acoustic Echo Cancelation.
Global Settings: Output channel Mute button. Blue = active, red = muted.
Global Settings: Output channel level control slider, label indicated
gain/attenuation. VU meter on right displays active audio on that channel.
Global Settings: Processing Section allows for enabling a fixed attribute
Compressor, as well as an audio Delay with adjustable delay duration.
Global Settings: Equalizer enabling activates an adjustable 5 Band EQ,
with a slider for each of the 5 equalization band frequencies. The 5 equalization
frequencies are 100 Hz, 330 Hz, 1 KHz, 3.3 KHz, and 10 KHz, respectively,
left to right.
