VADDIO OneLINK - Specifications and Signal Details; General System Specifications; Connector Signal Pin-outs

OneLINK For RoboSHOT HDMI Cameras

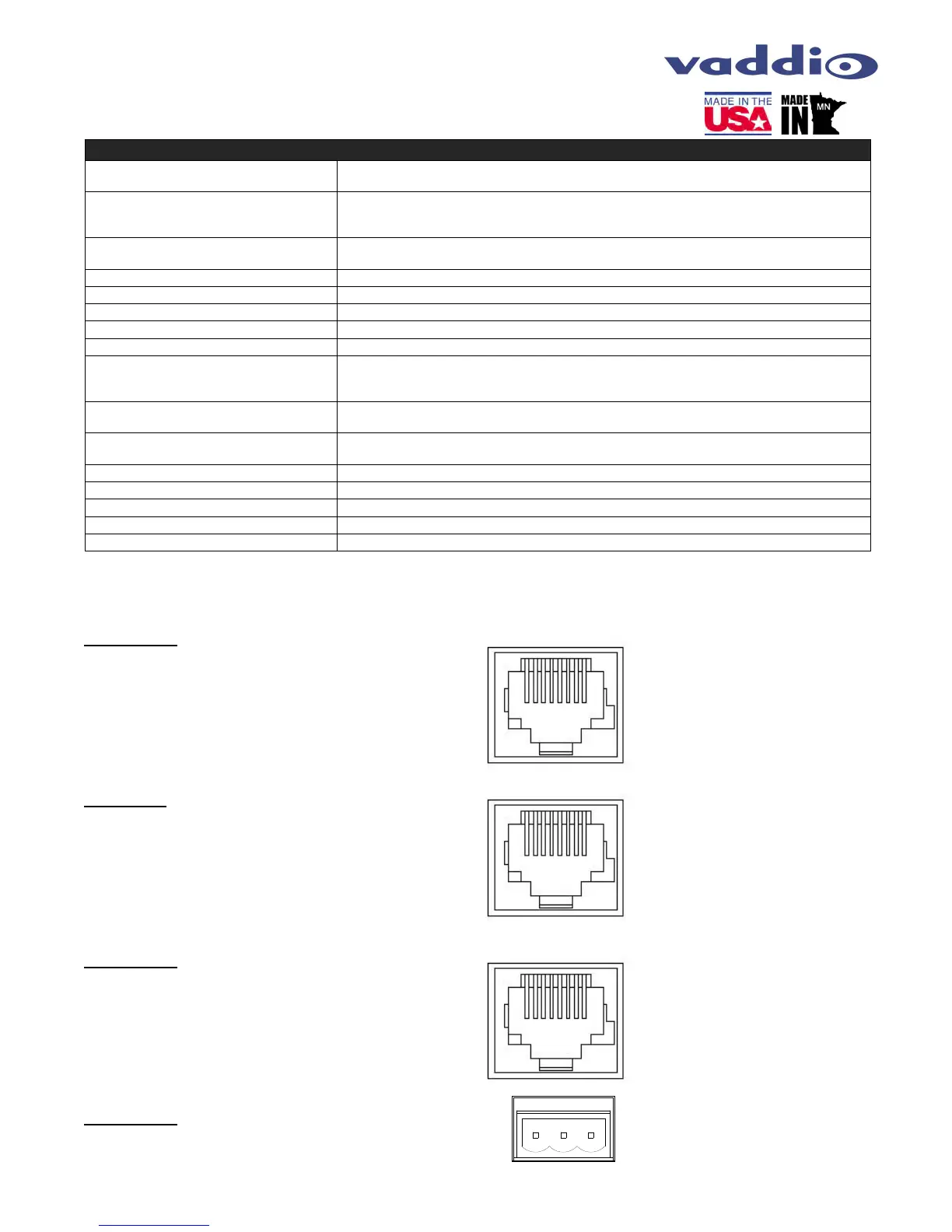

OneLINK For RoboSHOT HDMI Cameras Page 15 of 20
GENERAL SPECIFICATIONS
Notes: Specifications and pricing are subject to change without prior notice or obligation.
For dimensional drawings of the products, go to support.vaddio.com and click on drawings.
APPENDIX 1: CONNECTORS AND SIGNALS
OneLINK HDMI EZIM - RS-232 Control Port RJ-45
PIN# Signal
1) Unused
2) Unused
3) Unused
4) IR GND
5) IR (non-mod)
6) GND
7) TX (to RX of camera)
8) RX (from TX of camera)
OneLINK HDMI Interface - OneLINK HDMI Interface - RS-232 Control Port (RJ-45)
PIN# Signal
1) Unused
2) Unused
3) Unused
4) Unused
5) Unused
6) GND
7) RX (from TX of controller)
8) TX (to RX of controller)
OneLINK HDMI Interface - Ethernet Network Port (RJ-45)
PIN# Signal
1) TX+_D1
2) TX-_D1
3) RX+_D2
4) BI+_D3
5) BI-_D3
6) RX-_D2
7) BI+_D4
8) BI-_D4
OneLINK HDMI Interface - IR output on Euro style 3-pin:
PIN# Signal
1) Modulated IR
2) Common Ground
3) Non-modulated IR
OneLINK System for Vaddio HDMI Cameras
Part Numbers
999-9590-000: OneLINK System for Vaddio RoboSHOT HDMI Cameras (North America)
999-9590-001: OneLINK System for Vaddio RoboSHOT HDMI Cameras (International)
Included Cables (camera side)
One (1) 12” (305mm) HDMI Male to Male camera cable
Two (2) 12” (305mm) Cat-5e Patch Cables (Ethernet and RS-232)
One (1) 12” (305mm) power cable
Video Support
HDMI resolutions up to 1080p/60 for the RoboSHOT HDMI cameras. The OneLINK
architecture will support up to 2160p/30…for the future.
RS-232 Support Pass-through
Ethernet Support Pass-through
Camera Power Support 12 VDC, 3 Amp at EZIM
Cabling Distances Up to 328’ (100m) over Cat-5e/6
OneLINK Interface Power Supply 48 VDC, 1.36 Amp
Connectors on OneLINK Interface
OneLINK Port on Shielded RJ-45F, HDMI Output Receptacle, Ethernet on shielded RJ-45F
with LEDs, RS-232 on shielded RJ-45 connector, Power in on 5.5mm OD x 2.5mm ID Coaxial
connector (positive Center), IR Forward on 3-pin Phoenix-style connector
Connectors on OneLINK EZIM OneLINK Port on Shielded RJ-45F, HDMI Input Receptacle, Ethernet on shielded RJ-45F
with LEDs, RS-232 on shielded RJ-45 connector, Power out on EIAJ-04 connector
OneLINK Interface Dimensions
(H x W x D - not including Space-time)
1.72” (43.7mm) H x 8.375” (212.7mm) W x 6.00” (152.4mm) D
OneLINK EZIM Dimensions (H x W x D) 3.861” (98.07mm) H x 4.310” (109.47mm) W x 1.24” (31.5mm) D
OneLINK Interface Weight 1.553 lbs. (703.1g)
OneLINK EZIM Weight: 0.553 lbs. (249.5g)
Operating Temperature/Humidity 0°C (32°F) to 40°C (104°F), 20% to 80% Relative Humidity
Storage Temperature -20°C (-4°F) to +60°C (140°F)
12345678
12345678
12345678
1 2 3
Not Used with the RoboSHOT
HDMI Cameras
