3.3.3 Noise reduction mode
A noise reduction mode can be activated for the product.
In noise reduction mode, the product is quieter than in nor-
mal operating mode, which is achieved by a limited com-
pressor speed and an adjusted fan speed.

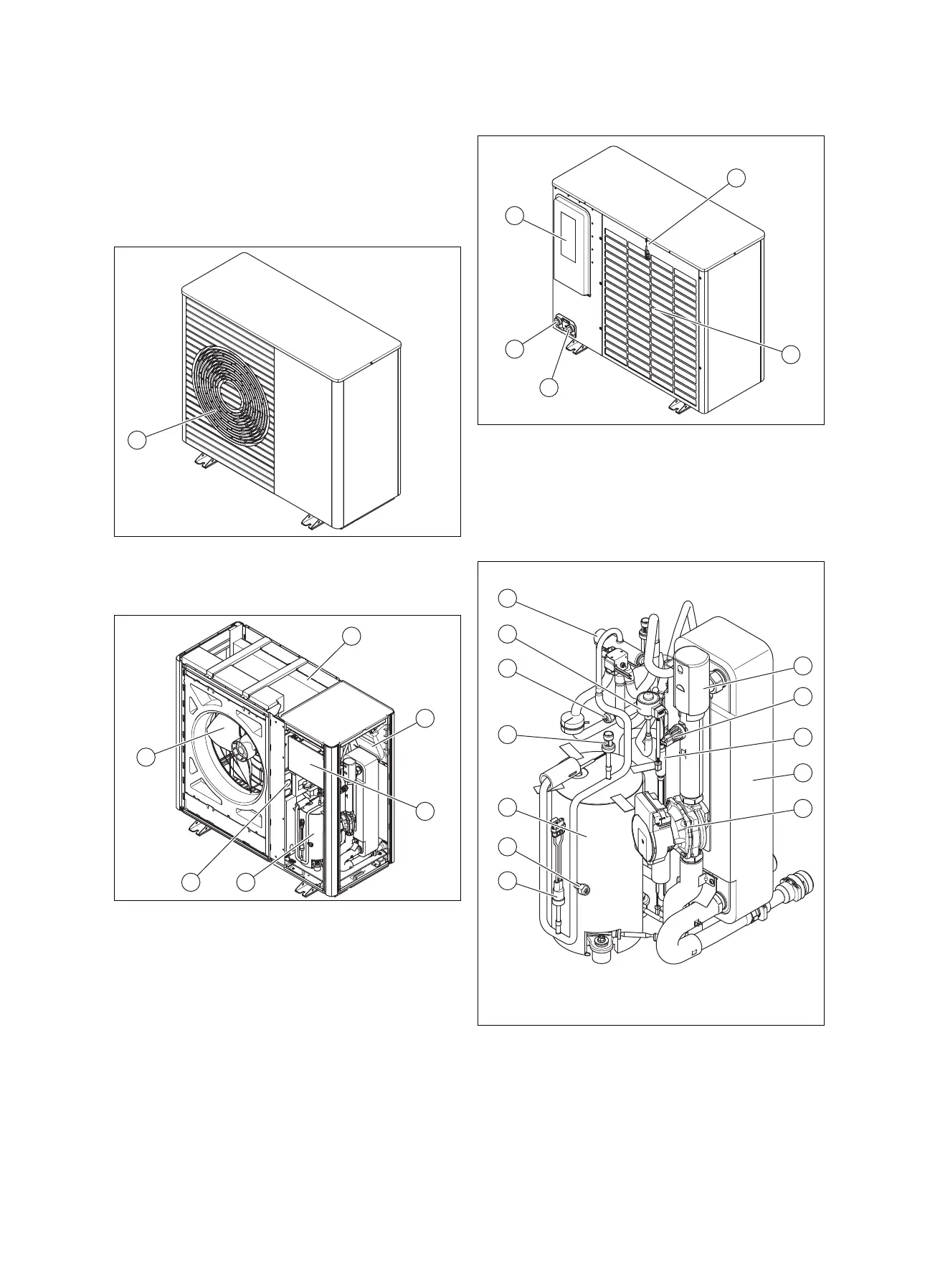

3.4 Product design
1
1 Air outlet grille
3.4.1 Components, unit, front
1
2
3
45
6
1 Evaporator (heat ex-
changer)
2 INSTALLER BOARD
PCB
3 HMU PCB
4 Compressor
5 INVERTER assembly
6 Fan
3.4.2 Components, unit, rear
3
4
1
2
5
1 Temperature sensor, at
the air inlet
2 Air inlet grille
3 Connection for heating
flow
4 Connection for heating
return
5 Cover, electrical con-
nections
3.4.3 Components, compressor
12
1
2
3
4
5
11
10
9
8
7
6
1 Automatic air vent
2 Pressure sensor, in the
heating circuit
3 Filter
4 Condenser (heat ex-
changer)
5 Heating pump
6 Pressure switch, in the
high-pressure area
7 Maintenance connec-
tion, in the high-pres-
sure area
8 Compressor, encapsu-
lated
