Vaillant aroTHERM plus - Complying with Minimum Clearances

Set-up 5
0020297937_01 aroTHERM plus Installation and maintenance instructions 117
1100
A
Product A
VWL 125/6 ... 1565
VWL 155/6 ... 1565
5.3.2 Side view, right
449 41
5.3.3 Bottom view
270
740180 180
477
106
14 14
5.3.4 Rear view
90
26
122

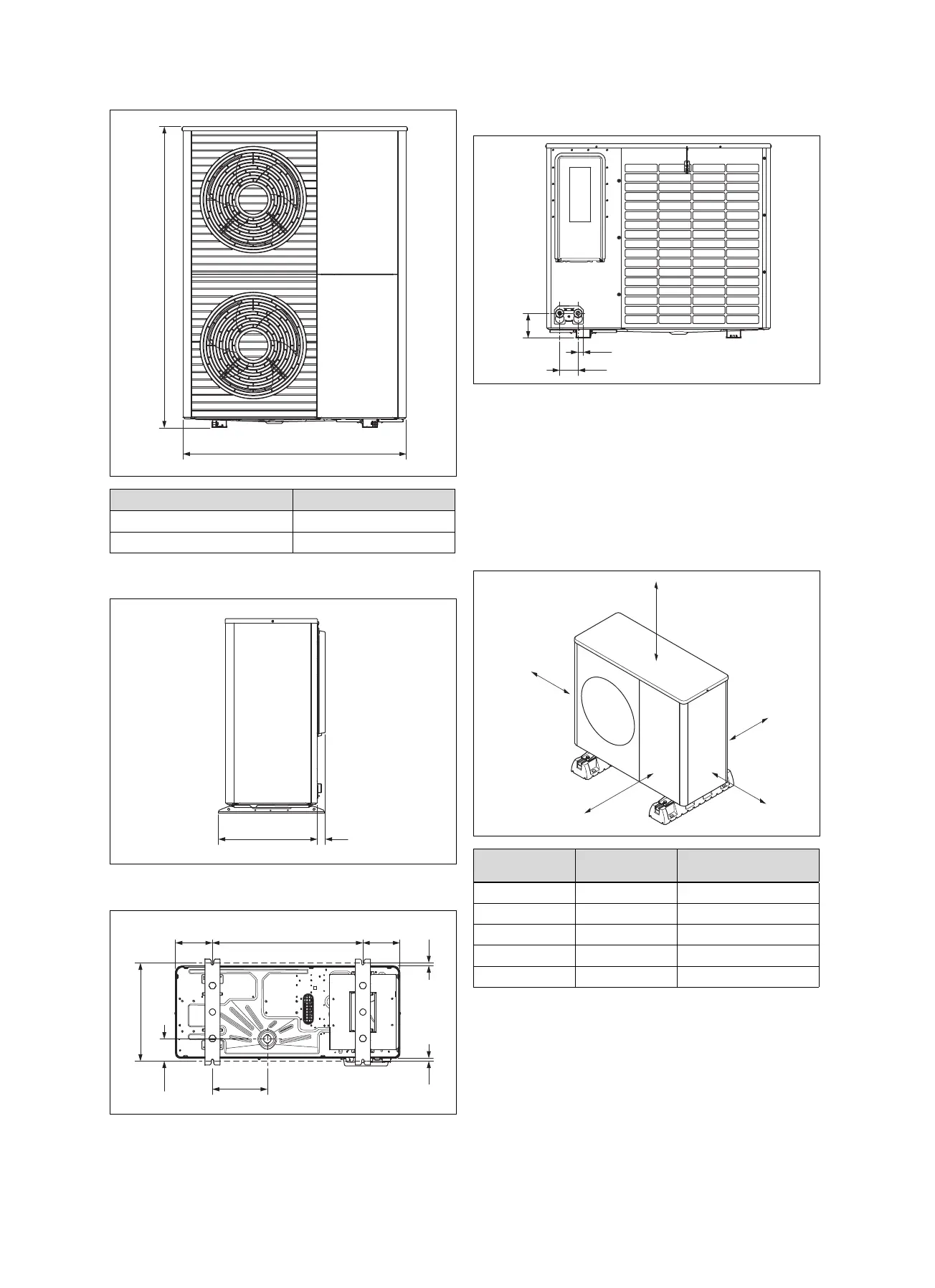

5.4 Complying with minimum clearances
▶ To guarantee sufficient air flow and to facilitate mainten-
ance work, observe the minimum clearances that are
specified.
▶ Ensure that there is sufficient room to install the hydraulic
lines.
5.4.1 Minimum clearances, ground installation
and flat-roof installation
A
D
B
E
C
Minimum clear-
ance
Heating mode Heating and cooling
mode
A 100 mm 100 mm
B 1000 mm 1000 mm
C 200 mm 250 mm
D 500 mm 500 mm
E 600 mm 600 mm
