6 Installation
16 Installation and maintenance instructions auroFLOW plus 0020149486_04

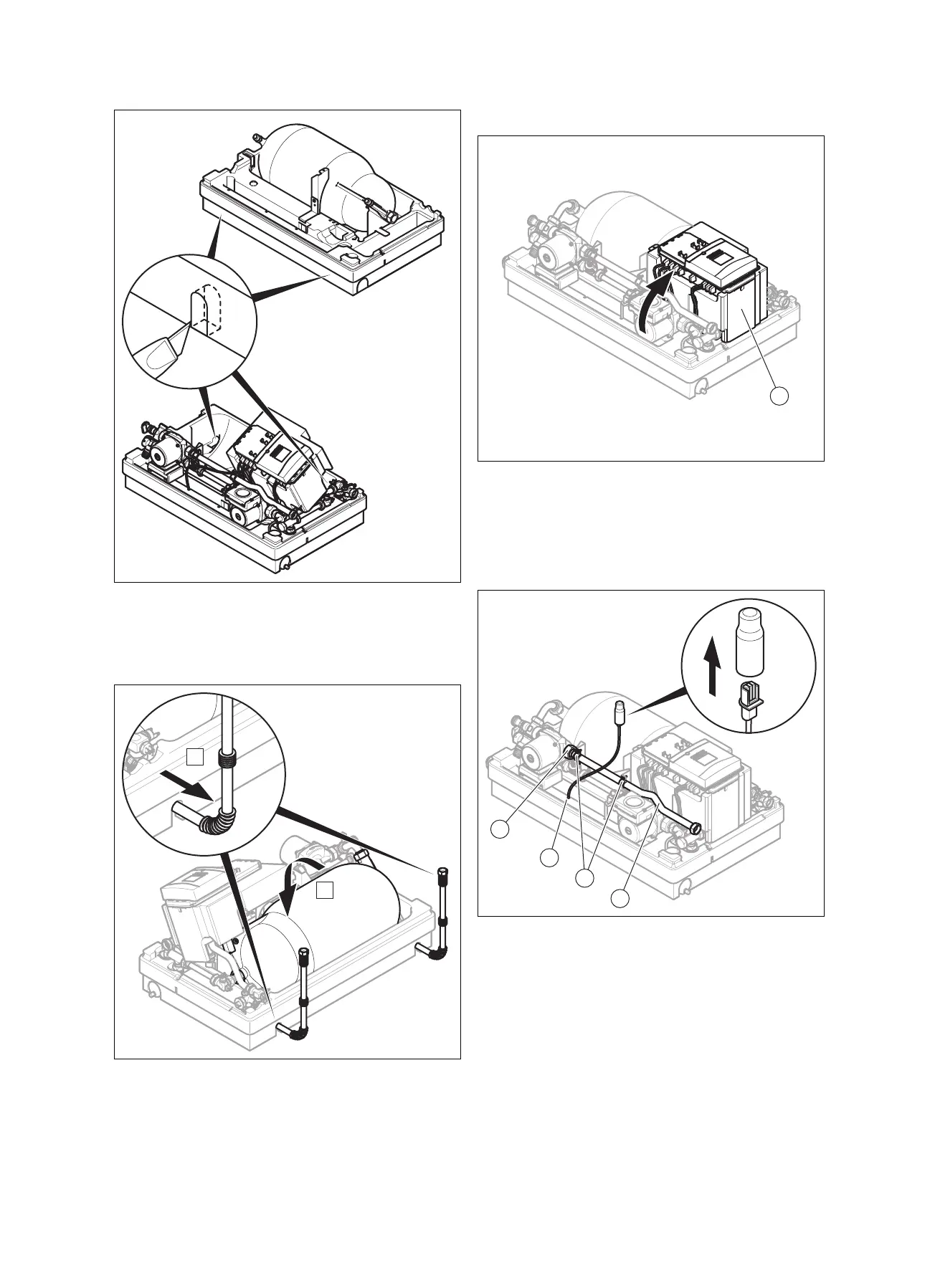

4. Cut two openings for the connection pipes at the points
provided in the side section of the basic module casing.
5. Cut two openings for the connection pipes at the points
provided in the side section of the expansion module
casing.
A
B
6. Use the two fixing screws and the two cap nuts to install
the storage tank in the basic module. Route the connec-
tion pipes through the openings in the side panel of the
casing.
6.4.4 Fitting the controller bracket
1
Slide the controller bracket (1) over the pipes until it
clicks into place.
6.5 Installing the second solar pump
6.5.1 Connecting the hydraulic lines of the
second solar pump
2
3
4
1
1. Find the control cable of the second solar pump in the
cable harness (3).
2. Route the control cable through the opening in the cas-
ing of the basic module so that you can easily reach it
at a later point.
3. Remove the protective cap from the control cable.
4. Undo the cap nut (4).
5. Undo the screws on the fastening clamps (2).
6. Remove the pipe (1).
