0020149486_04 auroFLOW plus Installation and maintenance instructions 7

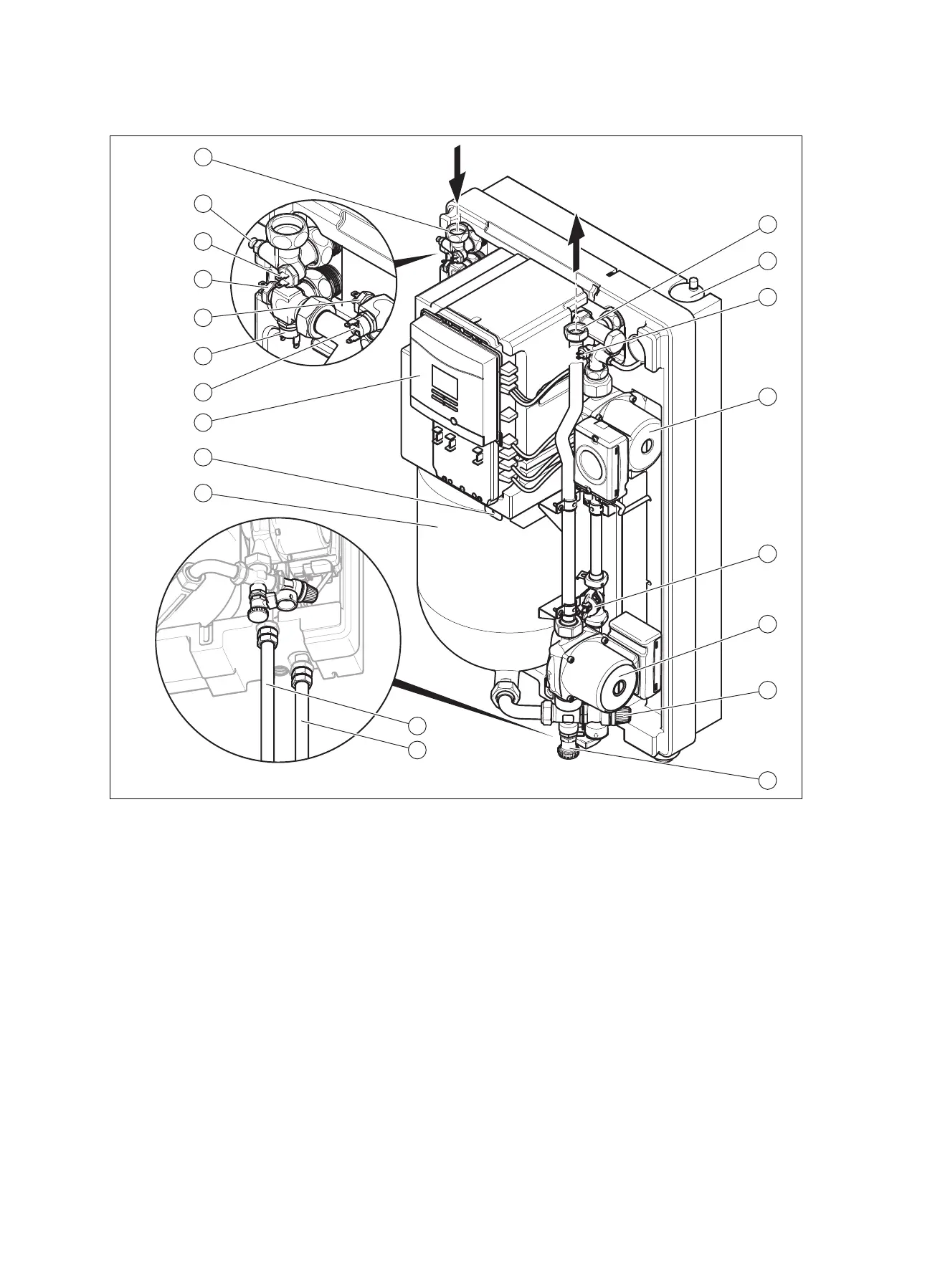

4.1 Design of the auroFLOW plus solar charger (basic module only)
14
13
11
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
12
1 Solar return – 3/4" sleeve (flat-sealing)
2 Cylinder charging circuit automatic air vent
3 Cylinder return temperature sensor
4 Cylinder charging pump
5 Cylinder charging circuit flow sensor
6 Solar pump
7 Solar system expansion relief valve
8 Solar circuit fill and drain connection
9 Cylinder primary pipework
10 Cylinder return
11 Solar fluid storage tank
12 Retainer for front casing screw
13 Solar controller
14 Solar circuit safety temperature monitor
15 Cylinder charging circuit safety temperature monitor
16 Solar return temperature sensor
17 Cylinder primary pipework temperature sensor
18 Solar supply pipe temperature sensor
19 Solar circuit purging valve
20 Solar flow – 3/4" sleeve (flat-sealing)
