Vaillant auroMATIC 560 - Page 17

7Installation Manual auroMATIC 560
230V Netz
F 1
T4
Kol 1-P
Kol 2-P / ZP
LEG/BYP
EP
LP/UV 1
VRS 560
C1 C2
Kol 1
Sp 1
Sp 2
Sp 3
Gain
Kol 2
5 V / 24 V
230 V~
VU / VK

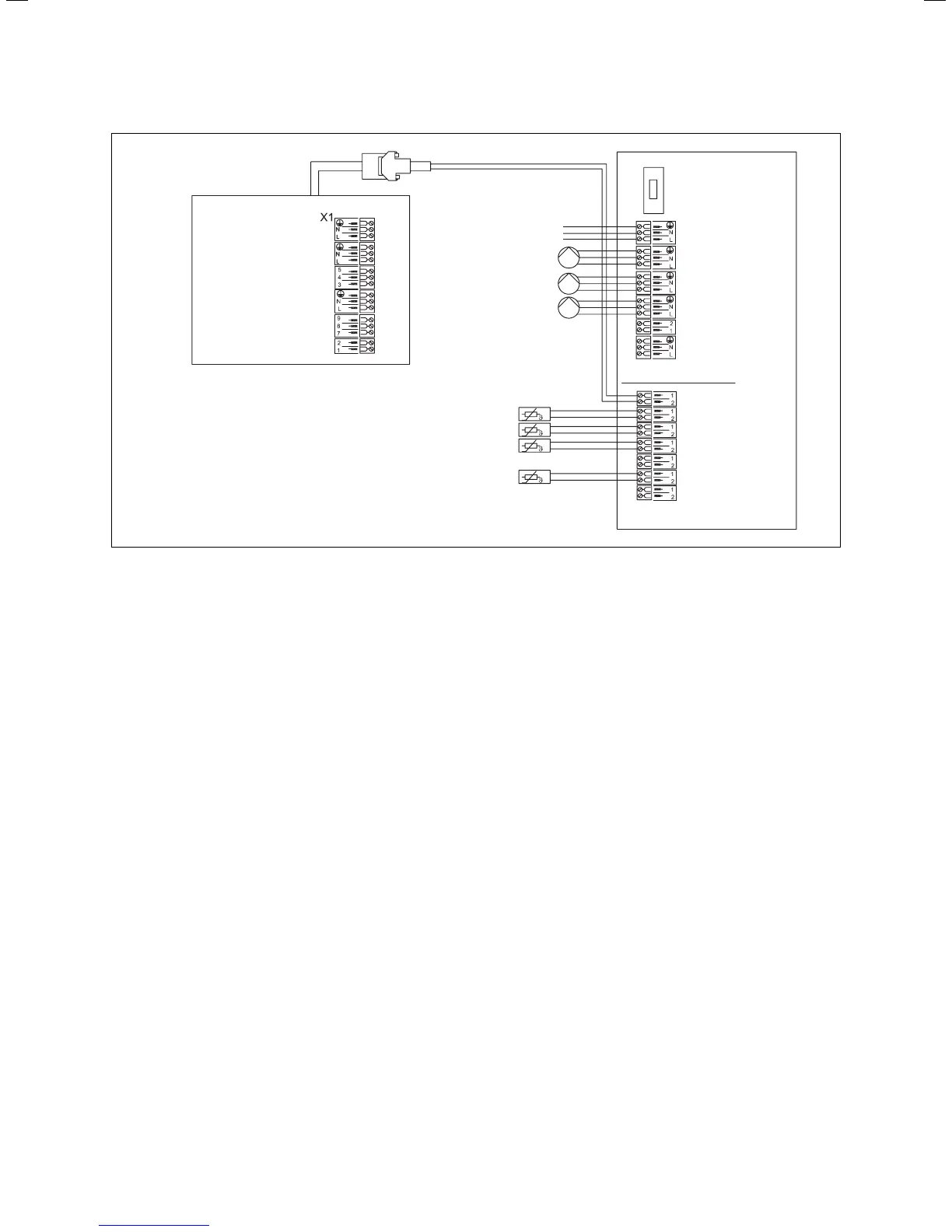

Fig. 5.2 Wiring diagram for hydraulic plan 1
Electrical installation 5
