8 Installation Manual auroMATIC 560
Hydraulic plan 1: Connection of a second cylinder or
swimming pool
Kol1-P
Kol 1
Hg
Sp2
Sp1
S
2
1
LP / UV 1
KW
LegP
SR
Sp3
Sp3
230 V
C1 C2
ZP
EP
Gain
A

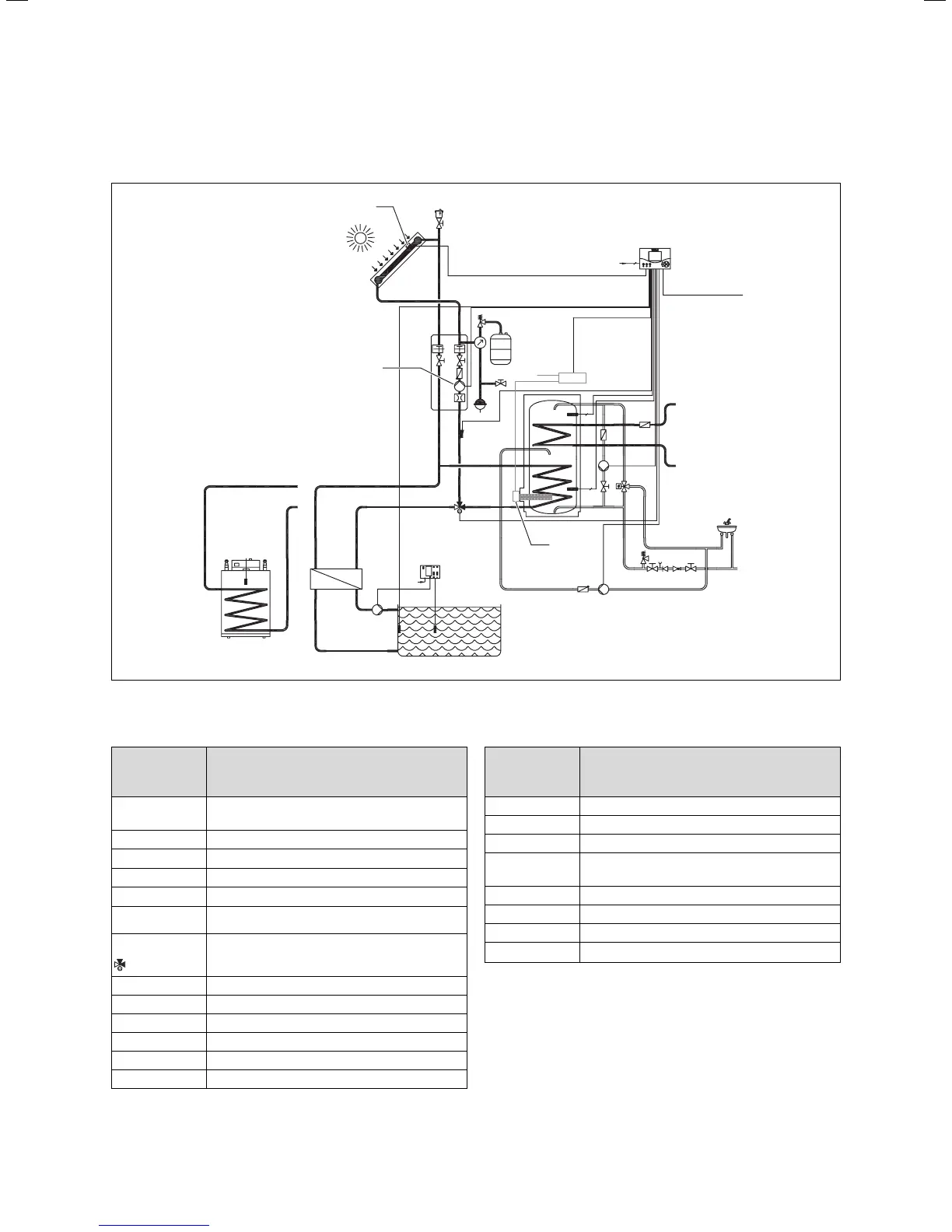

Fig. 5.3 Hydraulic plan 1: Connection of a second cylinder or
swimming pool
Designation in
hydraulic plan/
wiring diagram
Components
C1/C2 Connections for controlling the heater used for
reheating the cylinder
Hg Boiler
KW Cold water
ZP Circulation pump
EP Electric heating rod (optional)
SR Swimming pool controller (provided by cus-
tomer)
LP / UV 1
Switching valve
UV 1 in current-free state
A Alternative connection for second cylinder
Kol1-P Solar circuit pump 1
Kol 1 Collector sensor 1
Ertrag Gain
LegP Anti-Legionnaire’s pump
Sp1 Cylinder sensor 1
Designation in
hydraulic plan/
wiring diagram
Components
Sp2 Cylinder sensor 2
Sp3 Cylinder sensor 3
S Contactor
1 Option: Control contactor for optional electric
heating rod
2 400 V connection, 3 phase
230 V 230 V main power connection
F1 (T4) Fuse holder
VU / VK Heater wiring area
Table 5.3 Key for Fig. 5.3 and Fig. 5.4
5 Electrical installation
