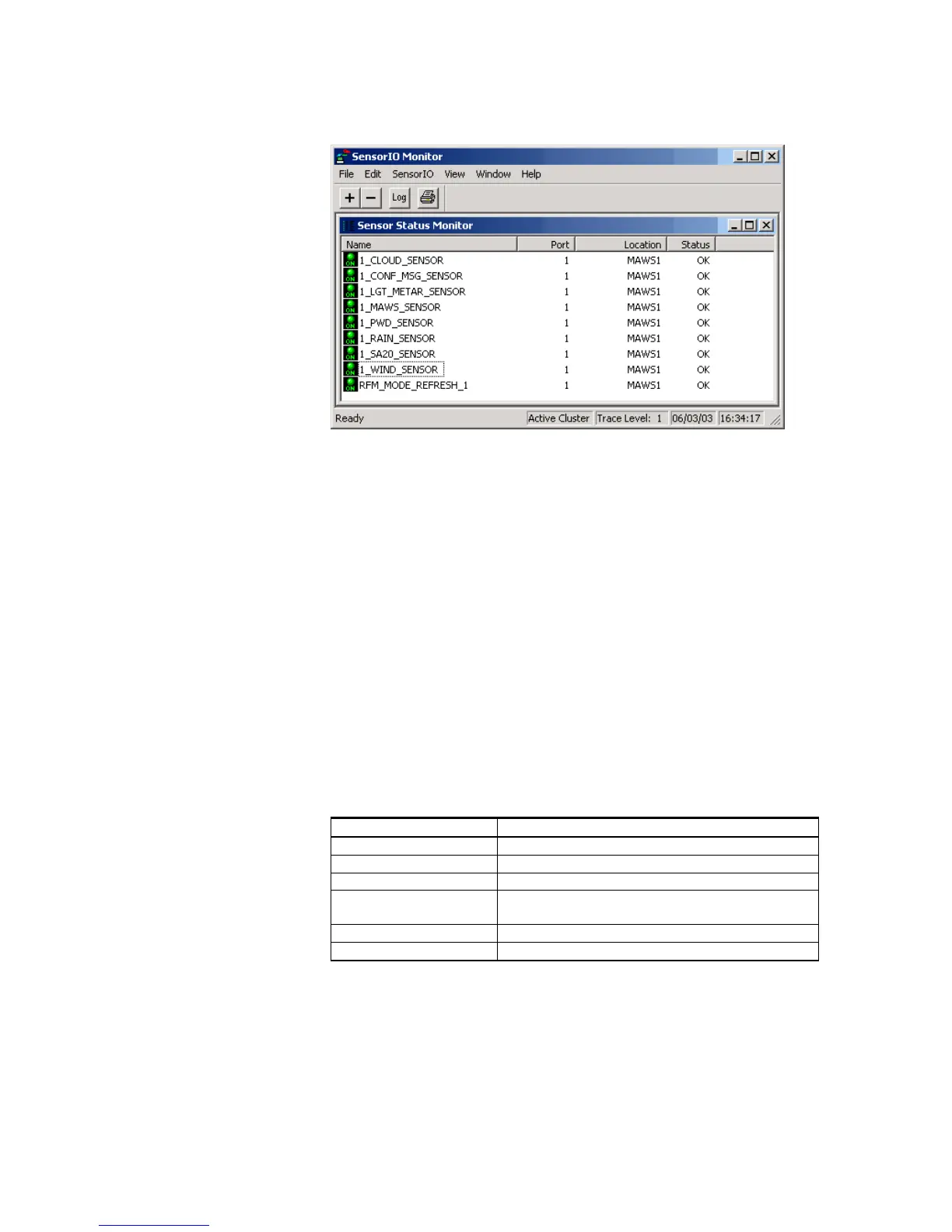

Figure 46 Sensor Status Monitor Window
The columns in Figure 46 above are explained below:
Icon = The connection status icon is the leftmost column on the
window. The LED icons in the column display the status
of each field device configured in the system. The status
information is updated several times a minute. See Table
34 below for details.
Port = The Port column shows the number of the port to which
the sensor is connected.
Status = The Status column shows the sensor status. See Table 35
on page 94 for details.
The colors and text in the connection status icon are explained in
Table 34 below.
Table 34 Explanation of Connection Status Icon
Icon color and text Explanation
Green ON Normal situation. Connection OK.
Yellow Active connection.
Yellow TMIT A lengthy data transfer is on the process.
Red ER Problems in communication between sensors
and CDU.
Gray OFF Sensor is not in use.
Blue CMD Sensor is in maintenance mode.
Table 35 on page 94 explains the different statuses.
