REPLACING THE RADIANTS
Always use the correct type of replacement radiant. Ask for Valor Fires part
number 5132071 (Single Radiant). Turn the fire off and allow it to cool before
attempting to remove the radiants.
Remove the dress guard by pressing down the two hooks at the top. Tilt the guard
forward and lift out (See figure 4).
Lift the radiant upward to clear the metal retaining bar then pull out bottom first.
Fit the new radiant by
inserting its top under the top
lip of the radiant box then
swing the bottom of the
radiant over and behind the
retaining bar. It is important
that the front face of the
radiant should rest against
the front of the retaining
channel. Replace the dress
guard. Locate the bottom of
the dress guard in the two
holes in the bottom panel
apron. Push the guard back
so that the two spring
projections at the top of the
guard engage in the slots
under the front decorative
canopy.
MAINTENANCE
Battery replacement (Electronic ignition).
1. The battery cover is located at the base of the fire on the right hand side.
2. Unscrew the battery cover in an anticlockwise direction.
3. Remove the battery and discard.
4. Remove any protective film from the replacement battery and place into the
generator. The negative ( - ) terminal should go in first. The cap of the generator is
marked with ( + ).
5. Refit the battery cover.
Regular maintenance.
In order to achieve and maintain high levels of personal safety and performance
efficiency, it is essential that the opening at the back of the fire and the flue are kept
clear of any form of obstruction. It is possible that deposits of mortar or soot could fall
OWNER GUIDE

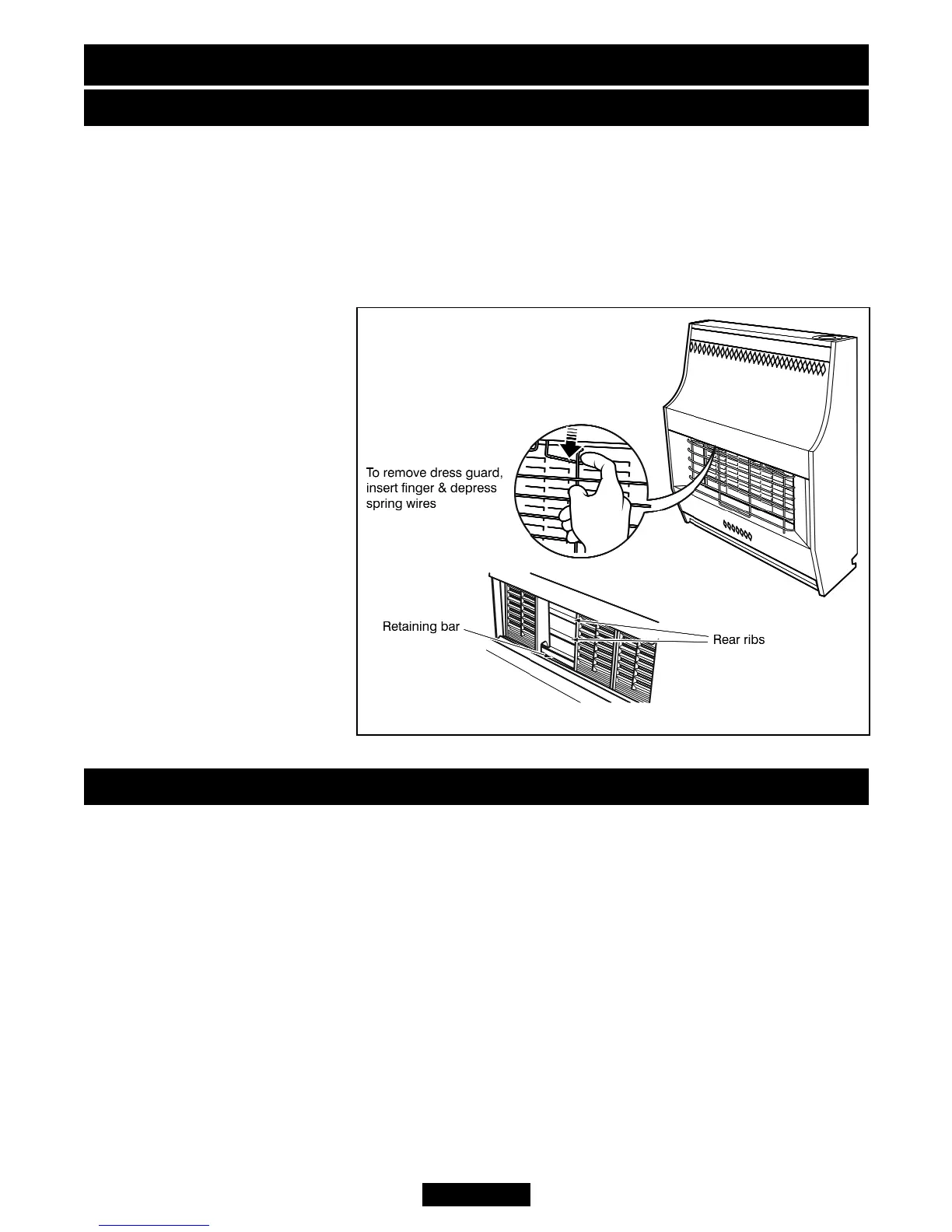

Figure 4.
