15.3 To remove the spillage plate.
1. Remove the fascia as in section 15.1.
2. Detach the spillage plate from the hotbox by
removing the four screws (See figure 31).
3. Replace in the reverse order.
15.4 To remove the inner panel.
1. Remove the fascia as in section 15.1.
2. Remove the burner as in section 15.2.
3. Remove the spillage plate as in section 15.3.
4. Remove the six screws from the side of the
inner panel (See figure 32).
5. Carefully lift the inner panel and pull forward to
remove.
6. Replace in the reverse order.
15.5 To remove the pilot unit.
1. Remove the burner unit (See section 15.2).
2. If turning the burner upside down, ensure
that the work surface is suitably protected. This
will avoid damage to the work surface. Detach
the pilot pipe from the pilot unit.
3. Detach the thermocouple from the gas
valve.
4. Detach the electrode lead from the
underside of the electrode tab.
6. Remove the two screws securing the pilot
unit (See figure 33).
7. Refit in the reverse order.
Note:The pilot unit is an atmosphere sensing
device. It must be replaced as a whole
assembly. Its individual components are
not separately replaceable.
Page 33
© Baxi Heating U.K. Limited 2010.

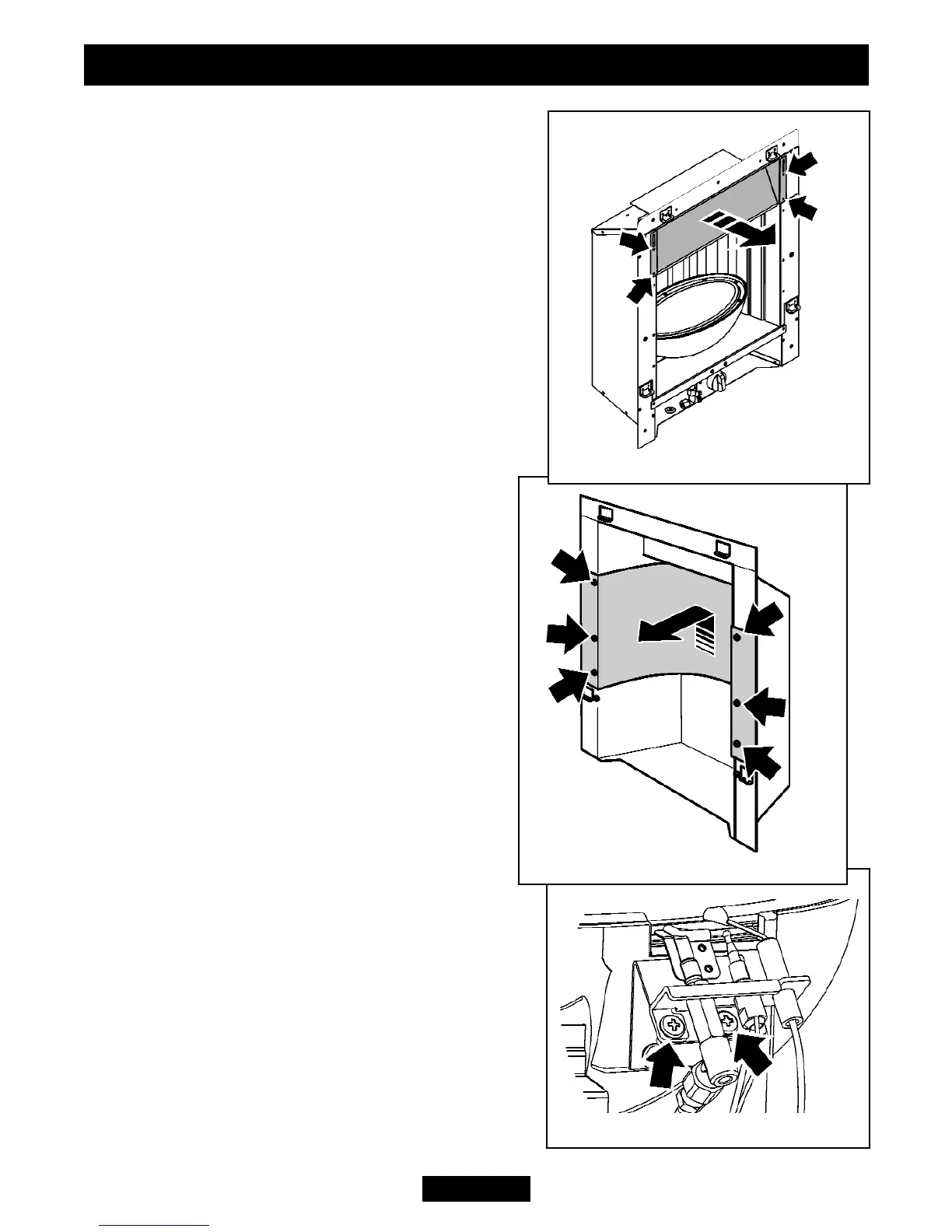

Figure 33. Pilot unit removal
