Valor 534XAP Installation And Owner's Manual

20

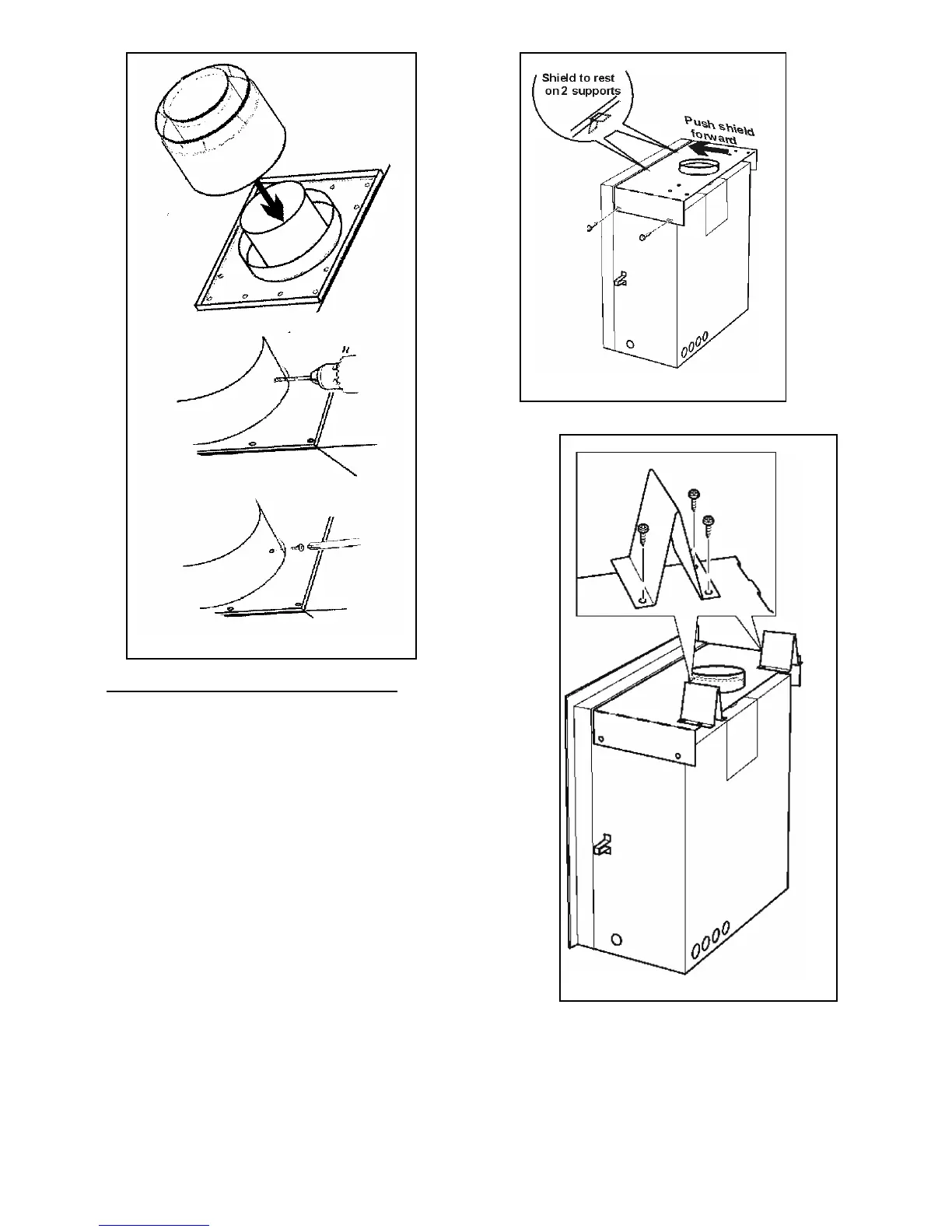

7.5 Top heat shield & Stand-off Fitting
See figures 24 & 25.
1. If installing appliance with top vent outlet remove the plate covering
the vent hole in the top heat shield by unscrewing four screws. If
installing with rear vent outlet, the plate must remain covering the
hole.
2. Remove the screws at the top rear corner of the case sides.
3. If top vent outlet, locate the heat shield over the vent pipe adapter.
4. Support the front of the shield on the two angle supports.
5. Secure the shield to the case sides by refitting the two screws at the top
rear corners and by two screws from the pack fitted near the front.
6. Bend the two top rear stand-offs and fit to the heat shield with three
screws each – see figure 26.
Figure 25 Top & rear Stand-offs
Figure 23
Figure 24 Heat shield
(
Shown for to
p
vent outlet
)
