10. REMOTE CONTROL INSTALLATION
Caution! Don’t connect the batteries to the remote control receiver until the wires are
connected to the burner control unit, as short circuit could result in destruction of the
electrical components.
When installing the remote please refer to figures 37 and 38 below.
• Connect the wiring harness to the receiver box, by pushing the wire connector on to the receiver circuit
board. The plug will only go on one way so please ensure that the wires are pointing up and slot in the
board is inline with the tab on the wiring harness plug
• Connect wires “A” (with the “L” terminals) to the connectors “B” on the control valve Please note that the
connectors are different sizes, the smaller
one fits to the lower connection on the
valve.
• Connect the wires “C” to the connectors
“D” on the control valve. (Either wire can
be fitted to either connector).
• Remove the remote control receiver lid.
• Fit four 1.5V batteries.
• Place the remote control receiver on the
“Velcro” pad.
• Fit the 9V battery to the handset
transmitter
Remote control operating instructions are on
page 31 of this manual and are supplied with
the remote control kit.

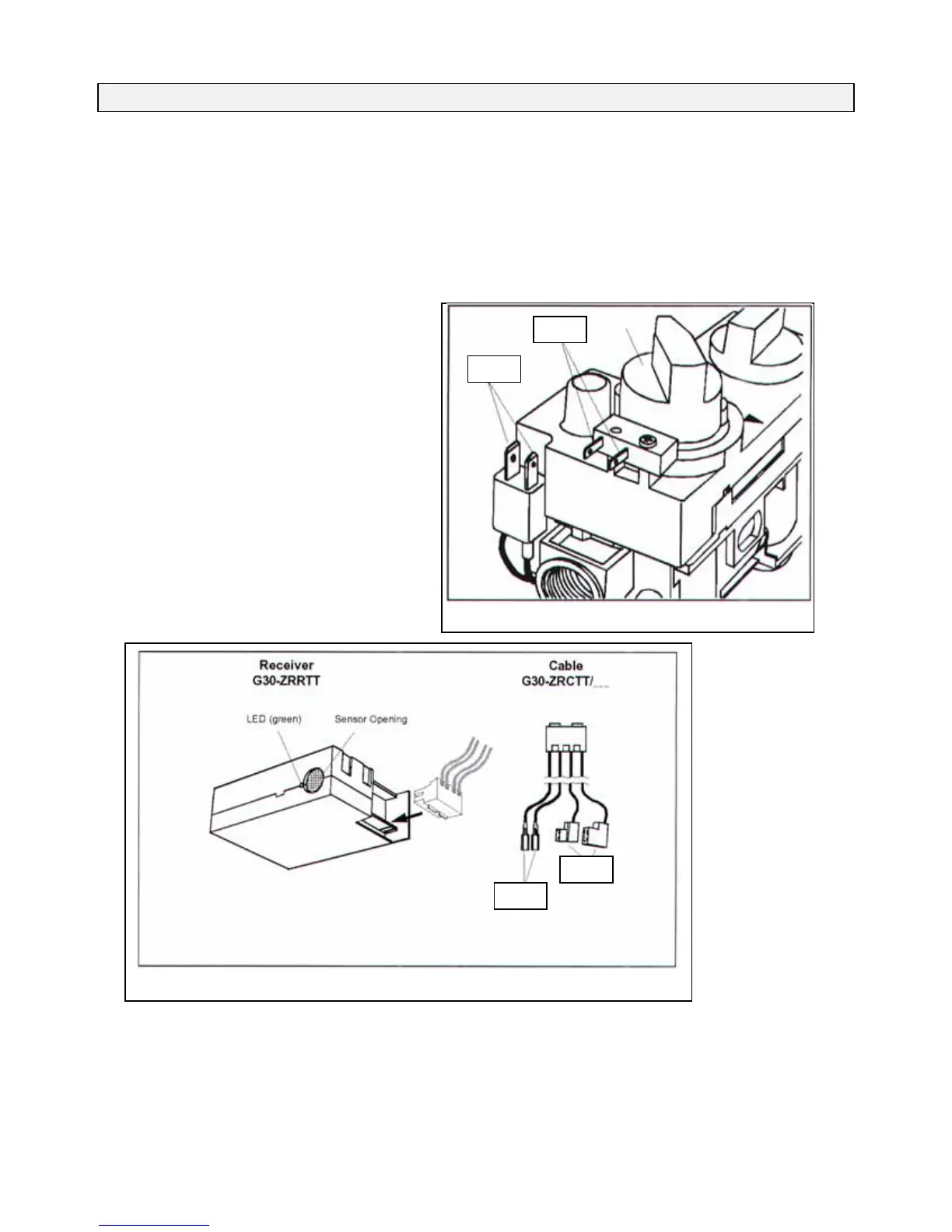

Figure 37 Valve connections
Figure 38
“D”
“B”
“A”
“C”
