7.8 Attaching Rear Ceramic Support
Fit the rear ceramic support to the firebox back
panel with three screws. See figure 29.
7.9 Attaching to the Framing
1. Place the heater in position in the framing.
2. Secure the side support angles to the side
studding through two holes each side with the
woodscrews supplied. The top support angle
should abut the wall finish but is not fixed to
the framing.
3. Check the wall finish requirements with the
homeowner. If necessary, adjust the position
of the heater so that the distance from the
front of the heater case to the angles is
suitable for the thickness of the wall finish
(e.g. tile, etc.) – see figure 30

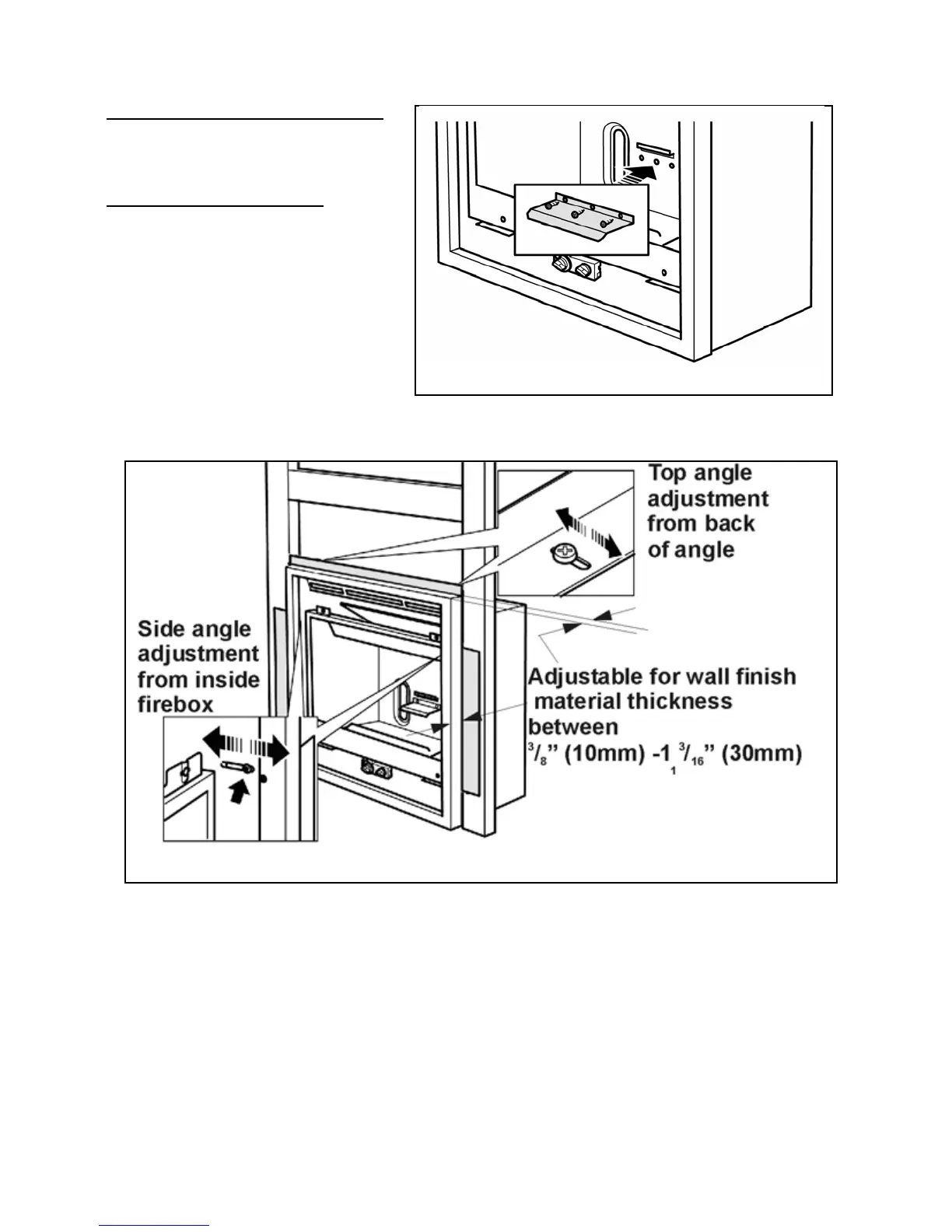

Figure 29 Rear ceramic support
Figure 30 Adjustment for wall finish
