APPLIANCE DIMENSIONS
Page 46
© GDC Group Ltd. 2014
OWNER GUIDE

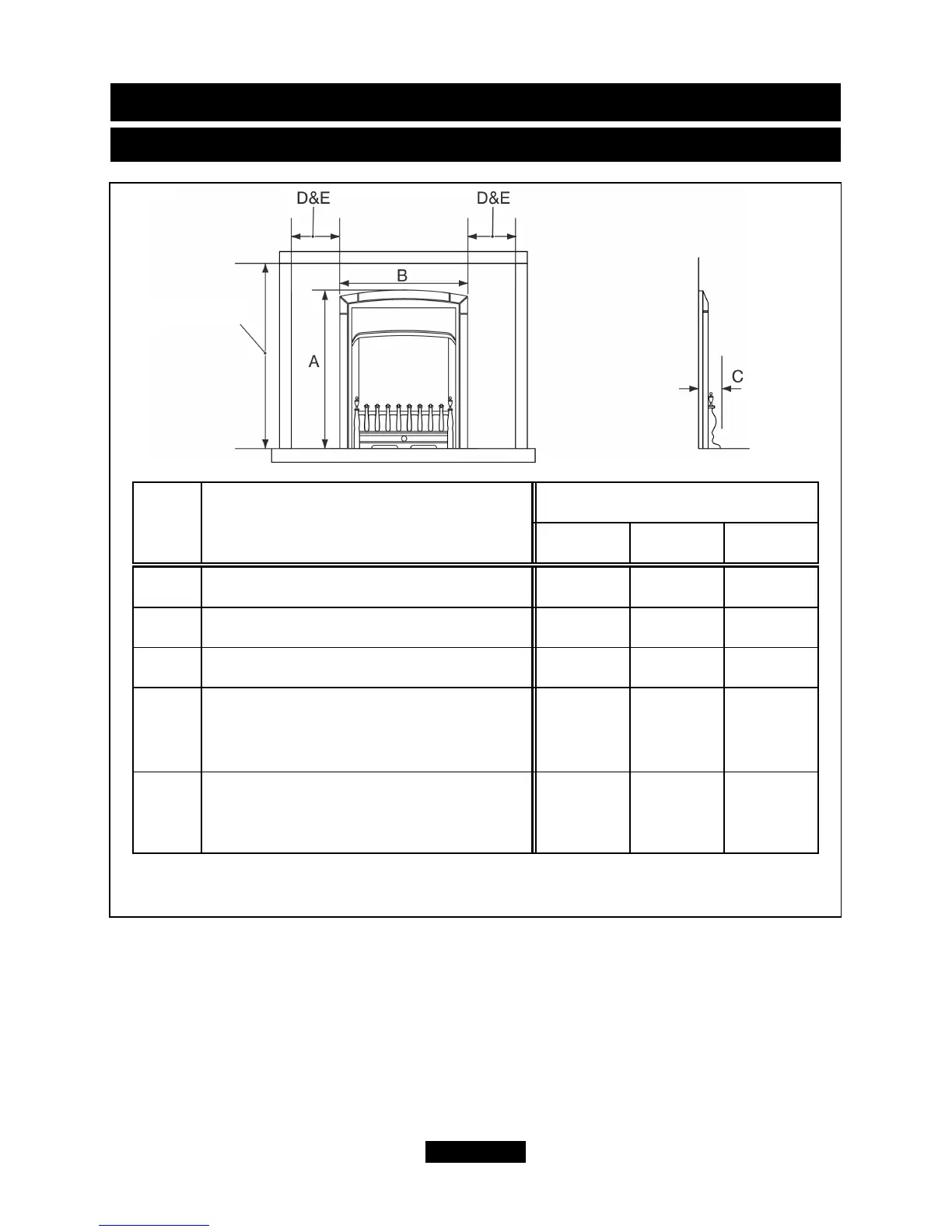

Figure 2. Appliance dimensions and clearances (Fire dimensions are subject to
manufacturing deviation) Fascia may differ from that shown
Key Description
Model
Masquerade
Excelsior Dream
A Appliance height (mm) 635 635 635
B Appliance width (mm) 518 518 518
C Appliance depth into room (mm) 104 133 135
D
Minimum mandatory clearance to
combustible surfaces projecting
beyond the front of appliance (mm).
102 102 102
E
Recommended clearance to non-
combustible surfaces for access
purposes (mm).
51 51 51
See figure 1.
