3.9.2 The minimum allowable distance from the outside of the appliance fascia to a
corner wall having combustible material or any other combustible surface which
projects beyond the front of the appliance is shown in figure 4.
A 10mm access clearance from a non-combustible surface is necessary at the left
side (See figure 4).
INSTALLER GUIDE

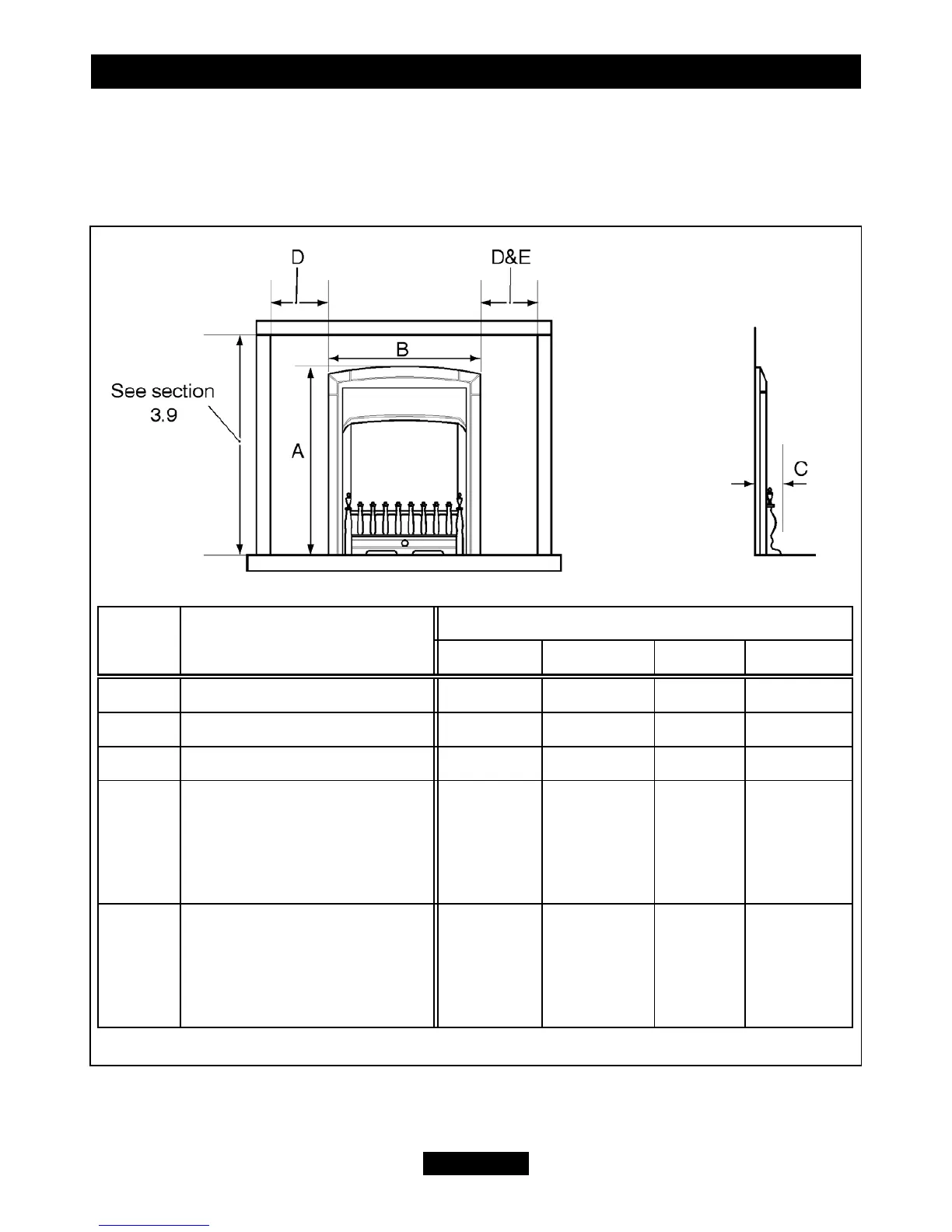

Figure 4. Appliance dimensions and clearances
Key Description
Model
Adorn Visage Icon Dream
A Height (mm) 768 611 622 636
B Width (mm) 545 529 631 518
C Depth into room (mm) 88 94 64 94
D
Minimum mandatory
clearance to combustible
surfaces projecting beyond
the front of appliance (mm).
100 108 65 100
E
Recommended clearance
to non-combustible
surfaces for access
purposes (mm).
10 10 65 50
