3.9 Fireplace clearances.
3.9.1 Adorn model only
The minimum height from the base of the fireplace opening to the underside of any shelf
made from wood or other combustible materials is shown in figure 2.
Visage, Dream and icon models only.
The minimum height from the base of the fireplace opening to the underside of any shelf
made from wood or other combustible materials is shown in figure 3.
© GDC Group Ltd. 2011
Page 12
INSTALLER GUIDE

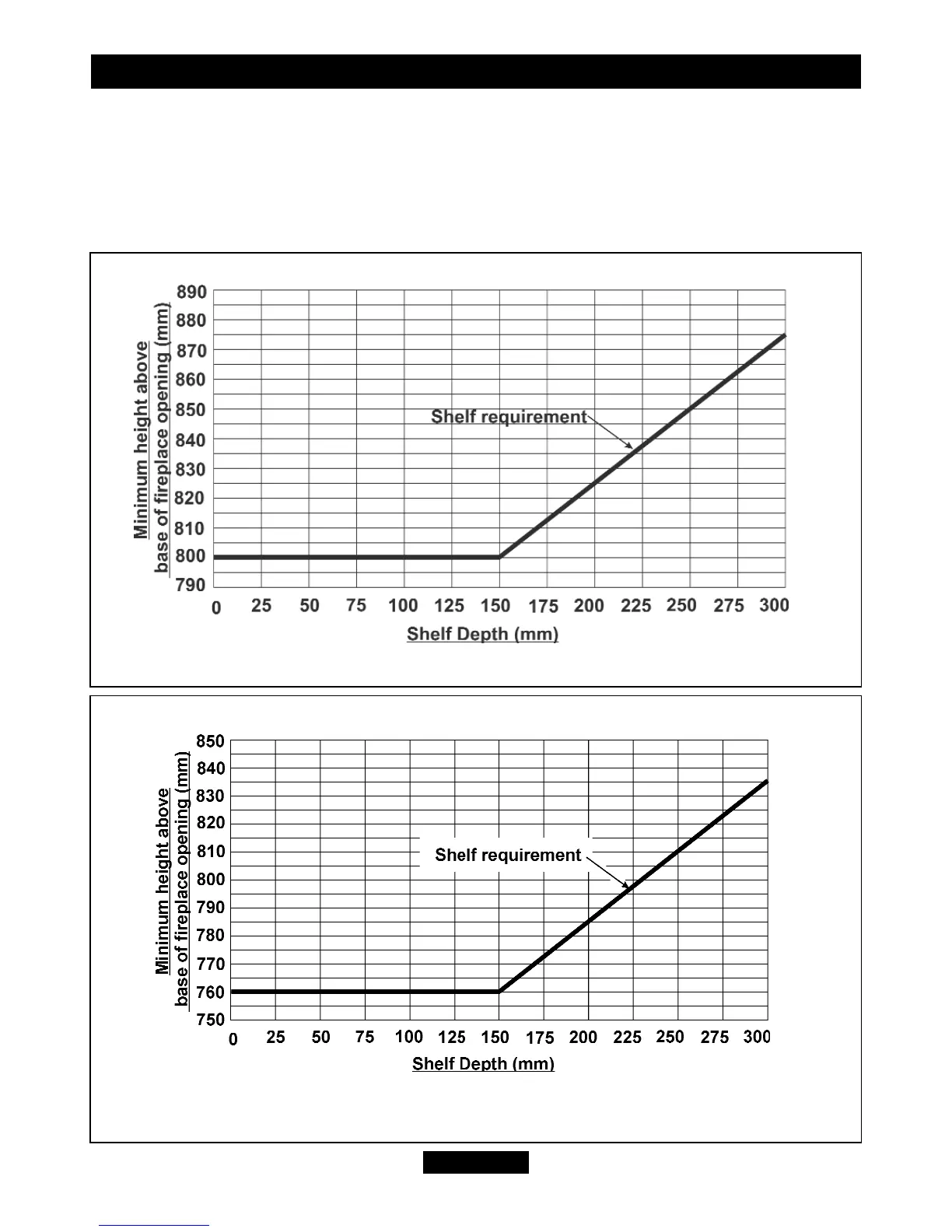

Figure 2. Combustible shelf clearances for ADORN model only
ADORN MODEL ONLY
VISAGE, DREAM AND ICON MODELS ONLY
Figure 3. Combustible shelf clearances for VISAGE, DREAM and ICON models
only.
