APPLIANCE DIMENSIONS AND CLEARANCES
© GDC Group Ltd. 2011
Page 52
OWNER GUIDE

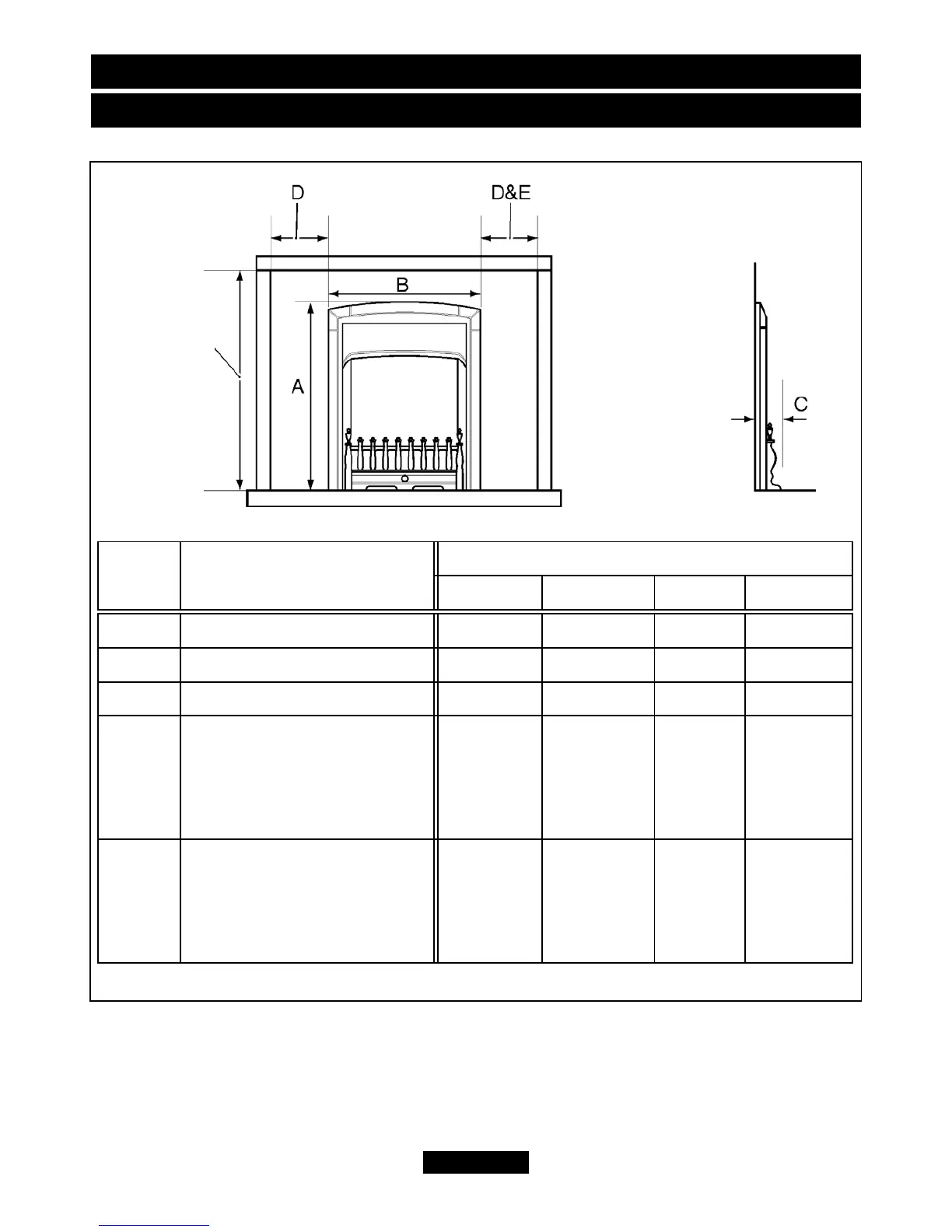

Figure 3. Appliance dimensions and clearances
Key Description
Model
Adorn Visage Icon Dream
A Height (mm) 768 611 622 636
B Width (mm) 545 529 631 518
C Depth into room (mm) 88 94 64 94
D
Minimum mandatory
clearance to combustible
surfaces projecting beyond
the front of appliance (mm).
100 108 65 100
E
Recommended clearance
to non-combustible
surfaces for access
purposes (mm).
10 10 65 50
See figure
1 & 2
