13.3 Fitting the Blenheim firefront.
1. Place the firefront / casting on top of the hearth centrally between the fascia.
2. On models with a two piece firefront place the lower front cover casting / ash pan
below the front casting.
13.4 Fitting the Seattle/Siva firefront.
1. Place the firefront on top of the hearth centrally between the fascia.
2. The Siva has two additional magnets suppied. These can if necessary be used to
hold the firefront in place to the inside faces of the fascia. Place the two magnets at
the rear either side of the firefront where the return bends are located. This will assist
when fitting into the fascia.
Page 31
© GDC Group Ltd 2014
INSTALLER GUIDE

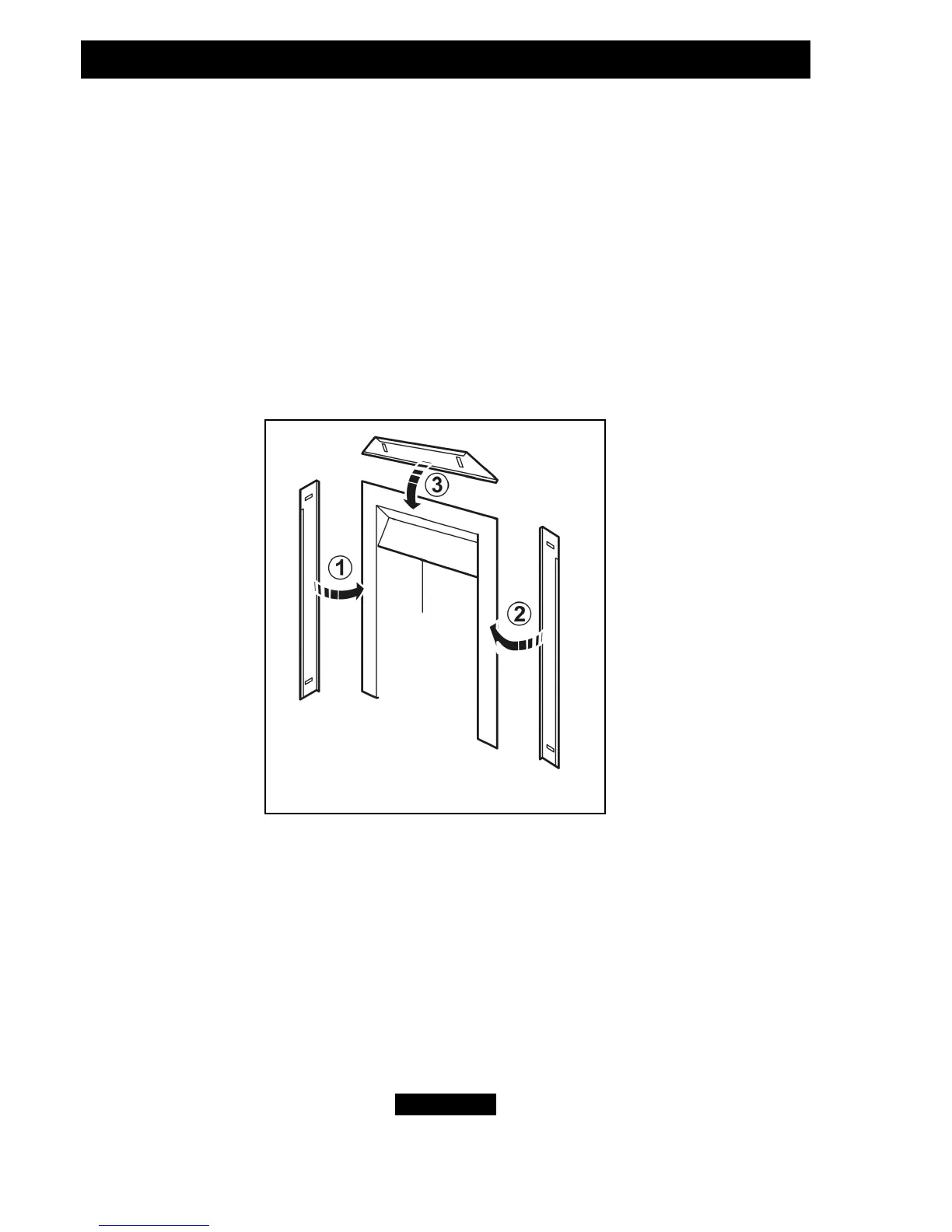

Figure 23. Fitting the magnetic fascia
