APPLIANCE DIMENSIONS AND CLEARANCES
Page 42
© GDC Group Ltd 2014
OWNER GUIDE

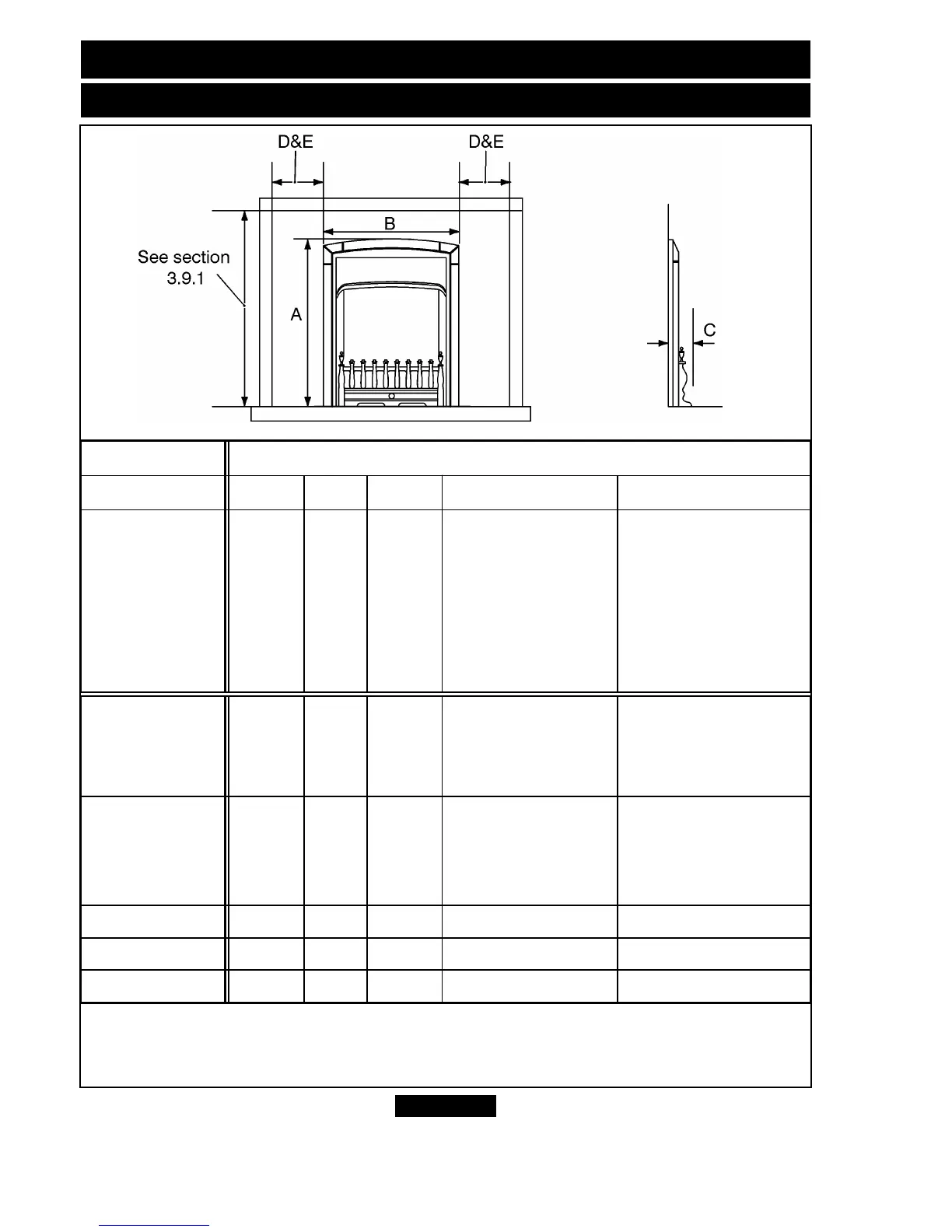

Figure 2. Appliance dimensions and clearances (Fascia may differ from that shown)
(The appliance dimensions ‘A’, ‘B’ & ‘C’ shown in the table are subject to
manufacturing tolerance)
Key
A B C D E
Model
Height
(mm)
Width
(mm)
Depth
into
room
(mm)
Minimum
mandatory
clearance to
combustible
surfaces projecting
beyond the front of
appliance (mm).
Recommended
clearance to non-
combustible
surfaces for access
purposes (mm).
Blenheim 587.5 450 85 100 10
Seattle 587.5 450 63 100 10
Siva 590 455 80 100 10
Whitsbury 588 450 73 100 10
