5 Mounting and connecting
5.1 Surface mounted reader
Use drills and screws appropriate for the surface which the reader is to be mounted
upon. The surface should be flat to ensure a close fit. To attach the base to the wall:
1.
Make a small hole in the base gasket. The cables will be pushed through this hole.
2.

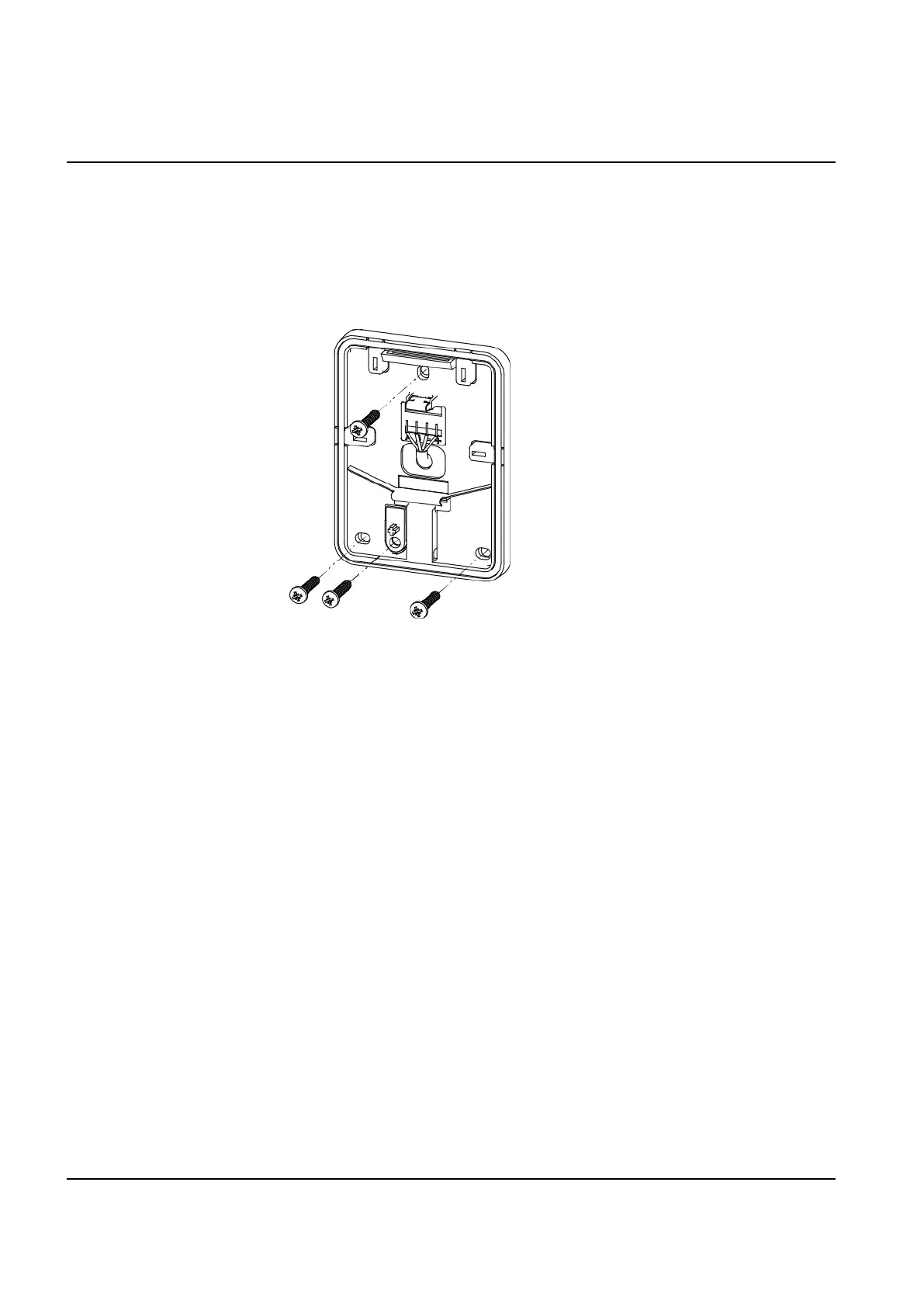

Attach the base to the wall with three screws: one in the middle at the top of the
base, and two in the corners at the bottom of the base.
3.
In case that the removal from wall tamper protection is required, fix the screw into
the hole under the tamper base. Ensure to not use excessive force since this can
damage the tamper base.
4.
Continue to follow the instructions "Connecting the cables" on page15.
