VARI❋LITE - VL2200 SERIES SPOT LUMINAIRE USER’S MANUAL
100 22-May-01 02.9673.0001 A
4. Locate end of coiled spring which is fitted under carrier tab. Using hook and
pick tool or small slotted screwdriver, push end of spring from under tab
until it is free. Once free, remove entire coiled spring.
CAUTION: Do not touch gobos with bare fingers. Wear cotton gloves or other
covering while replacing. Clean with glass cleaner and soft cloth if required.
5. Remove gobo.
6. Aligning flat side correctly and orienting “black” side of gobo toward front
lens, install new gobo.
7. Re-install spring, ensuring it is fully secured under carrier tabs.
8. Re-install removable cover.

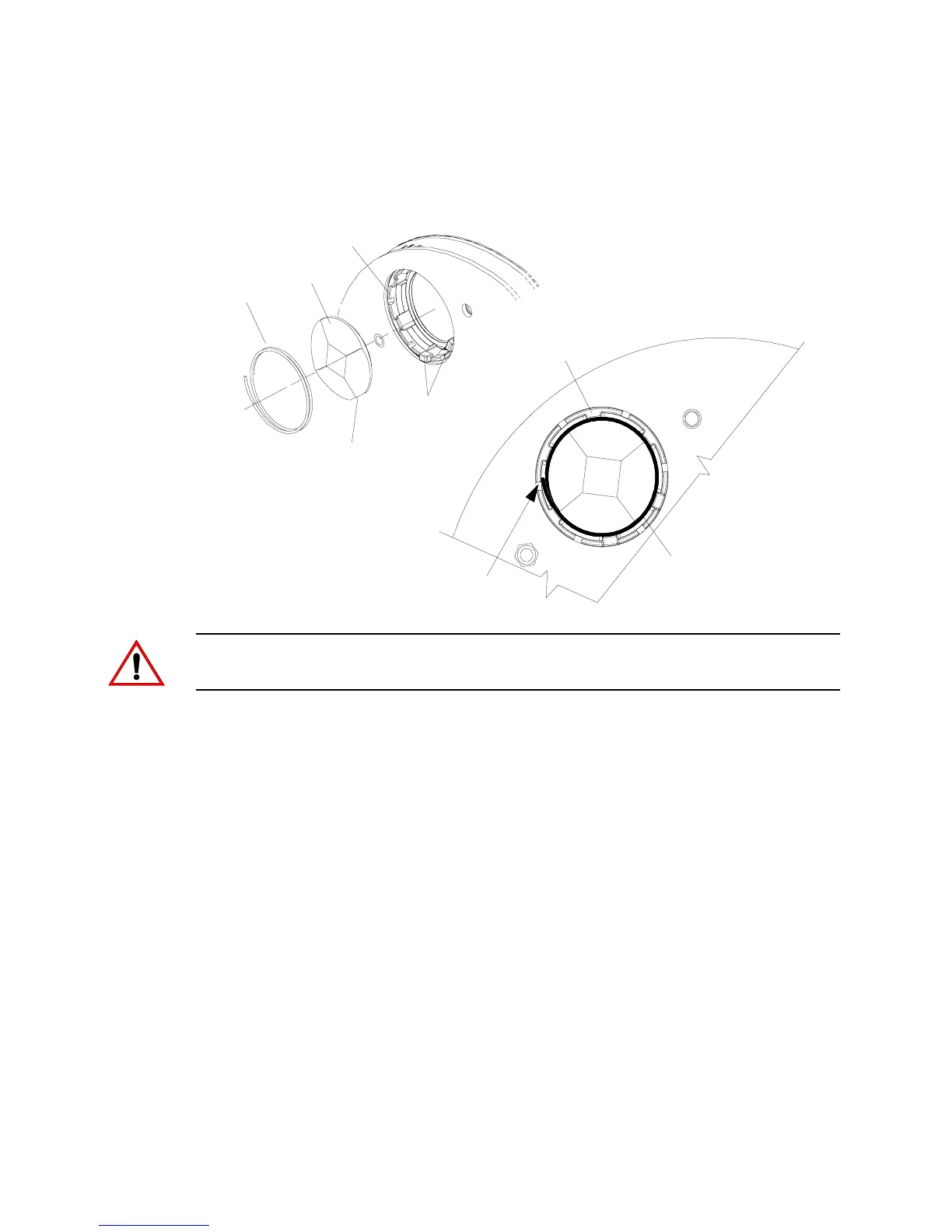

Spring
Gobo
Carrier
Tab
Free end of spring
and then remove
Flat side
Orient flat side to
flat side of carrier
Flat Locator
Markers
Spring
To Next Page
