TROUBLESHOOTING AND MAINTENANCE : ROUTINE MAINTENANCE
A
02.9673.0001 A 22-May-01 97
Fixed Gobo Replacement
WARNING: Remove power from luminaire before performing maintenance.
Tools:
Screwdriver, Phillips #2
Cotton gloves
To remove and replace a fixed wheel gobo:
1. Remove power from luminaire.
2. At removable cover, using #2 Phillips screwdriver, turn two captive screws
one-quarter turn and remove cover. (It will remain attached by tether and
lamp wires.)

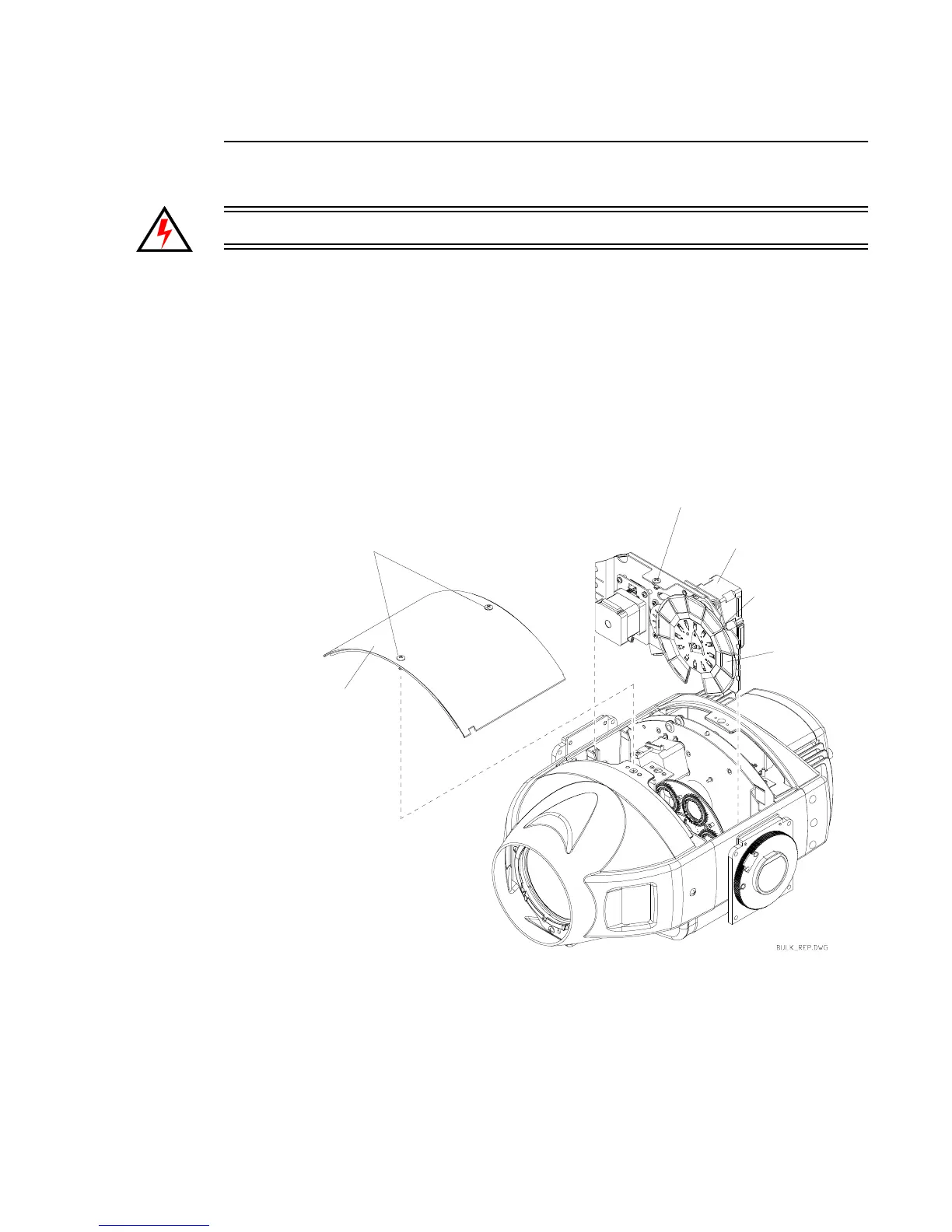

Captive Screws
Removable
Cover
Color/Gobo/Link
Iris Bulkhead
Fixed
Bulkhead Captive Screw
Finger Access
Cutout
Gobo Wheel
To Next Page
