INSTALLATION : POWER AND DATA CABLING REQUIREMENTS
2
02.9673.0001 A 22-May-01 15
Male Termination Connector
A male XLR termination connector is required across (+) and
(-) data lines at the final luminaire or device in a data link. To
construct your own connector, you will need the following
components:
• 5-pin, male XLR connector.
• 1/4W 5% 120 ohm resistor.
Note: A male termination connector is available as an accessory from Vari-Lite. See
“Accessories” on page 107.
Female Termination Connector
When transferring software versions from luminaire to
luminaire, a female XLR termination connector is required at
the “master” luminaire. To construct your own connector, you
will need the following components:
• 5-pin, female XLR connector.
• Two 1/4W 5% 120 ohm resistors.
Note: A female termination connector is available as an accessory from Vari-Lite.
See “Accessories” on page 107.
Loopback Connector
When transferring software versions from luminaire to
luminaire, a loopback connector is required at the final
luminaire in the data link. To construct your own connector,
you will need the following components:
• 5-pin, male XLR connector.
• Two small segments of 22AWG wire.
Note: A loopback connector is available as an accessory from Vari-Lite. See “Acces-
sories” on page 107.

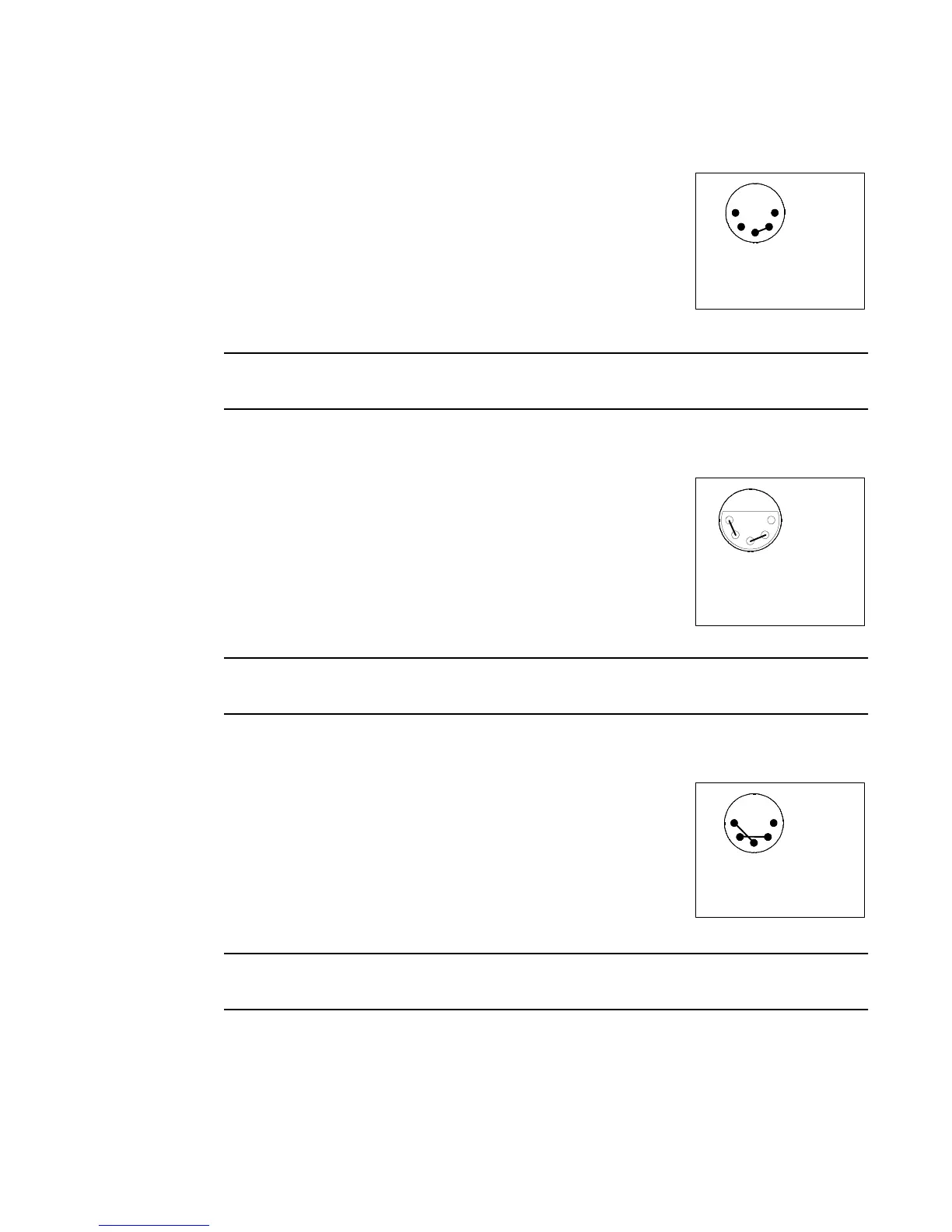

Solder resistor
across pins 2 & 3
BACK
VIEW
1
2
3
4
5
Solder resistor
across pins 2 & 3,
BACK
VIEW
and 4 & 5
1
2
3
4
5
Solder wires across
BACK
VIEW
pins 2 & 4 and 3 & 5
1
2
3
4
5
