TROUBLESHOOTING AND MAINTENANCE : ROUTINE MAINTENANCE
A
02.9673.0001 A 22-May-01 95
Color Filter Replacement
WARNING: Remove power from luminaire before performing maintenance.
Tools:
Screwdriver, Phillips #2
Cotton gloves

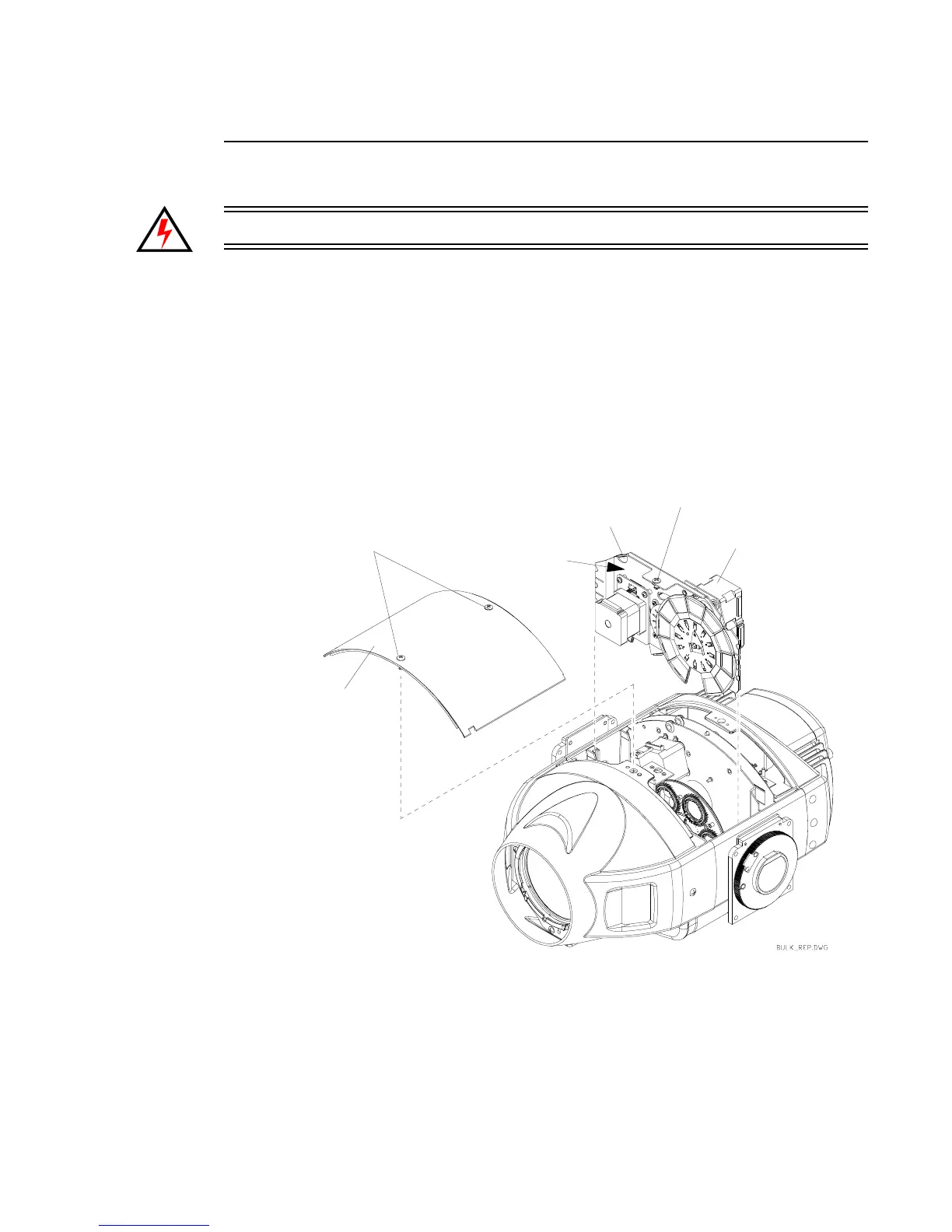

To remove and replace a color filter:
1. Remove power from luminaire.
2. At removable cover, using #2 Phillips screwdriver, turn two captive screws
one-quarter turn and remove cover. (It will remain attached by tether and
lamp wires.)
Captive Screws
Removable
Cover
Color/Gobo/Link
Iris Bulkhead
Color Wheel
Bulkhead Captive Screw
Finger Access
Cutout
(behind plate)
To Next Page
