VAT 670 Series - 3 Design and Function; Design; Function

DESIGN AND FUNCTION Series
670
8/39 Edition 2018-06-19 943070EA
3 Design and Function

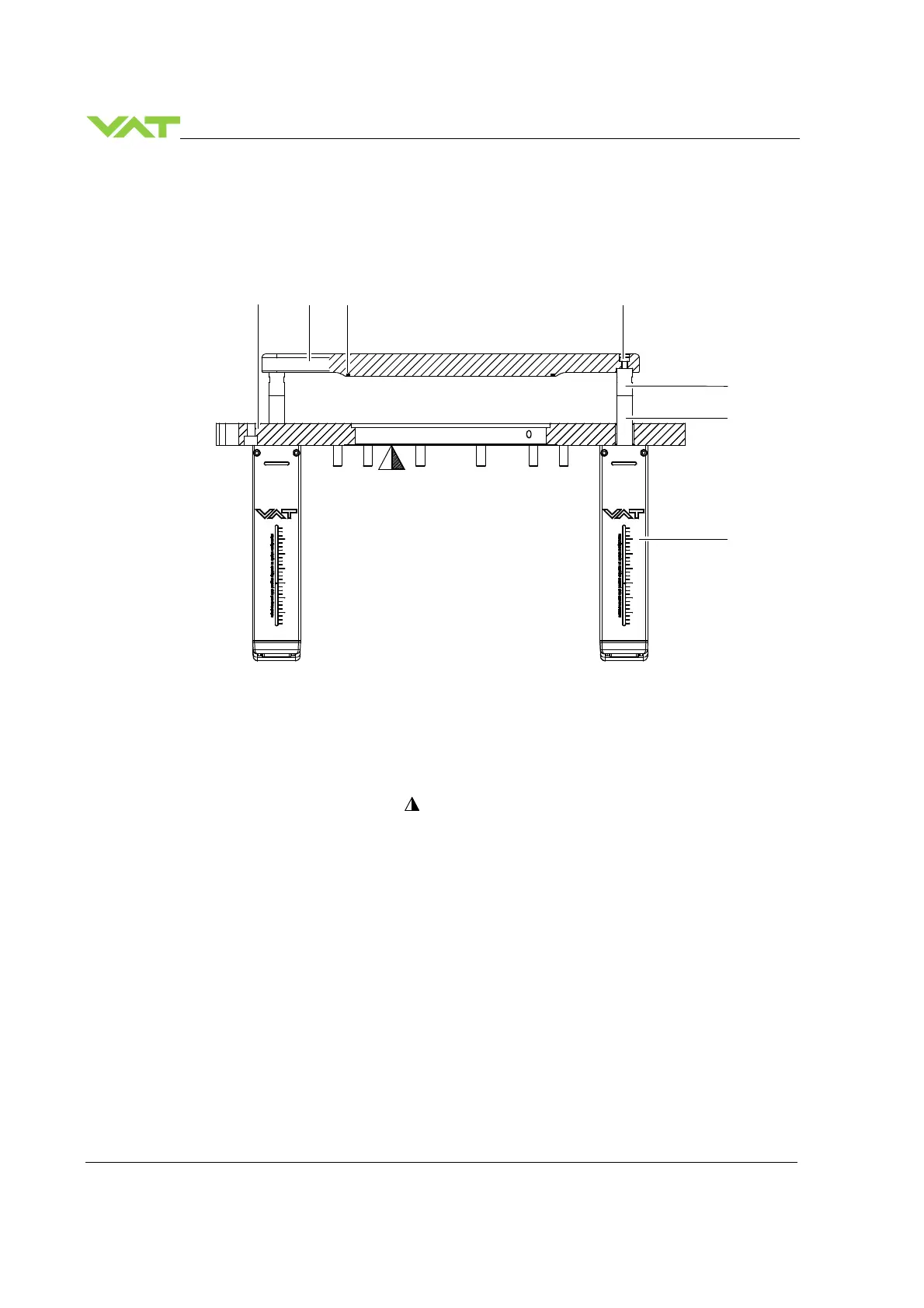

3.1 Design
Sample picture
1 Flange 5 Intermediate piece
2 Plate 6 Actuator shaft with bellows
3 Plate seal 7 Actuator (stepper motor)
4 Plate screw Valve seat side
3.2 Function
The valve plate (2) acts as a throttling element and varies the conductance of the valve opening. The
controller calculates the required plate position to achieve the set point pressure. Actuation is
performed by two synchronous stepper motors (7). Encoders monitor the position. This principle
ensures fast and accurate process pressure control.
5
2
3
4
1
7
6
