A.1 LED Indicators
The EzSensor Hardware Controller has two LED indicators that show its functional status.

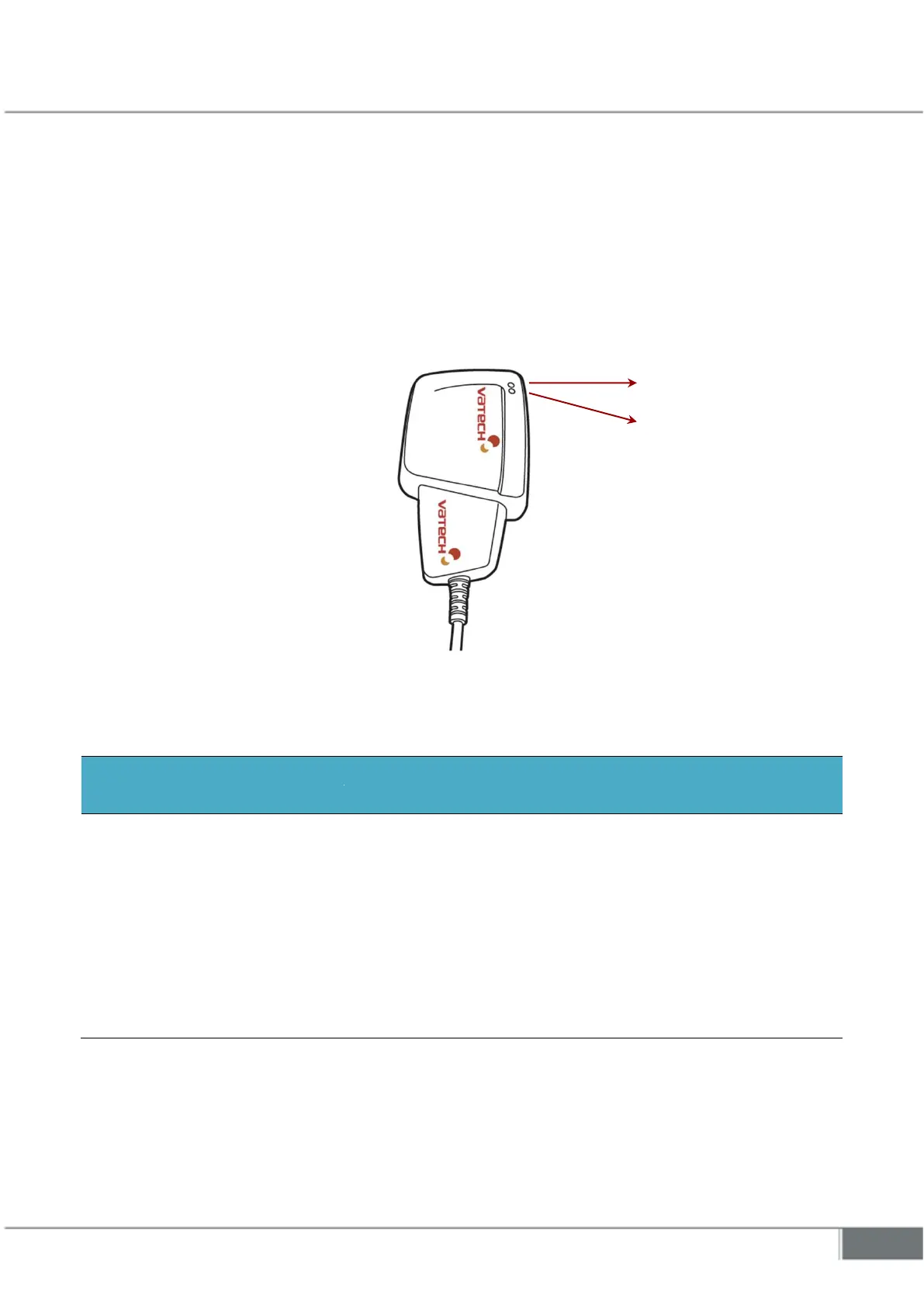

The location of the LED lights is as shown in the following illustration and described in Table 3.
<Table 3. Description of LED Indicators>
Operational State
LED State
Functional Status
Confirmation
LED 1
LED 2
Initial State
Green
Off
USB Connection
Standby
Green
Green
Capture standby
Trigger (X-ray On)
Orange
Green
X-ray On and Sensor Trigger On
Data Transmission
with the USB PC interface cable
Green
Orange
Confirm data transmission
with the sensor board
Image acquisition
Green
Off
Completion of data transmission
(Return initial state)
LED 1
LED 2
