128 PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual
C. Limiting the Column Height
This section explains how to limit the column height within the permissible range.

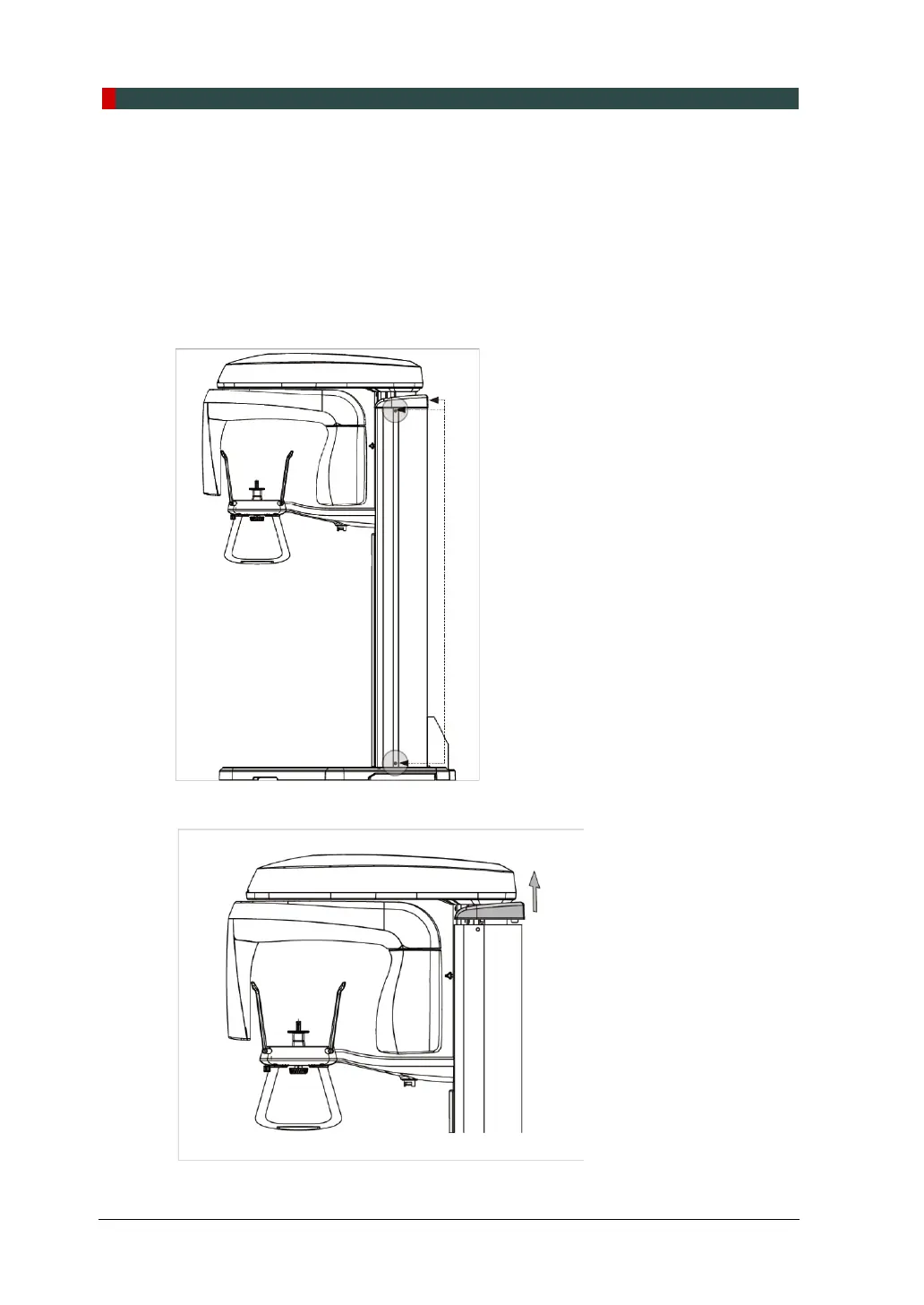

1. Measure the ceiling height in the X-ray shield room: H
ceiling
< Removing the column covers >
2. Remove three Fixing Bolts as shown in the figure.
1. Remove the Column Rear-Top Cover as shown in the figure.
To Next Page
