4. Installing the Equipment: Base Stand (Optional)
PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual 47
English

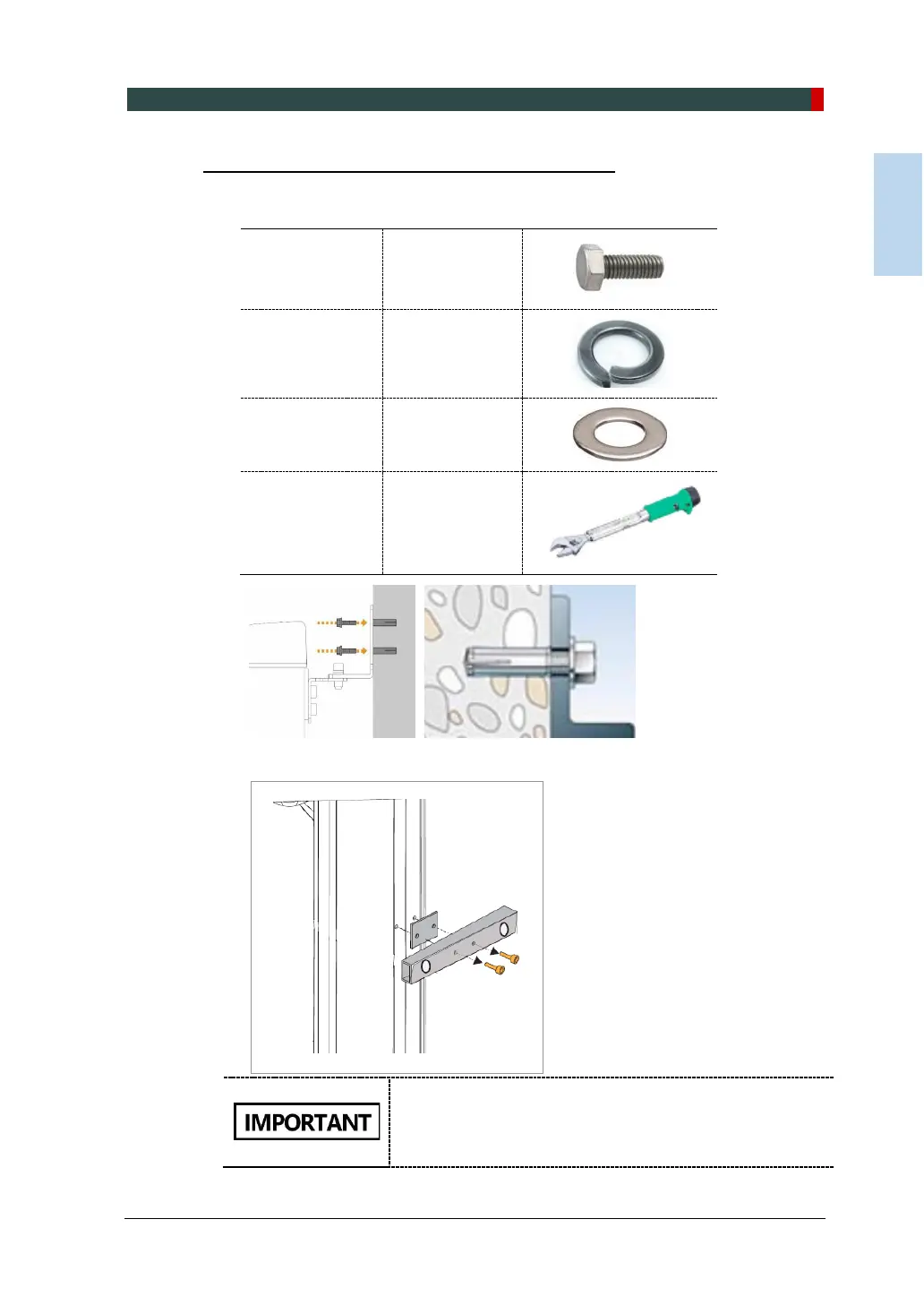

Combining the Equipment with the Anchor Bolts
1. Place the equipment on the alignment plate, while observing 4 Hex bolts are
being inserted properly through each hole.
Hex Bolt
M8 x 15
Spring Washer
M8
Flat Washer
M8
Torque Wrench
Spanner type
2. Remove the middle carrying handle.
If the CEPH unit is to be installed, this is used as the
carrying handle. Do not detach it until indicated later after
the equipment is moved to the installation site
