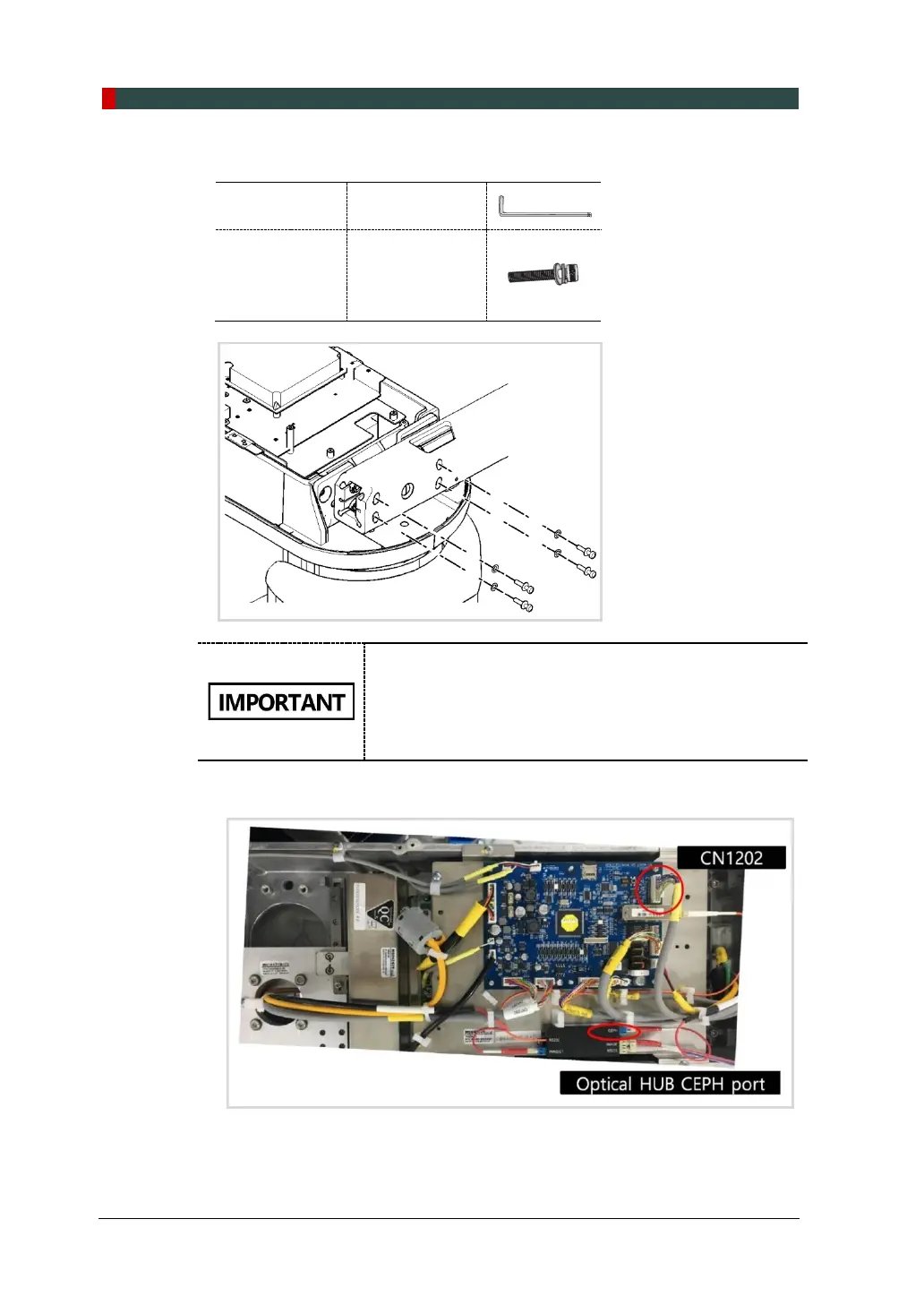

4. Installing the Equipment: Base Stand (Optional)
50 PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual
4. Tighten the four wrench bolts to attach the base unit.
Allen Wrench
6 mm / 0.24”
Wrench Bolt
M8 x 45
w/ Spring and
Flat Washers
(Part No. 25)
▪ When fastening a bolt, make sure that the cable is not
stuck on the surface.
▪ When removing the semi-transparent tape, be careful
not to scratch the surface of the equipment.
5. Connect the cable to the CEPH unit and main unit.
