4. Installing the Equipment: Base Stand (Optional)
62 PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual

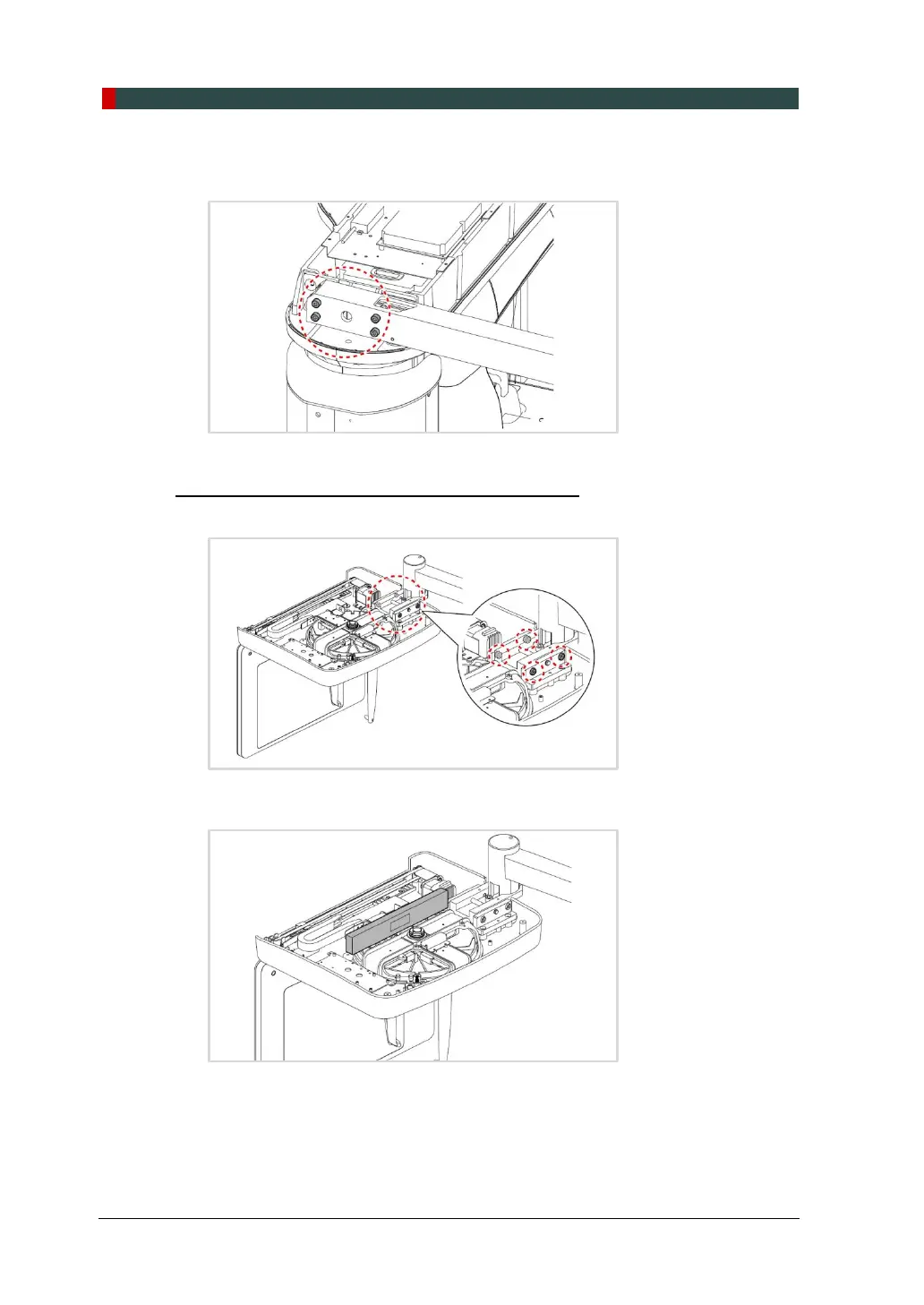

3. When the aligning is completed, tighten four Wrench Bolts (M8) of the Main unit
fully.
When the Ceph unit is tilted to the front or back
1. Untighten four Wrench Bolts (M8) of the Ceph unit slightly.
2. Align the level of the Ceph on both the front and back sides unit until the bubble
on the Spirit Level centers in the middle, by adjusting the Align Bolt (M10).
To Next Page
