Appendix A
PaX-i Plus / Insight Installation Manual 125
Procedures
<The individual cable length:>
Signal Cable: 5m/198”
Door interlock cable: 5m/198”
Warning lamp: 1m/40”
Power source cable: 1m/40”

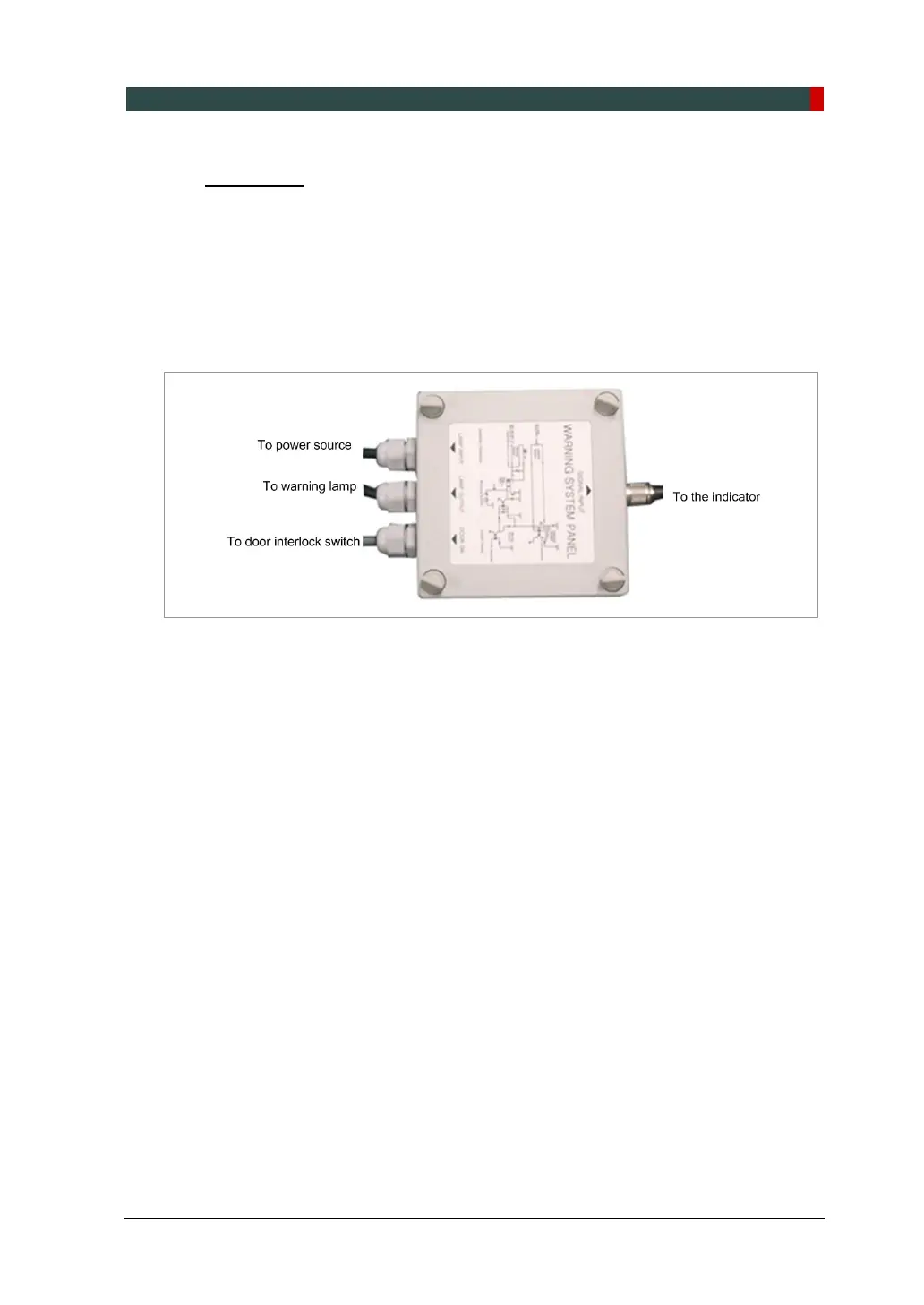

1. Prepare the Warning System Panel (Part No. 28)
2. Install the Warning System Panel at the proper height after taking each cable length
into account.
3. Connect the warning lamp (not provided).
4. Connect the door interlock switch (not provided).
5. Connect the power source for the warning lamp.
