6. Completing Miscellaneous Works
PaX-i Plus / Insight Installation Manual 75
6. Completing Miscellaneous Works
6.1 Assembling Base Cover (Optional)
When removing the semi-transparent tape, be careful not to
scratch the surface of the equipment.

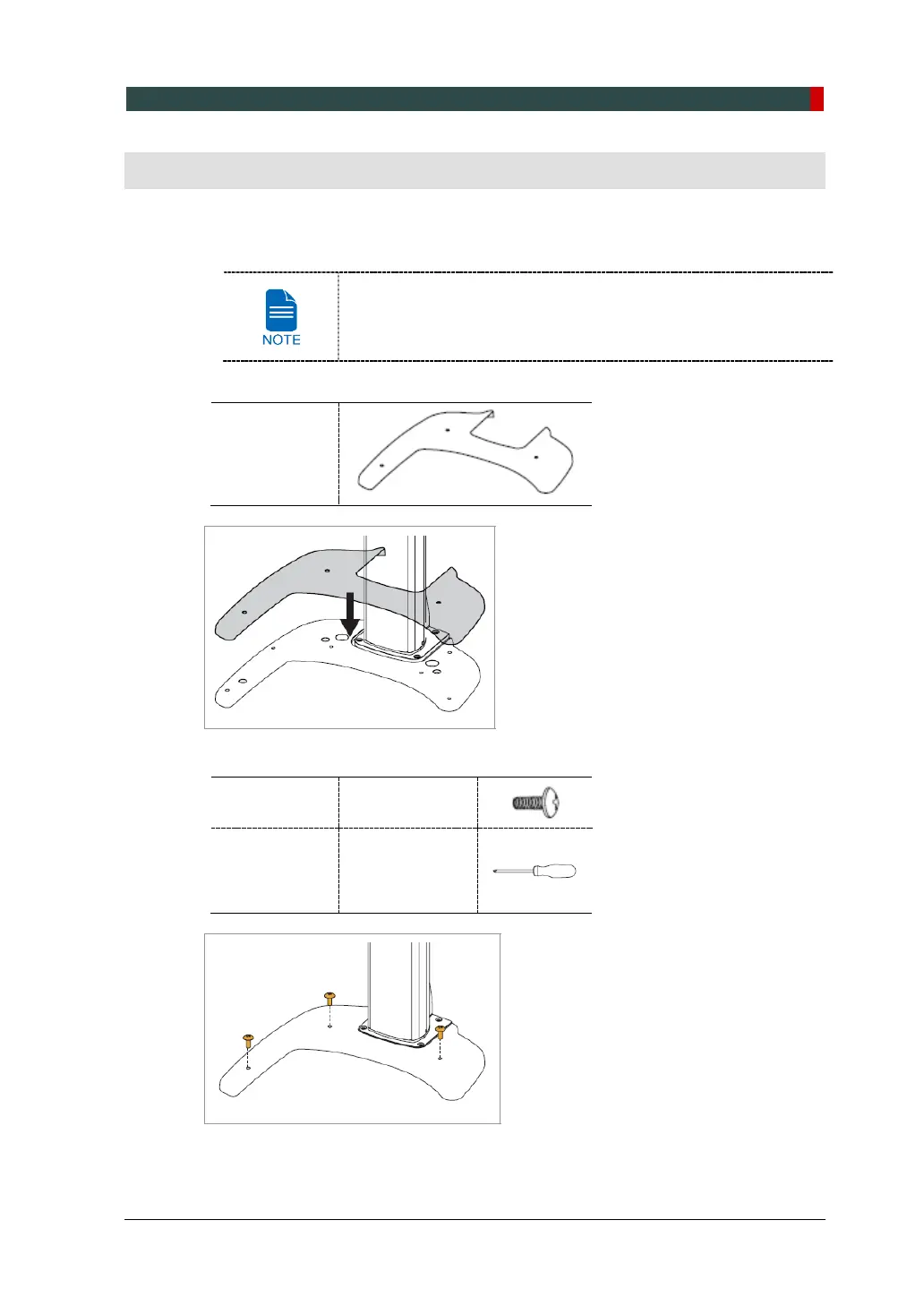

1. Assemble the base cover.
Base Cover
2. Fix the base cover with 3 truss bolts.
Truss Bolt
M5 x 8
(Part No. 26)
Cross Head
Screw Driver
w/ Magnetic
Tip
6 mm / 0.24”
