Appendix A
130 PaX-i Plus / Insight Installation Manual

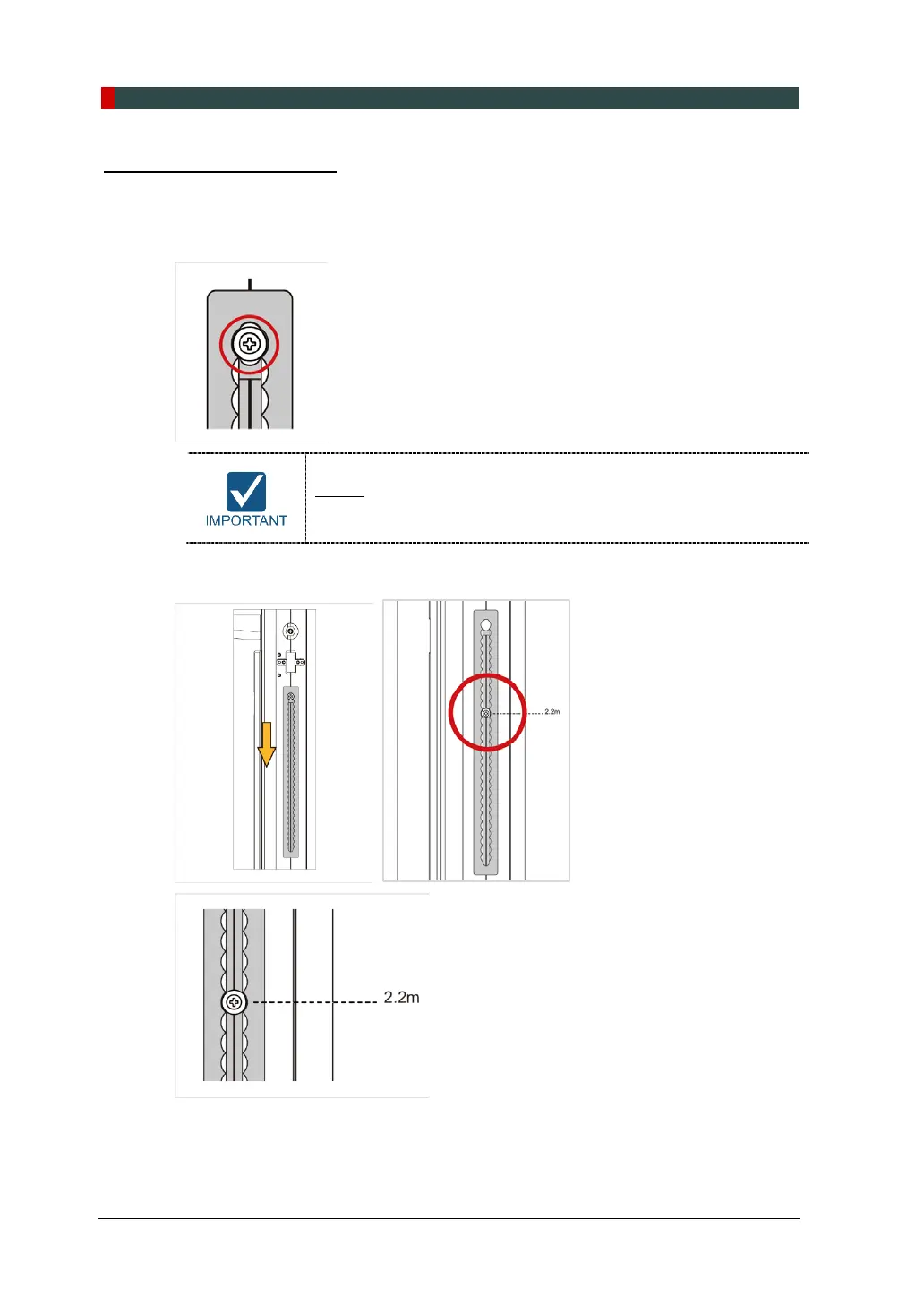

Adjusting the Screw Height
We know the H
screw height
is 220 mm from the previous example. So we will move the screw
from the default (current) position to new one.
1. Loosen two bolts halfway (important!).
Do not unscrew completely the bolt. If not, it could drop into the
column and may cause a big trouble to retrieve it out.
2. Looking up the scale, slide the Limit Block down to new location (H
screw height
= 220 mm)
and fix it back.
3. Put the covers back in reverse order and fix them with the bolts.
